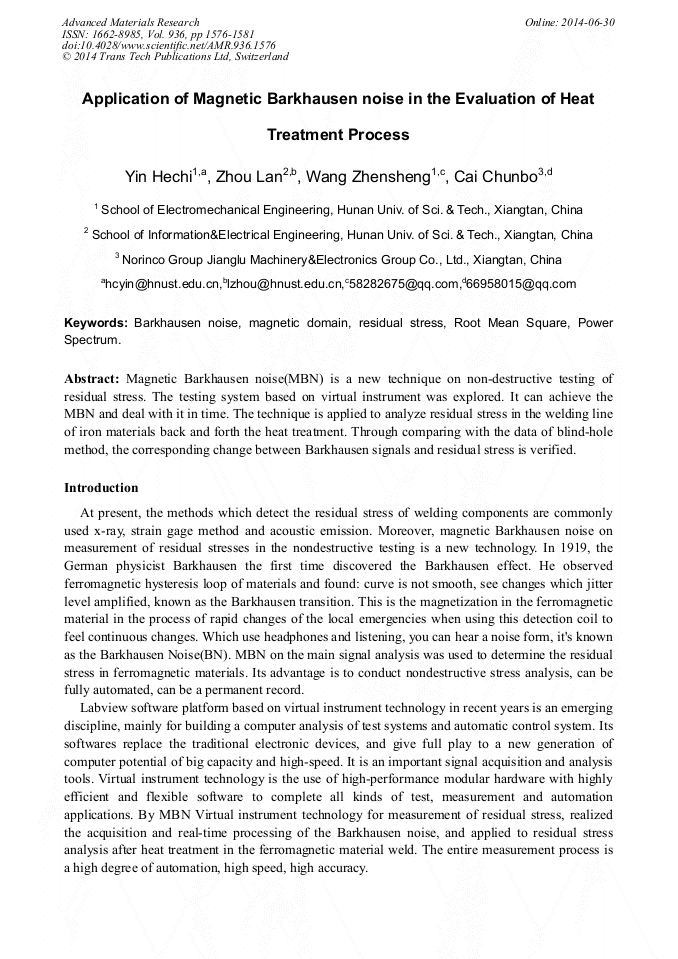

Application of Magnetic Barkhausen Noise in the Evaluation of Heat Treatment Process

Abstract:

Magnetic Barkhausen noise (MBN) is a new technique on non-destructive testing of residual stress. The testing system based on virtual instrument was explored. It can achieve the MBN and deal with it in time. The technique is applied to analyze residual stress in the welding line of iron materials back and forth the heat treatment. Through comparing with the data of blind-hole method, the corresponding change between Barkhausen signals and residual stress is verified.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 1576-1581
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.1576
• Online since: June 2014
• Authors: He Chi Yin*, Lan Zhou, Zhen Sheng Wang, Chun Bo Cai
• Keywords: Barkhausen Noise, Magnetic Domain, Power Spectrum, Residual Stress, Root Mean Square (RMS)

References

[1] W. Zhong. Ferromagnetism[M]. Beijing: Science Press, (1987).

[2] Zhu B, Johnson MJ, Lo CCH, et al. Multifunctional magnetic Barkhausen emission measurement system[J]. IEEE Trans on Magnetics, 2001, 37(3): 20-22.

DOI: 10.1109/20.920482

[3] Qi Xin, Chen Juan, Liu Diankui. Testing magneto-elasticity noise of local magnetization method on residual stress of welding frame[J]. Transaction of the China Welding Institution, 2000, 21(3): 1-4.

[4] Zhu B., Johnson M.J. Multifunctional magnetic Barkhausen emission measurement system[J]. IEEE Transaction on Magnetics, 2001, 37(3): 20-22.

[5] Qi Xin，Hou Zhiling，Tian Jianlong. Relationship between magnetic Barkhausen noise and the stresses, the hardness and the phase content of ferromagnetic materials[J]. Journal of Harbin Institute of Technology, 2005, 12(1): 67-70.

[6] Jiles D. C., Garikepati P., Palmer D. D. Evaluation of residual stress in 300MPa steels using magnetization, Barkhausen effect and X-ray diffraction techniques[C]. Proceedings of the 15th Annual Review of Progress in Quantitative Nondestructive Evaluation, La Jolla, California (USA), 31 Jul. – 5 Aug. (1988).

DOI: 10.1007/978-1-4613-0817-1_264

[7] Yin Hechi, Zhang Guangye, et al. Application of magnetic Barkhausen noise in non-destructive testing fields of residual stress[J]. China Welding, 2007, 16(2): 22-26.

[8] Zhang Yizhi. Design and Realization of Virtual Instrument[M], Xi'an: Xidian University Press, (2002).

[9] Virtual Instrument Laboratory of Tsinghua University Electrical Engineering Department. User Manual of Labview[Z]. Beijing: Beijing Zhong Ke Fan Hua Measurement&Control Technology Co. Ltd., (2000).
