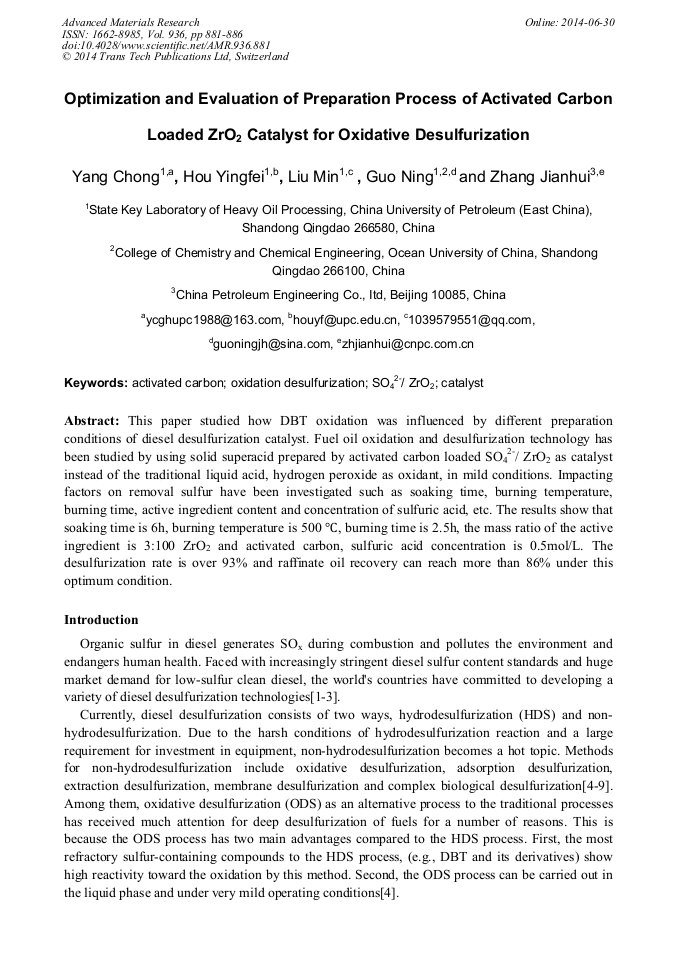

Optimization and Evaluation of Preparation Process of Activated Carbon Loaded ZrO₂ Catalyst for Oxidative Desulfurization

Abstract:

This paper studied how DBT oxidation was influenced by different preparation conditions of diesel desulfurization catalyst. Fuel oil oxidation and desulfurization technology has been studied by using solid superacid prepared by activated carbon loaded SO42-/ ZrO2 as catalyst instead of the traditional liquid acid, hydrogen peroxide as oxidant, in mild conditions. Impacting factors on removal sulfur have been investigated such as soaking time, burning temperature, burning time, active ingredient content and concentration of sulfuric acid, etc. The results show that soaking time is 6h, burning temperature is 500 °C, burning time is 2.5h, the mass ratio of the active ingredient is 3:100 ZrO2 and activated carbon, sulfuric acid concentration is 0.5mol/L. The desulfurization rate is over 93% and raffinate oil recovery can reach more than 86% under this optimum condition.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 881-886
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.881
• Online since: June 2014
• Authors: Chong Yang*, Ying Fei Hou, Min Liu, Ning Guo, Jian Hui Zhang
• Keywords: Activated Carbon, Catalyst, Oxidation Desulfurization, SO₄^2-/ZrO₂

References

[1] C.S. Song, An overview of new approaches to deep desulfurization for ultra-clean gasoline, diesel fuel and jet fuel, J. Catalysis today. 86. 1 (2003) 211-263.

DOI: 10.1016/s0920-5861(03)00412-7

[2] C.S. Song, X.L. Ma, New design approaches to ultra-clean diesel fuels by deep desulfurization and deep dearomatization, J. Applied Catalysis B: Environmental. 41. 1 (2003) 207-238.

DOI: 10.1016/s0926-3373(02)00212-6

[3] D. Shekhawat, T.H. Gardner, D.A. Berry, et al. Catalytic partial oxidation of n-tetradecane in the presence of sulfur or polynuclear aromatics: Effects of support and metal, J. Applied Catalysis A: General. 311 (2006) 8-16.

DOI: 10.1016/j.apcata.2006.05.042

[4] A.M. Dehkordi, Z. Kiaei, M.A. Sobati, Oxidative desulfurization of simulated light fuel oil and untreated kerosene, J. Fuel Processing Technology, 90. 3 (2009) 435-445.

DOI: 10.1016/j.fuproc.2008.11.006

[5] K.M. Dooley, D.X. Liu, A.M. Madrid, F.C. Knopf, Oxidative desulfurization of diesel with oxygen: Reaction pathways on supported metal and metal oxide catalysts, J. Applied Catalysis A: General. 468(2013) 143-149.

DOI: 10.1016/j.apcata.2013.08.013

[6] J. Chaichanawong, T. Yamamoto, T. Ohmori, Adsorptive desulfurization of bioethanol using activated carbon loaded with zinc oxide, J. Chemical Engineering Journal. 165. 1 (2010) 218-224.

DOI: 10.1016/j.cej.2010.09.020

[7] J.L. Wang, D.S. Zhao, E.P. Zhou, Z. Dong, Desulfurization of gasoline by extraction with N-alkyl-pyridinium-based ionic liquids, J. Journal of fuel chemistry and technology. 35. 3 (2007) 293-296.

DOI: 10.1016/s1872-5813(07)60022-x

[8] L.G. Lin, G. Wang, H.M. Q, J.R. Yang, Y.F. Wang, D.Q. Shi, Y. Kong, Pervaporation performance of crosslinked polyethylene glycol membranes for deep desulfurization of FCC gasoline, J. Journal of membrane science. 280. 1 (2006) 651-658.

DOI: 10.1016/j.memsci.2006.02.022

[9] Y.F. Hou, Y. Kong, J.R. Yang, Biodesulfurization of dibenzothiophene by immobilized cells of pseudomonas stutzeri UP-1, J. Fuel. 84 (2005) 1975-(1979).

DOI: 10.1016/j.fuel.2005.04.004

[10] .

[10] L.A. Gonzalez, P. Kracke, W.H. Green, Oxidative desulfurization of middle-distillate fuels using activated carbon and power ultrasound, J. Energy & Fuels. 26. 8 (2012) 5164-5176.

DOI: 10.1021/ef201289r

[11] D. Wang, E.W. Qian, H. Amano, Oxidative desulfurization of fuel oil: Part I. Oxidation of dibenzothiophenes using tert-butyl hydroperoxide, J. Applied Catalysis A: General. 253 (2003) 91-99.

DOI: 10.1016/s0926-860x(03)00528-3

[12] M. Sersdych, C.T. Wu, P. Brender, Role of phosphorus in carbon matrix in desulfurization of diesel fuel using adsorption process, J. Fuel. 92 (2012) 318-326.

DOI: 10.1016/j.fuel.2011.08.007

[13] J.L. Wang, D.S. Zhao, K.X. Li, Oxidative desulfurization of dibenzothiophene using ozone and hydrogen peroxide in ionic liquid, J. Energy & Fuels. 24. 4 (2010) 2527-2529.

DOI: 10.1021/ef901324p

[14] G.X. Yu, S.X. Lu, H. Chen, Z.N. Zhu, Oxidative desulfurization of diesel fuels with hydrogen peroxide in the presence of activated carbon and formic acid, J. Energy & Fuels. 19. 2 (2005) 447-452.

DOI: 10.1021/ef049760b

[15] A. Jatia, C. Chang, J.D. Macleod, ZrO2 promoted with sulfate, iron and manganese: a solid superacid catalyst capable of low temperaturen-butane isomerization, J. Catalysis letters. 25 (1994) 21-28.

DOI: 10.1007/bf00815411

[16] S. Furuta, H. Matsuhashi, K. Arata, Biodiesel fuel production with solid superacid catalysis in fixed bed reactor under atmospheric pressure, J. Catalysis communications. 5. 12 (2004) 721-723.

DOI: 10.1016/j.catcom.2004.09.001
