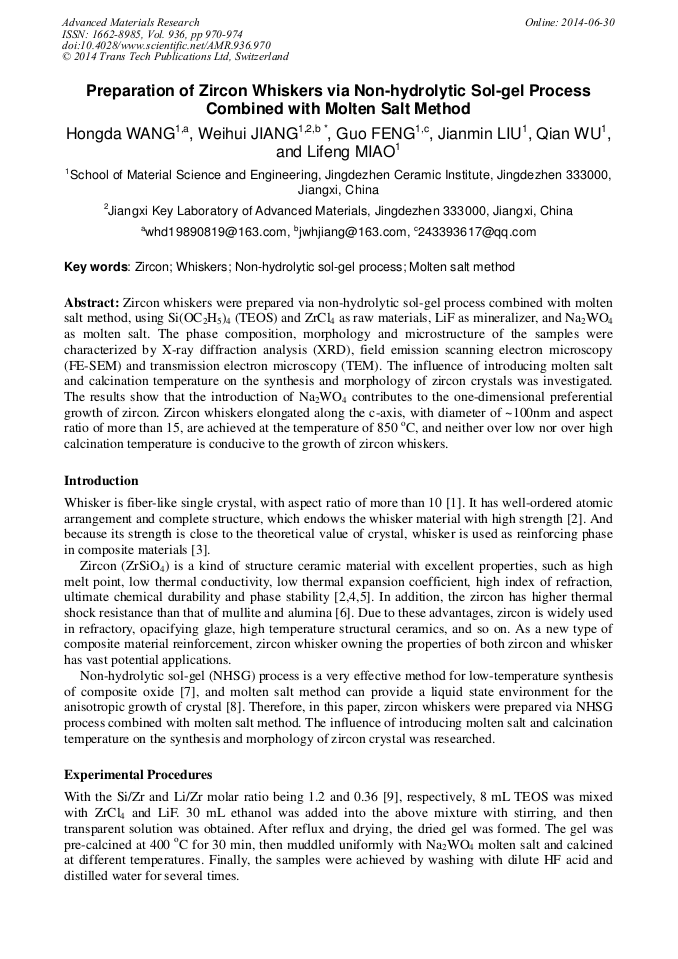

Preparation of Zircon Whiskers via Non-Hydrolytic Sol-Gel Process Combined with Molten Salt Method

Abstract:

Zircon whiskers were prepared via non-hydrolytic sol-gel process combined with molten salt method, using Si (OC₂H₅)₄ (TEOS) and ZrCl₄ as raw materials, LiF as mineralizer, and Na₂WO₄ as molten salt. The phase composition, morphology and microstructure of the samples were characterized by X-ray diffraction analysis (XRD), field emission scanning electron microscopy (FE-SEM) and transmission electron microscopy (TEM). The influence of introducing molten salt and calcination temperature on the synthesis and morphology of zircon crystals was investigated. The results show that the introduction of Na₂WO₄ contributes to the one-dimensional preferential growth of zircon. Zircon whiskers elongated along the c-axis, with diameter of ~100nm and aspect ratio of more than 15, are achieved at the temperature of 850 °C, and neither over low nor over high calcination temperature is conducive to the growth of zircon whiskers.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 970-974
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.970
• Online since: June 2014
• Authors: Hong Da Wang, Wei Hui Jiang*, Guo Feng, Jian Min Liu, Qian Wu, Li Feng Miao
• Keywords: Molten Salt Method, Non-Hydrolytic Sol-Gel Process, Whiskers, Zircon

References

[1] C. C. Evans, Whiskers, Mills and Boon, London, (1972).

[2] W. Li, Inorganic Whisker (In Chinese), Chemistry and applied chemistry Press, Beijing, (2005).

[3] G. L. Converse, T. L. Conrad, C. H. Merrill, and R. K. Roeder, Hydroxyapatite whisker-reinforced polyetherketoneketone bone ingrowth scaffolds, Acta biomaterialia. 6 (2010) 856-863.

DOI: 10.1016/j.actbio.2009.08.004

[4] M. Shoyama, N. Matsumoto, T. Hashimoto, H. Nasu, and K. Kamiya, Sol–gel synthesis of zircon–effect of addition of lithium ions, J. Mater. Sci. 33 (1998) 4821-4828.

DOI: 10.1023/a:1004478229360

[5] P. Tartaj, Zircon formation from nanosized powders obtained by a reverse micelle process, J. Am. Ceram. Soc. 88 (2005) 222–224.

DOI: 10.1111/j.1551-2916.2004.00021.x

[6] T. Mori, H. Yamamura, H. Kobayashi, T. Mitamura, Preparation of high-purity ZrSiO4 powder using sol–gel processing and mechanical properties of the sintered body, J. Am. Ceram. Soc. 75 (1992) 2420-2426.

DOI: 10.1111/j.1151-2916.1992.tb05594.x

[7] Y. Dimitriev, Y. Ivanova, and R. Iordanova, History of sol-gel science and technology, Journal of UCTM. 43 (2008) 181-192.

[8] J. F. Hou, Z. J. Wu, Y. T. Wang, and M. F. Bi, Research progress in preparation of anisometric single-crystal particles by molten salt synthesis method (In Chinese), China Ceramics. 2 (2012) 1-3.

[9] W. H. Jiang, T. Zhang, Q. X. Zhu, and J. M. Liu, Effect of non-hydrolytic gelation process on synthesis of zircon at low temperature (In Chinese), J. Chin. Ceram. Soc. 39 (2011) 383-386.

[10] N. Jiang, J. C. Spence, Radiation damage in zircon by high-energy electron beams, J. Appl. Phys. 105 (2009) 123517.

DOI: 10.1063/1.3151704
