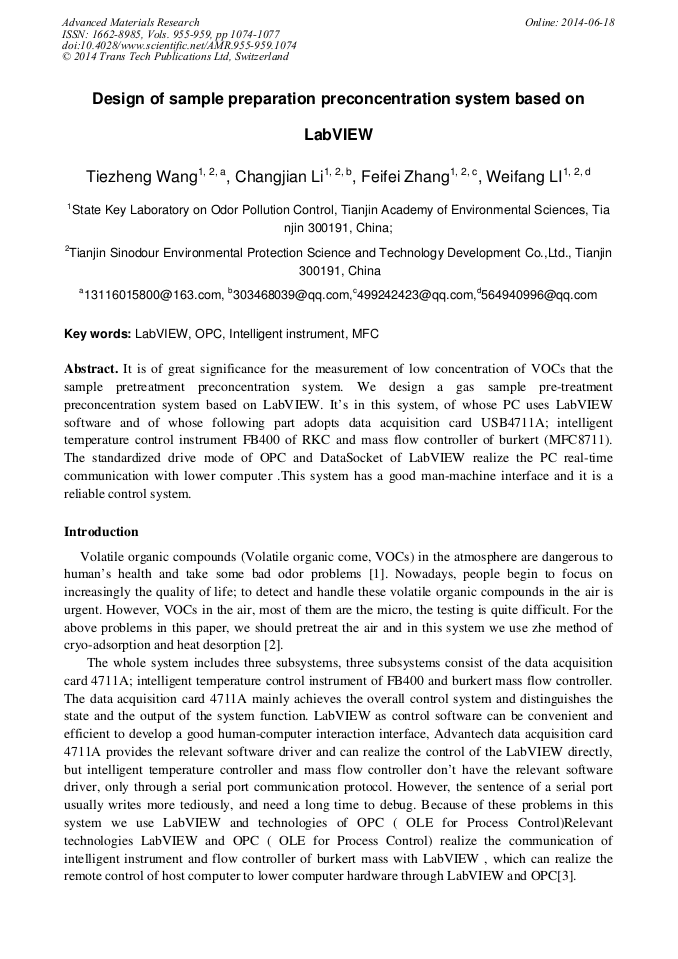

Design of Sample Preparation Preconcentration System Based on LabVIEW

Abstract:

It is of great significance for the measurement of low concentration of VOCs that the sample pretreatment preconcentration system. We design a gas sample pre-treatment preconcentration system based on LabVIEW. It’s in this system, of whose PC uses LabVIEW software and of whose following part adopts data acquisition card USB4711A; intelligent temperature control instrument FB400 of RKC and mass flow controller of burkert (MFC8711). The standardized drive mode of OPC and DataSocket of LabVIEW realize the PC real-time communication with lower computer .This system has a good man-machine interface and it is a reliable control system. This system can realize the real-time display and control of parameters such as temperature, flow, and also realize the running condition of all equipments control and alarm function.

• Periodical: Advanced Materials Research (Volumes 955-959)
• Pages: 1074-1077
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.955-959.1074
• Online since: June 2014
• Authors: Tie Zheng Wang, Chang Jian Li, Fei Fei Zhang, Wei Fang Li
• Keywords: Intelligent Instrument, LabVIEW, MFC, OPC

References

[1] Laowagul W, Yoshizumi K. Atmospheric Environment, 2009, 43(12): 2052~(2059).

[2] Chien Y C, Yin K G. Joural of Environmental Monitoring, 2009, 11(5): 1013~1019.

[3] Plass-Dulmer C, Michl K, Ruf R, Berresheim H.J. Chromatogr. A, 2002, 953(1-2): 175~197.

[4] C. T, Lin et al. Temperature control of rapid thermal processing system using adaptive fuzzy network. Fuzzy Sets and Systems. (1999).

DOI: 10.1016/s0165-0114(97)00178-4

[5] Ziegler，J. G and Nichols N.B. Optimum settings for automatic controllers [J]. Transactions of the ASME, 1942, 64: 759-768.

DOI: 10.1115/1.4019269
