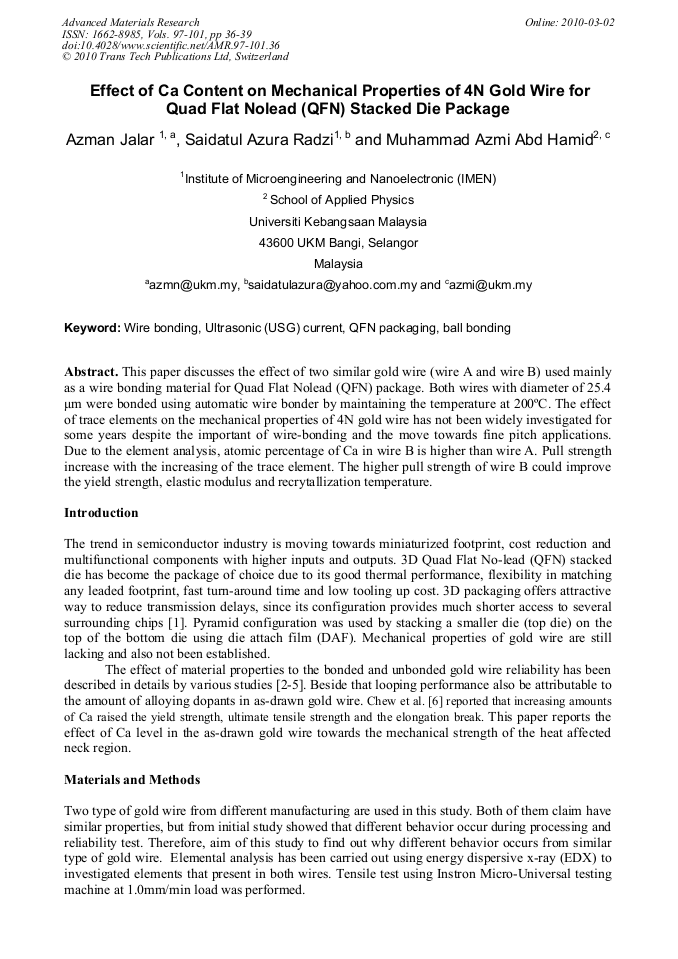

Effect of Ca Content on Mechanical Properties of 4N Gold Wire for Quad Flat Nolead (QFN) Stacked Die Package

Abstract:

This paper discusses the effect of two similar gold wire (wire A and wire B) used mainly as a wire bonding material for Quad Flat Nolead (QFN) package. Both wires with diameter of 25.4 μm were bonded using automatic wire bonder by maintaining the temperature at 200°C. The effect of trace elements on the mechanical properties of 4N gold wire has not been widely investigated for some years despite the important of wire-bonding and the move towards fine pitch applications. Due to the element analysis, atomic percentage of Ca in wire B is higher than wire A. Pull strength increase with the increasing of the trace element. The higher pull strength of wire B could improve the yield strength, elastic modulus and recrytallization temperature.

• Periodical: Advanced Materials Research (Volumes 97-101)
• Pages: 36-39
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.97-101.36
• Online since: March 2010
• Authors: Azman Jalar, Saidatul Azura Radzi, Muhammad Azmi Abd Hamid
• Keywords: Ball Bonding, QFN Packaging, Ultrasonic (USG) Current, Wire Bonding

References

[1] A. Jalar, S. A. Radzi, S. Abdullah, M. F. M. Yunoh And M. F. Rosle: Effect of mechanical properties of gold wire on looping behavior and pull strength for QF� Stacked Die Package. Proceedings of the 4 th WSEAS International Conference on Applied and Theoretical Mechanics (Mechanics '08) Cairo, Egypt (2008).

[2] S.W. Han, H.W. Lee, J.Y. Kim, , J.H. Kim, , C. S. Oh, and S.H. Choa,: Mechanical Properties Of Au Thin Film For Application In Mems/Nens Using Microtensile Test, " Current Applied Physic 6S1 pp.81-85 (2006).

DOI: 10.1016/j.cap.2006.01.017

[3] K.S. Kim, J.Y. Song, E. K. Chung, J.K. Park, and S.H. Hong: Relation between Mechanical Properties and Microstructure af Ultra-Fine Gold Bonding Wires, Mechanics of Material 38, 119-127 (2006).

DOI: 10.1016/j.mechmat.2005.05.015

[4] L. Hao, S. H. Ong, & L.C. Tang: Robust Loop Parameter for Ball �eck Strength Enhancement, Proc. IEEE/CPMT Electronics Packaging Technology Conference, p.313317(1998).

[5] G. G. Harman: Wire Bonding in Microelectronics: Materials, Process, Reliability and Yield, 2nd Edition, McGraw-Hill (1997).

[6] Y. H. Chew, C.C. Wong, C.D. Breach, F. Wulff, & S. Mhaisalkar: Effects of Calcium on the Mechanical Properties of Ultra-Fine Grained Gold Wires, Journal Of Alloys And Compounds. 415, pp.193-197 (2006).

DOI: 10.1016/j.jallcom.2005.08.020

[7] F. Wulff, C.D. Breach, Strengthening of Au bonding Wires by Key Dopants, Internal K&S R and D report (2002).

[8] D. S. Liu and Y. C. Chau. Effect of Dopant, Temperature And Strain Rate on the Mechanical Properties of Micrometer Gold Bonding Wire, Journal of electronic materials, Vol 32, No. 3 (2003).

DOI: 10.1007/s11664-003-0187-y

[9] Saraswati, T. Sritharan, C. D. Breach, F. Wulff, S. G. Mhaisalkar. Mechanical Properties and Microstructure of Ca-Doped Gold Bonding Wire, Electronics Packaging Technology, 5 th Conference. 569-573 (2003).

DOI: 10.1109/eptc.2003.1271585

[10] A.K. Yahya, L. H. Ling & T. L. Hoe: Reliability Improvement in Low Loop �ailhead Wirebonding for Long Au Wire in a High Stress Encapsulate Material, Electronics Packaging Technology, 6th Conference. Pp. 707- 710, 8-10 (2004).

DOI: 10.1109/eptc.2004.1396699
