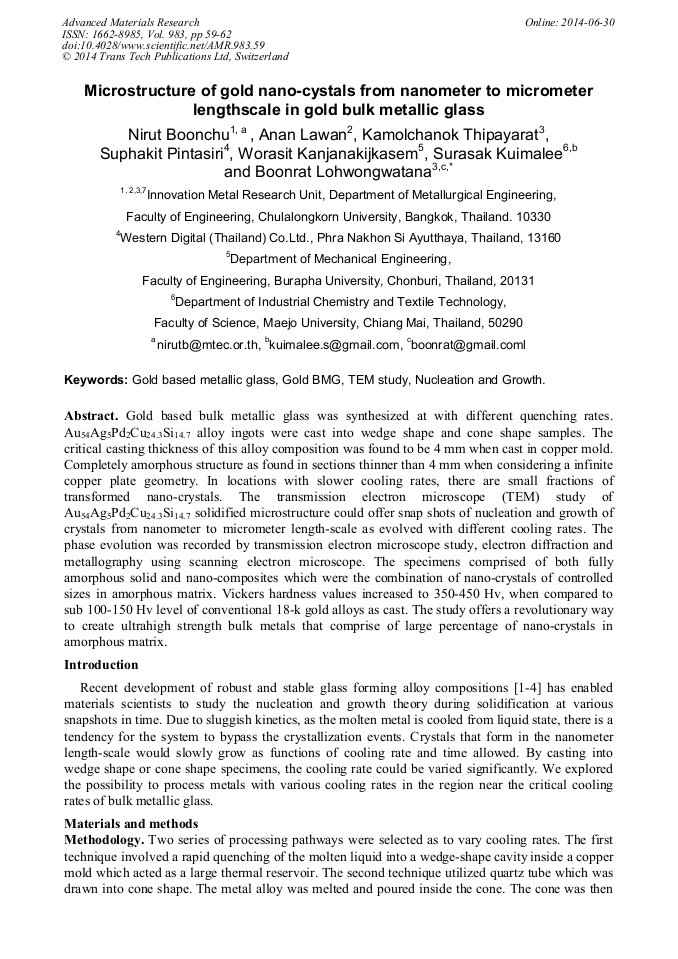

Microstructure of Gold Nano-Crystals from Nanometer to Micrometer Lengthscale in Gold Bulk Metallic Glass

Abstract:

Gold based bulk metallic glass was synthesized at with different quenching rates. Au₅₄Ag₅Pd₂Cu_24.3Si_14.7 alloy ingots were cast into wedge shape and cone shape samples. The critical casting thickness of this alloy composition was found to be 4 mm when cast in copper mold. Completely amorphous structure as found in sections thinner than 4 mm when considering a infinite copper plate geometry. In locations with slower cooling rates, there are small fractions of transformed nanocrystals. The transmission electron microscope (TEM) study of Au₅₄Ag₅Pd₂Cu_24.3Si_14.7 solidified microstructure could offer snap shots of nucleation and growth of crystals from nanometer to micrometer length-scale as evolved with different cooling rates. The phase evolution was recorded by transmission electron microscope study, electron diffraction and metallography using scanning electron microscope. The specimens comprised of both fully amorphous solid and nanocomposites which were the combination of nano-crystals of controlled sizes in amorphous matrix. Vickers hardness values increased to 350-450 Hv, when compared to sub 100-150 Hv level of conventional 18-k gold alloys as cast. The study offers a revolutionary way to create ultrahigh strength bulk metals that comprise of large percentage of nano-crystals in amorphous matrix.

• Periodical: Advanced Materials Research (Volume 983)
• Pages: 59-62
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.983.59
• Online since: June 2014
• Authors: Nirut Boonchu, Anan Lawan, Kamolchanok Thipayarat, Suphakit Pintasiri, Worasit Kanjanakijkasem, Surasak Kuimalee, Boonrat Lohwongwatana*
• Keywords: Gold Based Metallic Glass, Gold BMG, Growth, Nucleation, TEM Study

References

[1] Schroers J, Lohwongwatana B, Johnson WL, Peker A. Gold based bulk metallic glass. Applied Physics Letters 2005; 87: 061912.

DOI: 10.1063/1.2008374

[2] Wei BC, Loser W, Xia L, Roth S, Pan M, Wang WH, et al. Anomalous thermal stability of Nd-Fe-Co-Al bulk metallic glass. Acta Materialia 2002; 50: 4357-67.

DOI: 10.1016/s1359-6454(02)00272-0

[3] Wang WH, Lewandowski JJ, Greer AL. Understanding the glass-forming ability of Cu50Zr50 alloys in terms of a metastable eutectic. Journal of Materials Research 2005; 20: 2307-13.

DOI: 10.1557/jmr.2005.0302

[4] Schroers J, Lohwongwatana B, Johnson WL, Peker A. Precious bulk metallic glasses for jewelry applications. Materials Science and Engineering a-Structural Materials Properties Microstructure and Processing 2007; 449: 235-8.

DOI: 10.1016/j.msea.2006.02.301

[5] Lohwongwatana B, Schroers J, Johnson WL. Strain rate induced crystallization in bulk metallic glass-forming liquid. Phys Rev Lett 2006; 96: 075503.

DOI: 10.1103/physrevlett.96.075503

[6] Lohwongwatana B. Development, characterization, and applications of gold and platinum bulk metallic glasses. (2007).
