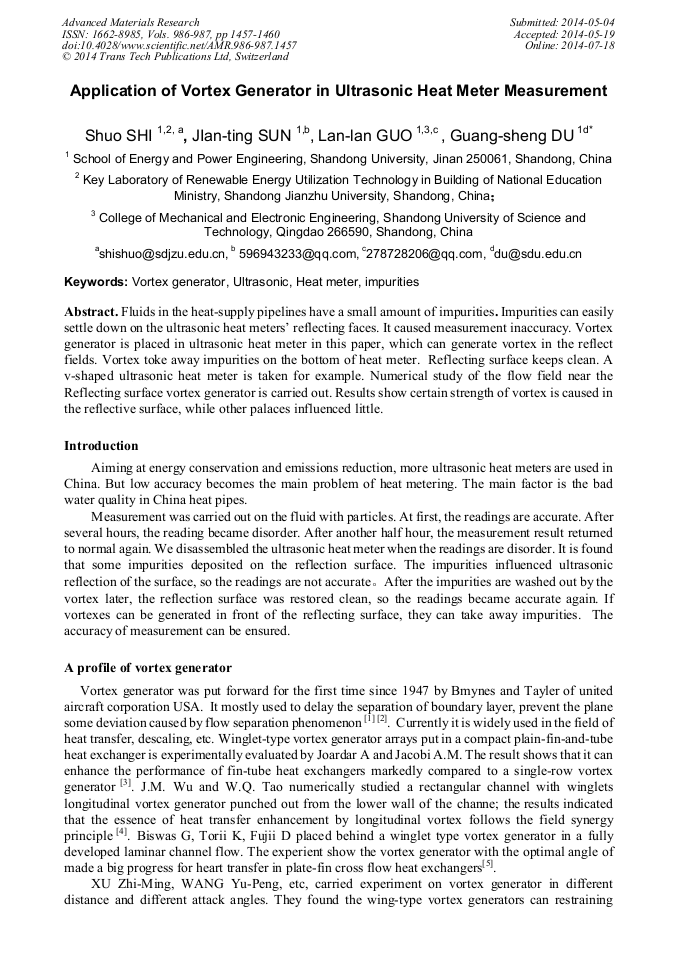

Application of Vortex Generator in Ultrasonic Heat Meter Measurement

Abstract:

Fluids in the heat-supply pipelines have a small amount of impurities. Impurities can easily settle down on the ultrasonic heat meters’ reflecting faces. It caused measurement inaccuracy. Vortex generator is placed in ultrasonic heat meter in this paper, which can generate vortex in the reflect fields. Vortex toke away impurities on the bottom of heat meter. Reflecting surface keeps clean. A v-shaped ultrasonic heat meter is taken for example. Numerical study of the flow field near the Reflecting surface vortex generator is carried out. Results show certain strength of vortex is caused in the reflective surface, while other palaces influenced little.

• Periodical: Advanced Materials Research (Volumes 986-987)
• Pages: 1457-1460
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.986-987.1457
• Online since: July 2014
• Authors: Shuo Shi, Jian Ting Sun, Lan Lan Guo, Guang Sheng Du*
• Keywords: Heat Meter, Impurities, Ultrasonic, Vortex Generator

References

[1] Johnston J P, Nishi M. Vortex generator jets-means for flow separation control [J]. AIAA journal, 1990, 28(6): 989-994.

DOI: 10.2514/3.25155

[2] Bons J P, Sondergaard R, Rivir R B. Turbine separation control using pulsed vortex generator jets [J]. Journal of Turbomachinery, 2001, 123(2): 198-206.

DOI: 10.1115/1.1350410

[3] Joardar A, Jacobi A M. Heat transfer enhancement by winglet-type vortex generator arrays in compact plain-fin-and-tube heat exchangers [J]. International journal of refrigeration, 2008, 31(1): 87-97.

DOI: 10.1016/j.ijrefrig.2007.04.011

[4] B Wu J M, Tao W Q. Numerical study on laminar convection heat transfer in a rectangular channel with longitudinal vortex generator. Part A: Verification of field synergy principle [J]. International Journal of Heat and Mass Transfer, 2008, 51(5): 1179-1191.

DOI: 10.1016/j.ijheatmasstransfer.2007.03.032

[5] Biswas G, Torii K, Fujii D, et al. Numerical and experimental determination of flow structure and heat transfer effects of longitudinal vortices in a channel flow [J]. International Journal of Heat and Mass Transfer, 1996, 39(16): 3441-3451.

DOI: 10.1016/0017-9310(95)00398-3

[6] XU Zhi-Ming, WANG Yu-Peng, LIU Zuo-Dong, ZHANG Yi-Long. Experiment and Investigation on the Characteristic of Restraining Fouling of Wing -Type vortex Generators [J]. Journal of engineering thermophysics, 2012, 33(11): 1936-1939. In Chinese.

[7] ZHANG Zhong-Bin, LI Xing-Chan, GAO Ying-Lun，ZHANG Yu-Feng. Experimental study of influence of the vortex generator on CaCO3 fouling characteristic[J]，Journal of Northeast Dianli, 2010, 30(4): 7-10. In Chinese.
