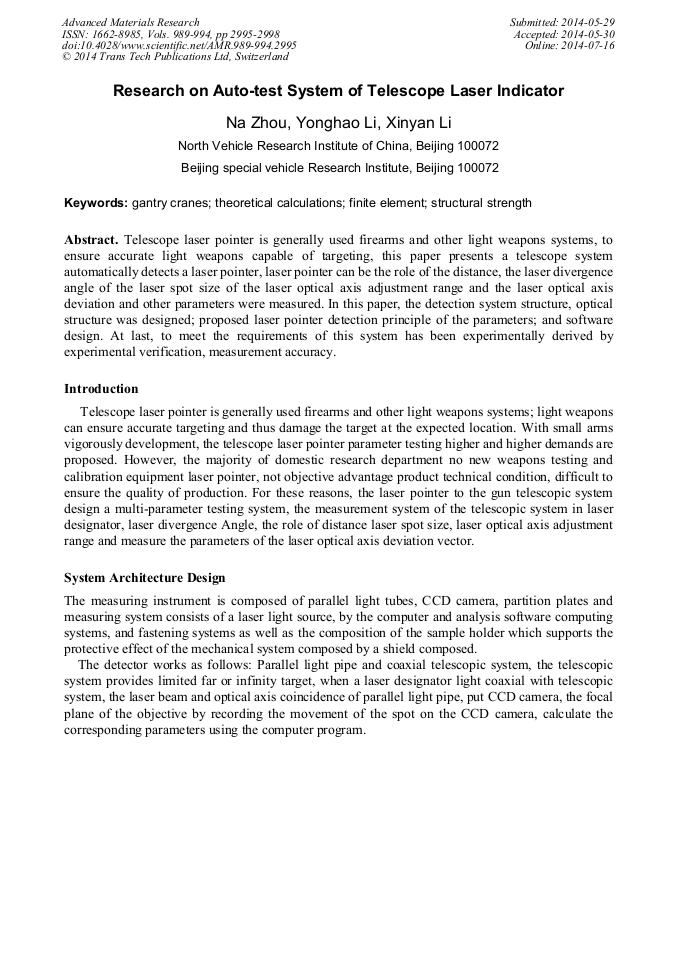

Research on Auto-Test System of Telescope Laser Indicator

Abstract:

Telescope laser pointer is generally used firearms and other light weapons systems, to ensure accurate light weapons capable of targeting, this paper presents a telescope system automatically detects a laser pointer, laser pointer can be the role of the distance, the laser divergence angle of the laser spot size of the laser optical axis adjustment range and the laser optical axis deviation and other parameters were measured. In this paper, the detection system structure, optical structure was designed; proposed laser pointer detection principle of the parameters; and software design. At last, to meet the requirements of this system has been experimentally derived by experimental verification, measurement accuracy.

• Periodical: Advanced Materials Research (Volumes 989-994)
• Pages: 2995-2998
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.989-994.2995
• Online since: July 2014
• Authors: Na Zhou*, Yong Hao Li, Xin Yan Li
• Keywords: Finite Element, Gantry Cranes, Structural Strength, Theoretical Calculations

References

[1] Hui Wang, Huiping Gu. Research dual probe laser divergence angle measurement system. Harbin Institute of Technology. 2006. 6.

[2] Shanshan Gong, Yuegang Fu. Laser beam divergence angle measurement. Changchun University of Technology. 2009. 3.

[3] Guanqun Tang. Comparison of several laser spot center location algorithm. Beijing Institute of Machinery. 2009. 3, 24 (1) : 61-64.

[4] Bing Shun, Zhao Wang, Yushan Tan. Based circle fitting laser spot detection algorithm. Infrared and Laser Engineering. 2002. 6, 31 (3) : 275-279.
