Design and Calculation of a New Type of Elastic Gear Coupling and Finite Element Analysis

Abstract:

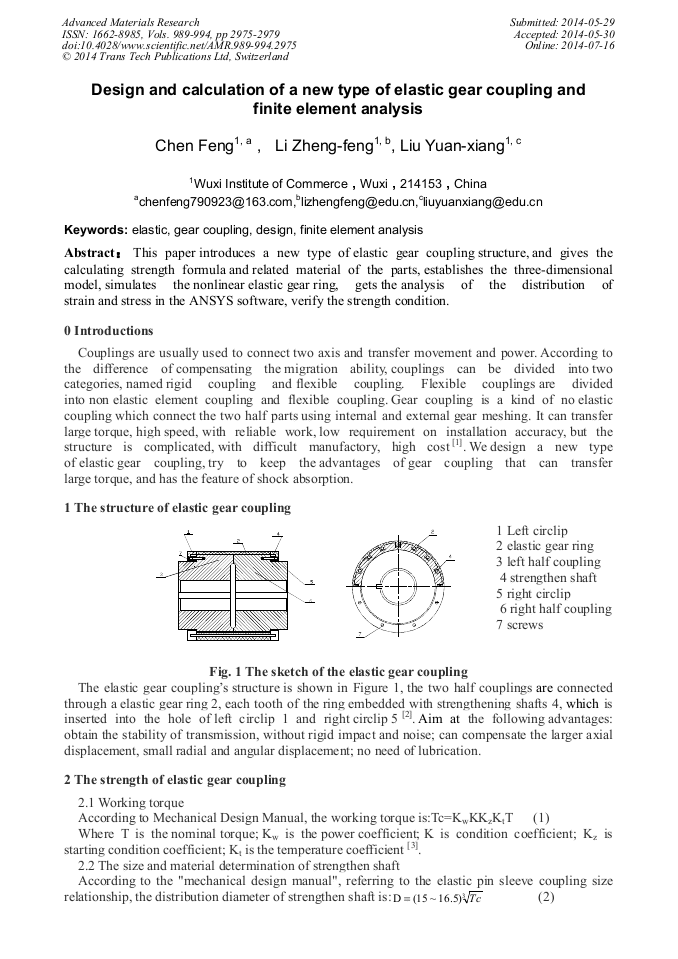

This paper introduces a new type of elastic gear coupling structure, and gives the calculating strength formula and related material of the parts, establishes the three-dimensional model, simulates the nonlinear elastic gear ring, gets the analysis of the distribution of strain and stress in the ANSYS software, verify the strength condition.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 989-994)

Pages:

2975-2979

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.989-994.2975

Citation:

Cite this paper

Online since:

July 2014

Authors:

Feng Chen*, Zheng Feng Li, Yuan Xiang Liu

Keywords:

Design, Elastic, Finite Element Analysis (FEA), Gear Coupling
