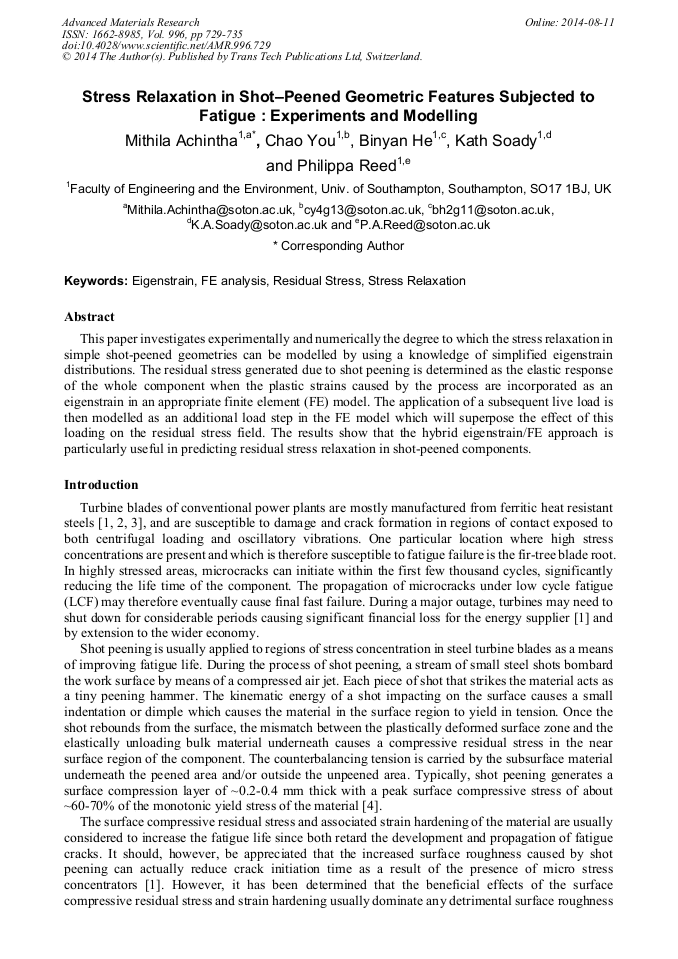

Stress Relaxation in Shot-Peened Geometric Features Subjected to Fatigue: Experiments and Modelling

Abstract:

This paper investigates experimentally and numerically the degree to which the stress relaxation in shot-peened simple geometric features of steel turbine materials can be modelled by using an understanding of simple eigenstrain distributions. The residual stress is determined as the elastic response of whole component when the plastic strains caused by shot peening is incorporated as an eigenstrain in an appropriate finite element (FE) model. The application of a subsequent live load is then modelled as an additional load step in the FE model which will superpose the effect of this loading on the residual stress field. The results show that the eigenstrain approach is particularly useful in predicting residual stress relaxation in shot-peened components.

• Periodical: Advanced Materials Research (Volume 996)
• Pages: 729-735
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.996.729
• Online since: August 2014
• Authors: Mithila Achintha*, Chao You, Bin Yan He, Kath Soady, Philippa Reed
• Keywords: Eigenstrain, FE Analysis, Residual Stress, Stress Relaxation

References

[1] K.A. Soady, B.G. Mellor, J. Shackleton, A. Morris and P.A.S. Reed, The effect of shot peening on notched low cycle fatigue, Materials Sciences and Engineering A. 528(2011) 8579-8558.

DOI: 10.1016/j.msea.2011.08.003

[2] K.A. Soady, B.G. Mellor, G.D. West, G. Harrison, A. Morris and P.A.S. Reed, Evaluating surface deformation and near surface strain hardening resulting from shot peening a tempered martensitic steel and application to low cycle fatigue , Int. J. Fatigue 54 (2013).

DOI: 10.1016/j.ijfatigue.2013.03.019

[3] B. Y. He, K. A. Soady, B. G. Mellor, A. Morris and P. A. S. Reed, Effects of shot peening on short crack growth rate and resulting low cycle fatigue behaviour in low pressure turbine blade material, Materials Science and Technology, 29(7) 788-796.

DOI: 10.1179/1743284713y.0000000230

[4] M.A.S. Torres and H.J.C. Voorwald, An evaluation of shot peening, residual stress and stress relaxation on the fatigue life of AISI 4340 steel, Int. J. Fatigue. 24(2002) 877-886.

DOI: 10.1016/s0142-1123(01)00205-5

[5] M. Achintha and D. Nowell, Eigenstrain modelling of residual stresses generated by laser shock peening. J. Mater. Proces. Techno., 211(2011) 1091-1101.

DOI: 10.1016/j.jmatprotec.2011.01.011

[6] M. Achintha, D. Nowell, K. Shapiro and P.J. Withers, Eigenstrain modelling of residual stress generated by arrays of Laser Shock Peeing shots and determination of the complete stress field using limited strain measurements. Surf. Coat. Technology 216 (2013).

DOI: 10.1016/j.surfcoat.2012.11.027

[7] M. Achintha, D. Nowell, D. Fufari , L. Sackett and M. Bache, Fatigue behaviour of geometric features subjected to laser shock peening: experiments and modelling. Int. J. Fatigue (2013) doi: 10. 1016/j. ijfatigue. 2013. 04. 016.

DOI: 10.1016/j.ijfatigue.2013.04.016

[8] A.M. Korsunsky, G.M. Regino and D. Nowell, Variational eigenstrain analysis of residual stresses in a welded plate, Int. J. Solids Struct. 44 (2006) 4574-4591.

DOI: 10.1016/j.ijsolstr.2006.11.037

[9] M.B. Prime and M.R. Hill, J. Measurement of fiber-scale residual stress variation in a metal–matrix composite, Compos, Mater. 38 (2004) 2079-(2095).

DOI: 10.1177/0021998304045584

[10] K.A. Soady, Reducing conservatism in life assessment approaches: Industrial stream turbine blade to disc interfaces and the shot peening process. EngD Thesis, Univ. of Southampton (2013).
