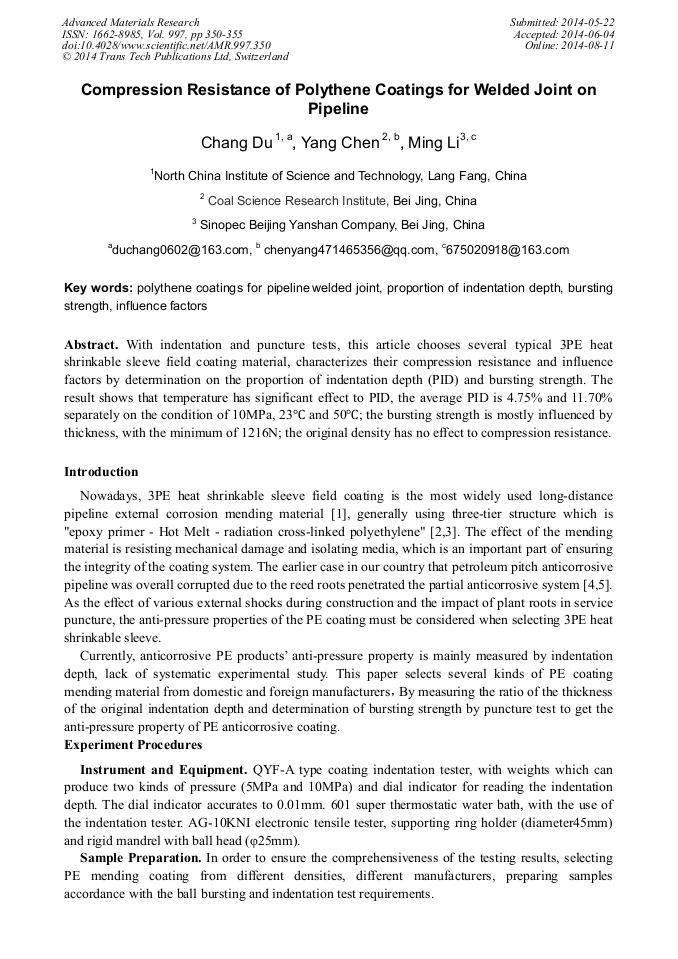

Compression Resistance of Polythene Coatings for Welded Joint on Pipeline

Abstract:

With indentation and puncture tests, this article chooses several typical 3PE heat shrinkable sleeve field coating material, characterizes their compression resistance and influence factors by determination on the proportion of indentation depth (PID) and bursting strength. The result shows that temperature has significant effect to PID, the average PID is 4.75% and 11.70% separately on the condition of 10MPa, 23°C and 50°C; the bursting strength is mostly influenced by thickness, with the minimum of 1216N; the original density has no effect to compression resistance.

You might also be interested in these eBooks

Frontiers of Chemical Engineering, Metallurgical Engineering and Materials III

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 997)

Pages:

350-355

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.997.350

Citation:

Cite this paper

Online since:

August 2014

Authors:

Chang Du*, Yang Chen, Ming Li

Keywords:

Bursting Strength, Influence Factor, Polythene Coatings for Pipeline Welded Joint, Proportion of Indentation Depth

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] ZHAO Jun, HOU Yu, ZHANG Feng. Comparison and Analysis on Technical Specifications and Standards of Pipelines with 3PE Coating: Oil & Gas Storage and Transportation Vol. 28(2009), pp.43-46.

Google Scholar

[2] CHEN Hong-yuan. Failure Reasons of Heat Shrinkable Sleeve for 3PE Pipeline: CORROSION & PROTECTION Vol. 31(2010), pp.154-157.

Google Scholar

[3] ZHAO Ji-shi, HOU Yu, ZHAO Guo-xing. Failure Analysis of Field Joint Coating (FJC) and Suggestion: CORROSION & PROTECTION Vol. 31(2010), pp.812-815.

Google Scholar

[4] WANG Yue. Corrosion Defect Analysis and Repair Measures of Buried Gas Transmission Pipeline: PETROLEUM ENGINEERING CONSTRUCTION Vol. 35(2009), pp.41-44.

Google Scholar

[5] WANG Shuhao, MENG Lipei, XIAO Ming. Analysis on the Corrosion Mechanism of Qinghuangdao-Beijing Oil Pipeline and Corrosion Inspection: Oil & Gas Storage and Transportation (2008), pp.36-39.

Google Scholar
