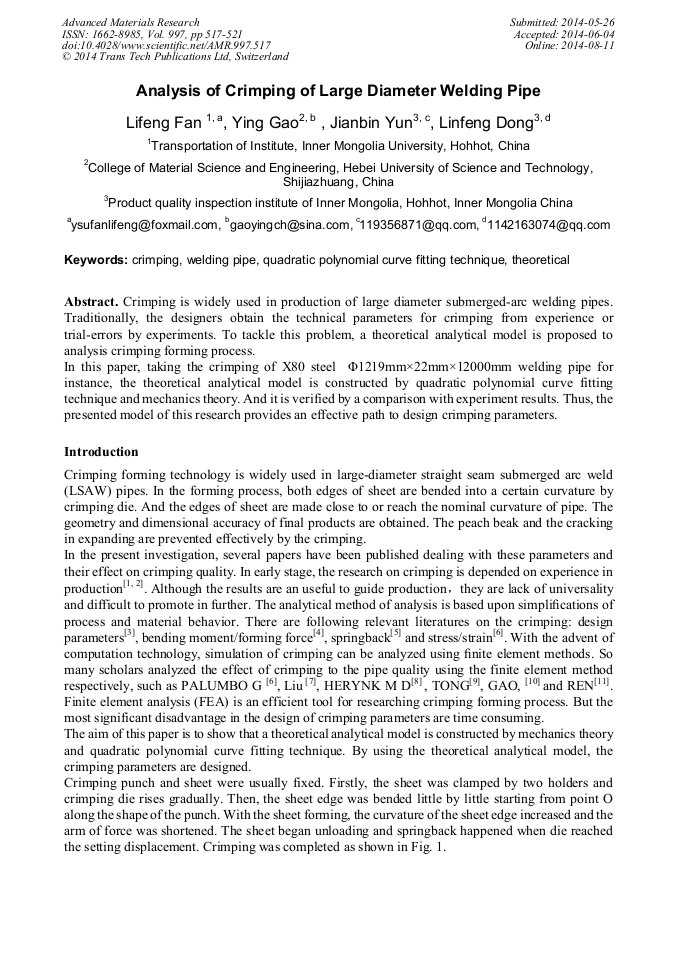

Analysis of Crimping of Large Diameter Welding Pipe

Abstract:

Crimping is widely used in production of large diameter submerged-arc welding pipes. Traditionally, the designers obtain the technical parameters for crimping from experience or trial-errors by experiments. To tackle this problem, a theoretical analytical model is proposed to analysis crimping forming process. In this paper, taking the crimping of X80 steel Φ1219mm×22mm×12000mm welding pipe for instance, the theoretical analytical model is constructed by quadratic polynomial curve fitting technique and mechanics theory. And it is verified by a comparison with experiment results. Thus, the presented model of this research provides an effective path to design crimping parameters.

• Periodical: Advanced Materials Research (Volume 997)
• Pages: 517-521
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.997.517
• Online since: August 2014
• Authors: Li Feng Fan*, Ying Gao, Jian Bin Yun, Lin Feng Dong
• Keywords: Crimping, Quadratic Polynomial Curve Fitting Technique, Theoretical, Welding Pipe

References

[1] Hong Li. Prebending process of longitudinal submerged arc welding production line [J]. Welding Pipe and Tube, 2006, 29(1): 55-57(In Chinese).

[2] Zhimin 3Xie, Jinming Xia. Prebending process parameter design of longitudinal submerged arc welding pipe [J]. Welding Pipe and Tube, 2007, 30(3): 52-54(In Chinese).

[3] Shiyan Zhao. Study on quality control strategy and simulation system development of UOE pipe forming[D], Yanshan university 2010(In Chinese).

[4] Qiang Yang. Springback analytic and process parameters optimization of plate edge preflex for the forming of large diameter longitudinal seam welded pipe[D], Yanshan university 2012(In Chinese).

[5] Lifeng Fan, Ying Gao, Qiang Li, Hongshen Xu, Quality Control on Crimping of Large Diameter Welding Pipe. Chinese Jounal of Mechanical Engineering [J]. 2012, 25(6): 1264-1273.

DOI: 10.3901/cjme.2012.06.1264

[6] G. Palumbo, L Tricarico. Effect of forming and calibration operations on the final shape of large diameter welded tubes. Journal of Materials Processing Technology, 2005, 164~165(5): 1089-1098.

DOI: 10.1016/j.jmatprotec.2005.02.150

[7] Jinglei Liu, Kcjian Huang, Feng Ruan. Effects of the parameters of prebending on O-forming of pipe in UOE process [J]. Journal of Plasticity Engineering, 2005, 12(3): 72-75(In Chinese).

[8] M. D. Herynk, S. Kyriakider, A Onoufriou, et al. Effects of the UOE/UOC pipe manufacturing processes on pipe collapse pressure. International Journal of Mechanical Sciences, 2007, 49(5): 533-553.

DOI: 10.1016/j.ijmecsci.2006.10.001

[9] Xiaogang Tong. Study on groove shape and the open angle of end tab of UOE pipe [D], 2008(In Chinese).

[10] Ying Gao, Qiang Li, Lifeng Fan. Finite element analysis of JCO forming process for longitudinal seam submerged arc welded pipes[J]. Journal of Modelling, Identification and Control, 2010, 11(3/4): 2.

DOI: 10.1504/ijmic.2010.037036

[11] Qiang Ren, Dayong LI, Tianxia Zhou, et al. The simulation of UOE pipe forming by three-dimensional finite element method[J]. Journal of Netshape Forming Engineering, 2011, 3(6): 80-84(In Chinese).
