450°C Stress Rupture Properties of a Non-Quenched and Tempered Steel MFT8

Abstract:

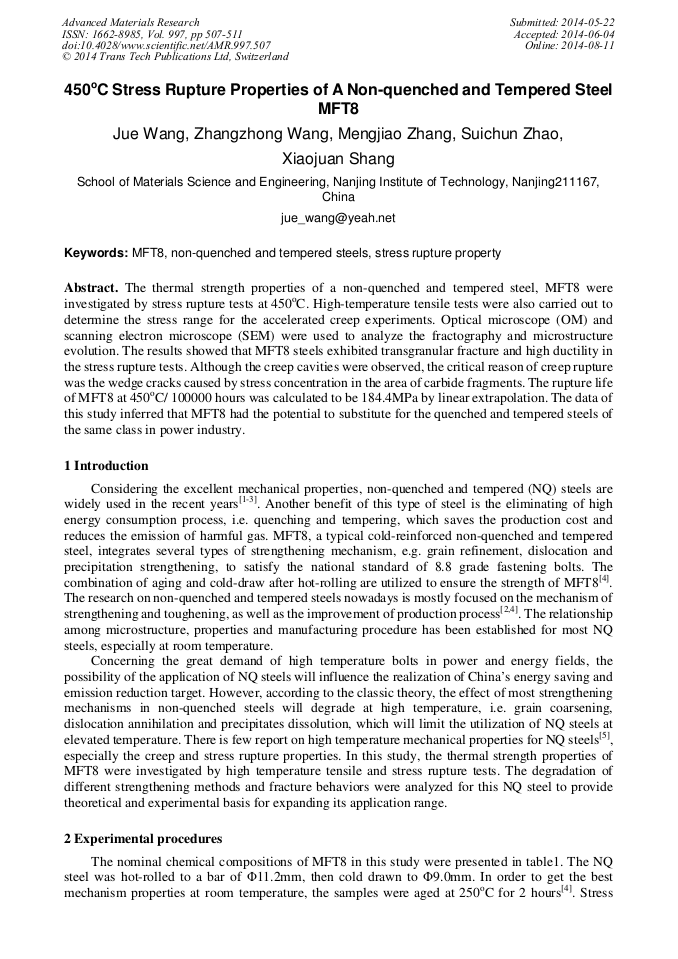

The thermal strength properties of a non-quenched and tempered steel, MFT8 were investigated by stress rupture tests at 450°C. High-temperature tensile tests were also carried out to determine the stress range for the accelerated creep experiments. Optical microscope (OM) and scanning electron microscope (SEM) were used to analyze the fractography and microstructure evolution. The results showed that MFT8 steels exhibited transgranular fracture and high ductility in the stress rupture tests. Although the creep cavities were observed, the critical reason of creep rupture was the wedge cracks caused by stress concentration in the area of carbide fragments. The rupture life of MFT8 at 450°C/ 100000 hours was calculated to be 184.4MPa by linear extrapolation. The data of this study inferred that MFT8 had the potential to substitute for the quenched and tempered steels of the same class in power industry.

• Periodical: Advanced Materials Research (Volume 997)
• Pages: 507-511
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.997.507
• Online since: August 2014
• Authors: Jue Wang*, Zhang Zhong Wang, Meng Jiao Zhang, Sui Chun Zhao, Xiao Juan Shang
• Keywords: MFT8, Non-Quenched Steel, Stress Rupture Property, Tempered Steel

References

[1] Y. Luo, X.C. Wu, Y.A. Min, et al, Development of non-quenched prehardened steel for large section plastic mould, J. Iron. Steel. Res. Int. 16 (2009) 61-67.

DOI: 10.1016/s1006-706x(09)60029-7

[2] Y. Luo, J.M. Peng, H.B. Wang, et al, Effect of tempering on microstructure and mechanical properties of a non-quenched bainitic steel, Mater. Sci. Eng. A 527 (2010) 3433-3437.

DOI: 10.1016/j.msea.2010.02.010

[3] S.X. Liu, Y. Chen, G.Q. Lin, et al, Effect of intermediate cooling on precipitation behavior and austenite decomposition of V-Ti-N steel for non-quenched and tempered oil-well tubes, Mater. Sci. Eng. A 485 (2008) 492-499.

DOI: 10.1016/j.msea.2007.08.052

[4] L. Cai, Z.Z. Wang, X.M. Zhao, et al, Deformation strengthening effect of microalloyed steel for cold heading bolt, J. Mater. Eng. 4 (2010) 69-71.

[5] X.Y. Liu, Z.B. Xu, X.H. Wang, et al, Hot ductility of Vanadium micro-alloy steel CC slab, Iron. Steel. 35 (2000) 51-54.

[6] X. Wang, X. Zhang, L.F. Zhan, et al, Microstructure degradation behavior and its influence on high temperature stress rupture limit of T91 steel, Proc. CSEE. 32 (2012) 137-142.

[7] Q. Zhao, X.K. Peng, X.Z. Cong, et al, Study of creep behavior of P92 steel, Iron. Steel. 45 (2010) 82-85.

[8] A.J. Perry, Review cavitation in creep, J. Mater. Sci. 9 (1974) 1016-1039.
