Practical 4.4KW ZVZCS Full-Bridge Power Converter Design

Abstract:

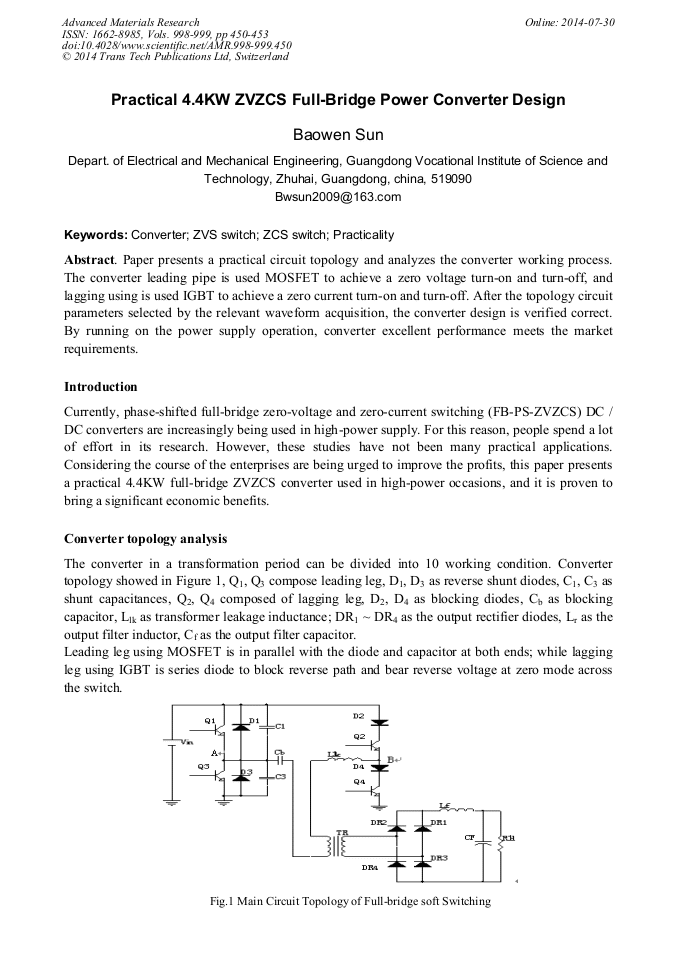

Paper presents a practical circuit topology and analyzes the converter working process. The converter leading pipe is used MOSFET to achieve a zero voltage turn-on and turn-off, and lagging using is used IGBT to achieve a zero current turn-on and turn-off. After the topology circuit parameters selected by the relevant waveform acquisition, the converter design is verified correct. By running on the power supply operation, converter excellent performance meets the market requirements.
