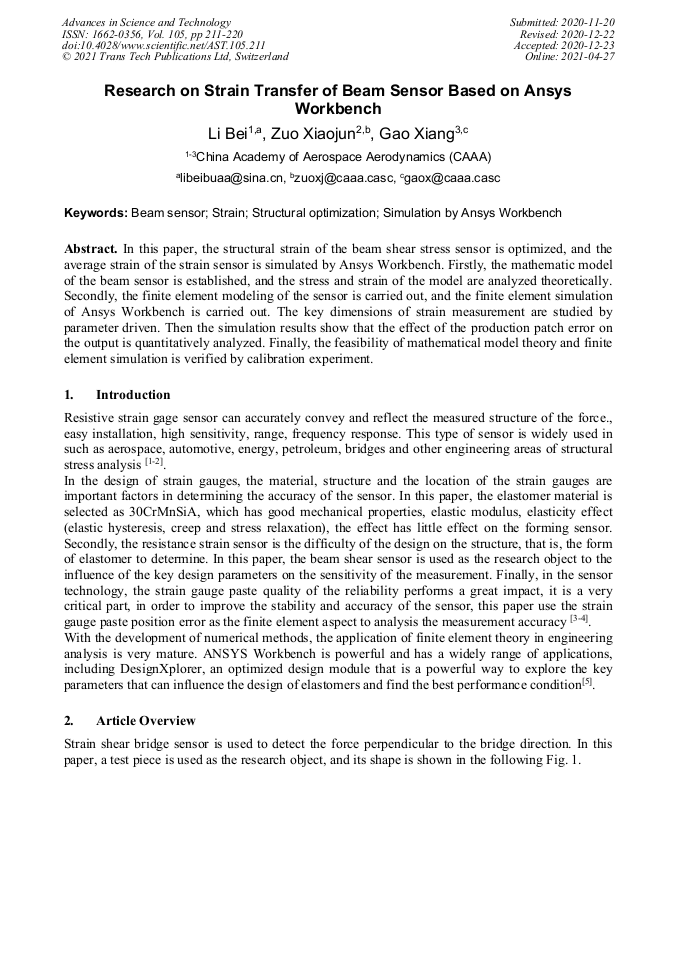

Research on Strain Transfer of Beam Sensor Based on Ansys Workbench

Abstract:

In this paper, the structural strain of the beam shear stress sensor is optimized, and the average strain of the strain sensor is simulated by Ansys Workbench. Firstly, the mathematic model of the beam sensor is established, and the stress and strain of the model are analyzed theoretically. Secondly, the finite element modeling of the sensor is carried out, and the finite element simulation of Ansys Workbench is carried out. The key dimensions of strain measurement are studied by parameter driven. Then the simulation results show that the effect of the production patch error on the output is quantitatively analyzed. Finally, the feasibility of mathematical model theory and finite element simulation is verified by calibration experiment.
