A Study of Experimental Performance of Torque-Shear Nut for Field Applications

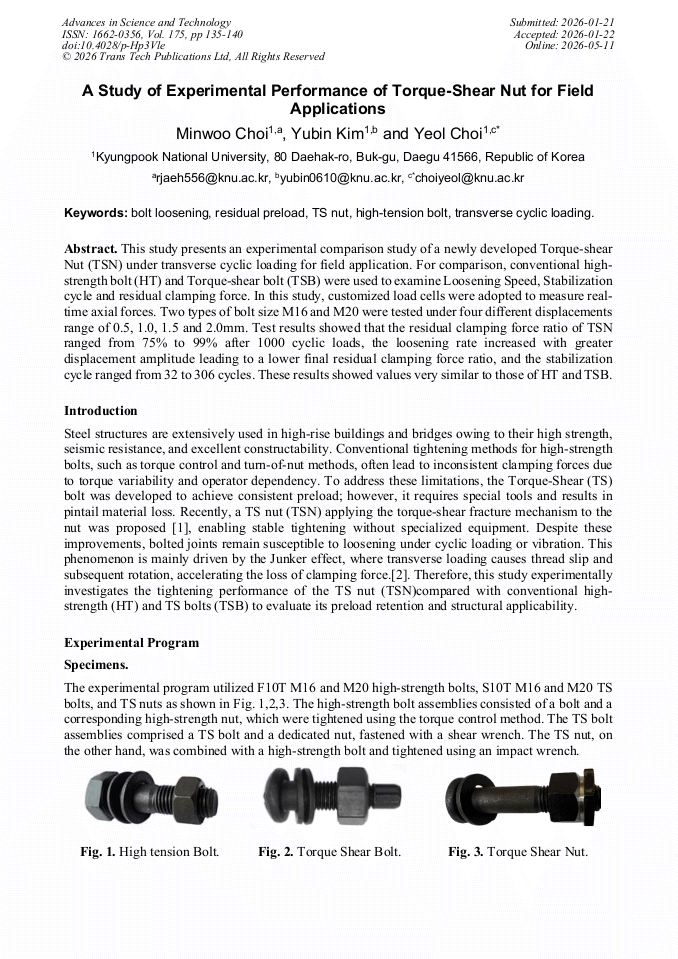

Article Preview

Abstract:

This study presents an experimental comparison study of a newly developed Torque-shear Nut (TSN) under transverse cyclic loading for field application. For comparison, conventional high-strength bolt (HT) and Torque-shear bolt (TSB) were used to examine Loosening Speed, Stabilization cycle and residual clamping force. In this study, customized load cells were adopted to measure real-time axial forces. Two types of bolt size M16 and M20 were tested under four different displacements range of 0.5, 1.0, 1.5 and 2.0mm. Test results showed that the residual clamping force ratio of TSN ranged from 75% to 99% after 1000 cyclic loads, the loosening rate increased with greater displacement amplitude leading to a lower final residual clamping force ratio, and the stabilization cycle ranged from 32 to 306 cycles. These results showed values very similar to those of HT and TSB.

You might also be interested in these eBooks
The 9th Int. Conference on Materials Engineering and Applications (ICMEA) & the 14th Int. Conference on Nano and Materials Science (ICNMS) View Preview

Info:

Periodical:

Advances in Science and Technology (Volume 175)

Pages:

135-140

DOI:

https://doi.org/10.4028/p-Hp3Vle

Citation:

Cite this paper

Online since:

May 2026

Authors:

Minwoo Choi*, Yubin Kim, Yeol Choi

Keywords:

Bolt Loosening, High-Tension Bolt, Residual Preload, Transverse Cyclic Loading, TS Nut

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Park IH, Choi MW, Choi Y, Kang SG. Study of torque-shear (T.S) nut fastening performance. J Reg Assoc Architect Inst Korea. 2024;26(5):23–8.

Google Scholar

[2] Junker GH. New criteria for self-loosening of fasteners under vibration. SAE Trans. 1969;314-35.

DOI: 10.4271/690055

Google Scholar

[3] Friede R, Lange J. Self-loosening of prestressed bolts. In: Nordic Steel Construction Conference NSCC2009; Malmö. 2009. p.2–4.

Google Scholar

[4] Zhang M, Jiang Y, Lee CH. Finite element modeling of self-loosening of bolted joints. J Mech Des. 2007;129(2):218–26.

DOI: 10.1115/1.2406092

Google Scholar

[5] Zhang M, Lu L, Wang W, Zeng D. The roles of thread wear on self-loosening behavior of bolted joints under transverse cyclic loading. Wear. 2018; 394:30–9.

DOI: 10.1016/j.wear.2017.10.006

Google Scholar

[6] Zhang M, Zeng D, Lu L, Zhang Y, Wang J, Xu J. Finite element modelling and experimental validation of bolt loosening due to thread wear under transverse cyclic loading. Eng Fail Anal. 2019; 104:341–53.

DOI: 10.1016/j.engfailanal.2019.05.001

Google Scholar

[7] Jiang Y, Zhang M, Lee CH. A study of early-stage self-loosening of bolted joints. J Mech Des. 2003;125(3):518–26.

DOI: 10.1115/1.1586936

Google Scholar

[8] Jiang Y, Zhang M, Park TW, Lee CH. An experimental study of self-loosening of bolted joints. J Mech Des. 2004;126(5):925–31.

Google Scholar

[9] Jiang Y, Zhang M, Park TW, Lee CH. An experimental investigation on self-loosening of bolted joints. In: ASME Pressure Vessels and Piping Conference. 2003. p.17–22.

DOI: 10.1115/pvp2003-1868

Google Scholar
