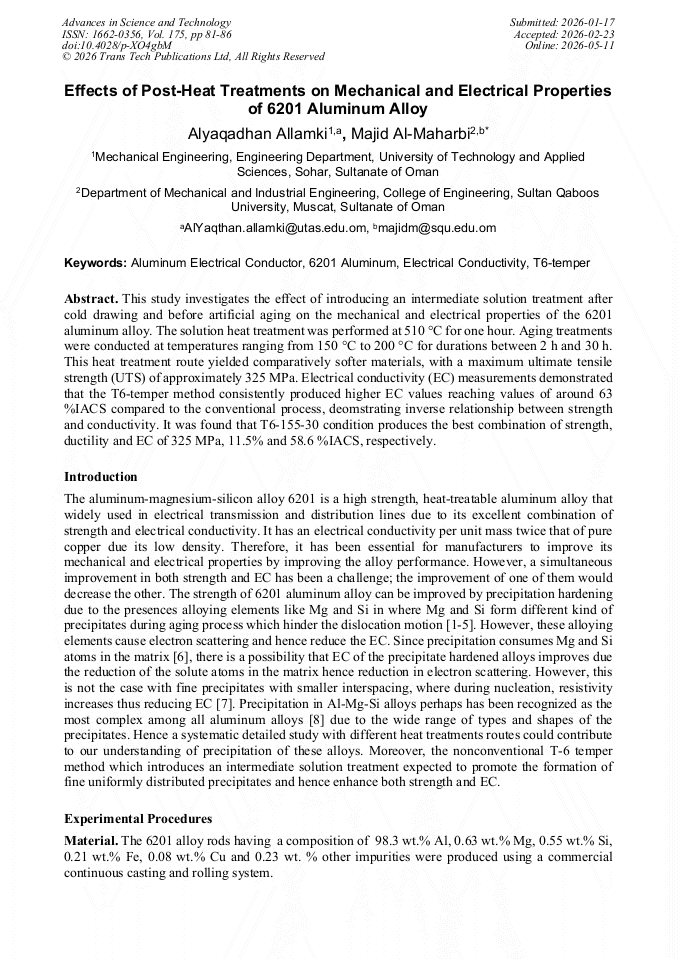

Effects of Post-Heat Treatments on Mechanical and Electrical Properties of 6201 Aluminum Alloy

Abstract:

This study investigates the effect of introducing an intermediate solution treatment after cold drawing and before artificial aging on the mechanical and electrical properties of the 6201 aluminum alloy. The solution heat treatment was performed at 510 °C for one hour. Aging treatments were conducted at temperatures ranging from 150 °C to 200 °C for durations between 2 h and 30 h. This heat treatment route yielded comparatively softer materials, with a maximum ultimate tensile strength (UTS) of approximately 325 MPa. Electrical conductivity (EC) measurements demonstrated that the T6-temper method consistently produced higher EC values reaching values of around 63 %IACS compared to the conventional process, deomstrating inverse relationship between strength and conductivity. It was found that T6-155-30 condition produces the best combination of strength, ductility and EC of 325 MPa, 11.5% and 58.6 %IACS, respectively.

• Periodical: Advances in Science and Technology (Volume 175)
• Pages: 81-86
• DOI: https://doi.org/10.4028/p-XO4gbM
• Online since: May 2026
• Authors: Alyaqadhan Allamki, Majid Al-Maharbi*
• Keywords: 6201 Aluminum, Aluminum Electrical Conductor, Electrical Conductivity, T6-Temper

References

[1] Chakrabarti, D., & Laughlin, D. E. (2004). Phase relations and precipitation in Al–Mg–Si alloys with Cu additions. Progress in Materials Science, 49(3), 389–410

DOI: 10.1016/S0079-6425(03)00031-8

[2] Jin, H., Tie, D., & Guan, R. (2022). Precipitation behavior during re-aging of Al–Mg–Si–Cu alloy. Materials & Design, 220, 110883

DOI: 10.1016/j.matdes.2022.110883

[3] Matsuda, K., Taniguchi, S., Kido, K., Uetani, Y., & Ikeno, S. (2002). Effects of Cu and transition metals on the precipitation behaviors of metastable phases at 523 K in Al–Mg–Si alloys. Materials Transactions, 43(11), 2789–2795

DOI: 10.2320/matertrans.43.2789

[4] Sunde, J. K., Marioara, C. D., Wenner, S., & Holmestad, R. (2021). On the microstructural origins of improvements in conductivity by heavy deformation and ageing of Al–Mg–Si alloy 6101. Materials Characterization, 176, 111073

DOI: 10.1016/j.matchar.2021.111073

[5] Yao, J., Graham, D., Rinderer, B., & Couper, M. (2001). A TEM study of precipitation in Al–Mg–Si alloys. Micron, 32(8), 865–870

DOI: 10.1016/S0968-4328(00)00095-0

[6] Raeisinia, B., Poole, W. J., & Lloyd, D. (2006). Examination of precipitation in the aluminum alloy AA6111 using electrical resistivity measurements. Materials Science and Engineering: A, 420(1), 245–249

DOI: 10.1016/j.msea.2006.02.045

[7] Flores, F. U., Seidman, D. N., Dunand, D. C., & Vo, N. Q. (2018). Development of high-strength and high-electrical-conductivity aluminum alloys for power transmission conductors. Minerals, Metals & Materials Series, Part F4, 247–251

DOI: 10.1007/978-3-319-72284-9_34

[8] Polmear, I. (2005). Light Alloys. Elsevier, Netherlands.
