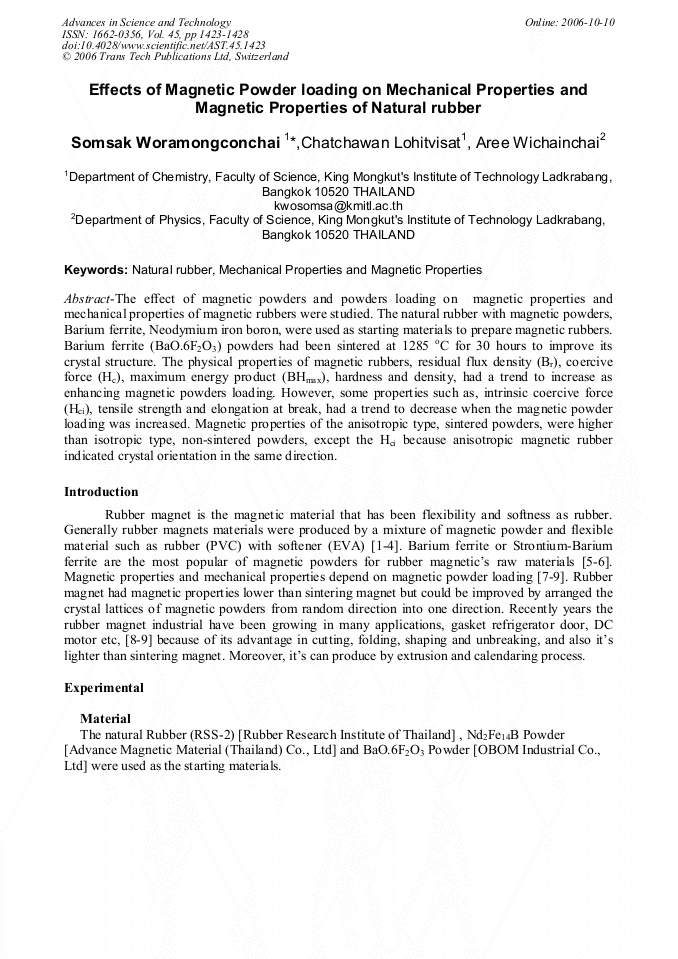

The effect of magnetic powders and powders loading on magnetic properties and
mechanical properties of magnetic rubbers were studied. The natural rubber with magnetic powders,
Barium ferrite, Neodymium iron boron, were used as starting materials to prepare magnetic rubbers.
Barium ferrite (BaO.6F2O3) powders had been sintered at 1285 oC for 30 hours to improve its
crystal structure. The physical properties of magnetic rubbers, residual flux density (Br), coercive
force (Hc), maximum energy product (BHmax), hardness and density, had a trend to increase as
enhancing magnetic powders loading. However, some properties such as, intrinsic coercive force
(Hci), tensile strength and elongation at break, had a trend to decrease when the magnetic powder
loading was increased. Magnetic properties of the anisotropic type, sintered powders, were higher
than isotropic type, non-sintered powders, except the Hci because anisotropic magnetic rubber
indicated crystal orientation in the same direction.
You might also be interested in these eBooks
Info:
© 2006 Trans Tech Publications Ltd. All Rights Reserved
[1]
Magtec Magnet EC Magtec Co., Ltd. 2001. Flexible Magnet and Injection Molded Magnet (online) Available: http: / www. magtec. com/magtec01-02. htm.
Google Scholar
[2]
Aussie Magnets Co., Ltd. 2001. Flexible Magnetic Rubber. (online). Available: http: /www. aussiemagnets. com. au/rubber. html.
Google Scholar
[3]
Magtec Industrial Co. 2002. Flexible Rubber Magnet. (online). Available: http: / www. magtech. com. hk/flexible. htm.
Google Scholar
[4]
Magtec Industrial Co. 2002. Flexible Rubber Magnet. (online). Available: http: / www. magtech. com. hk/flexible. htm.
Google Scholar
[5]
ACH Magnetic, Inc. 2001. Anisotropic and Isotropic Plastic Magnets. (online). Available: http: / www. ach - mag. Com/rubber. html.
Google Scholar
[6]
Sawa . High-Performance Anisotropic Plastic Magnet and a Process for Producing the Same., U. S Patent no. 4022701, May (1977).
Google Scholar
[7]
Strail. Flexible High Energy Magnetic Blend Compositions Based on Rare Earth Magnetic Particle in Highly Saturated Nitrile Rubber., U. S Patent no. 5051200, September (1991).
Google Scholar
[8]
Strail. Flexible High Energy Magnetic Blend Compositions Based on Ferrite Particle in Highly Saturated Nitrile Rubber and Methods of Processing the Same., U. S Patent no. 5002677, March (1991).
Google Scholar
[9]
Tada. Rubber or Plastic Magnetic and Magnetic Powder for Marking the Same., U. S Patent no. 4308155, April (1981).
Google Scholar
[10]
Lovell, M. C. 1976. Physical Properties of Materials. London: Molly Millars Lane.
Google Scholar
[11]
Cullity, B.D. 1972. Introduction to Magnetic Materials: Philippine: Adison-Wesley Publishing Company.
Google Scholar
[12]
Flament. Flexible Magnetic Pad., U. S Patent no. 6126588, November (2000).
Google Scholar
[13]
Poh B.T. et. al. 2002. Effect of Filler Loading on Tensile and Tear Properties of SMR L/ENR 25 and SMR L/SBR Blends cured Via a Semi-Efficient Vulcanization System., Journal of Polymer Testing. Vol. 21 (801-806).
DOI: 10.1016/s0142-9418(02)00014-4
Google Scholar
