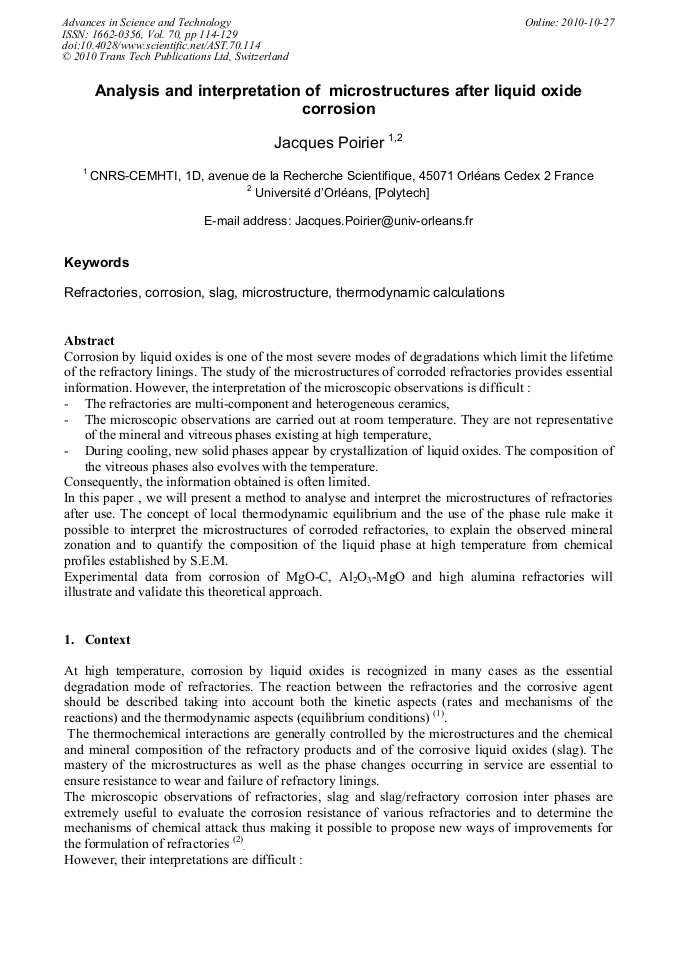

Analysis and Interpretation of Microstructures after Liquid Oxide Corrosion

Abstract:

Corrosion by liquid oxides is one of the most severe modes of degradations which limit the lifetime of the refractory linings. The study of the microstructures of corroded refractories provides essential information. However, the interpretation of the microscopic observations is difficult : - The refractories are multi-component and heterogeneous ceramics, - The microscopic observations are carried out at room temperature. They are not representative of the mineral and vitreous phases existing at high temperature, - During cooling, new solid phases appear by crystallization of liquid oxides. The composition of the vitreous phases also evolves with the temperature. Consequently, the information obtained is often limited. In this paper , we will present a method to analyse and interpret the microstructures of refractories after use. The concept of local thermodynamic equilibrium and the use of the phase rule make it possible to interpret the microstructures of corroded refractories, to explain the observed mineral zonation and to quantify the composition of the liquid phase at high temperature from chemical profiles established by S.E.M. Experimental data from corrosion of MgO-C, Al2O3-MgO and high alumina refractories will illustrate and validate this theoretical approach.

• Periodical: Advances in Science and Technology (Volume 70)
• Pages: 114-129
• DOI: https://doi.org/10.4028/www.scientific.net/AST.70.114
• Online since: October 2010
• Authors: Jacques Poirier
• Keywords: Corrosion, Microstructure, Refractory, Slag, Thermodynamic Calculation

References

[2] 2-12 (2007).

[2] Lee, W. E., Characterisation of corrosion mechanisms in refractories by post-mortem microstructural analysis. Brit. Ceram. Proc., 1997, 57, 7-15.

[3] J. Poirier, Apport de la thermodynamique à l'étude de la corrosion des céramiques à haute température- applications sidérurgiques Annales de chimie – Science des Matériaux, 33 [3] 203-224 (2008).

DOI: 10.3166/acsm.33.203-224

[4] Thompson, J.B. Jr., Local equilibrium in metasomatic processes, in Researches in Geochemistry, vol. 1, P. H. Abelson, John Wiley & Sons, New York, (1954).

[5] Ildefonse, J.P. Gabis, V. & Cesbron, F., Mullitization of andalusite in refractory bricks, Key Engineering Materials, 1997, 132-136, 1798-1801.

DOI: 10.4028/www.scientific.net/kem.132-136.1798

[6] M.L. Bouchetou, J.P. Ildefonse, J. Poirier, P. Daniellou, Mullite grown from fired andalusite grains : the role of impurities and of the high temperature liquid phase on the kinetic of mullitization. Consequences on thermal shock resistance. Ceramics International, 31 [7] 999-1005 (2005).

DOI: 10.1016/j.ceramint.2004.10.015

[7] M. Gautier, J. Poirier, G. Franceschini, F. Bodeman, M. Gautier, Influence of the cooling conditions on the nature and the size of the mineral phase in a Basic Oxigen Furnace (BOF) slag, Déchets, Sciences et techniques, 57 1-8 (2010).

DOI: 10.4267/dechets-sciences-techniques.3105

[8] E. Blond, N. Schmitt, F. Hild, P. Blumenfeld, J. Poirier, Effect of slag impregnation on thermal degradations in refractories, Journal of American Ceramic Society, 90 [1] 154-162 (2007).

DOI: 10.1111/j.1551-2916.2006.01348.x

[9] Guha, J.P., Reaction chemistry in dissolution of polycrystalline alumina in lime-alumina-silica slag. British Ceramic Transactions, 1997, 96, [6], 231-236.

[10] Qafssaoui,F., Poirier,J., Ildefonse J.P., Hubert,P. & Benyaich,F., Microstructural and physicochemical studies of corroded high-alumina refractories. Silicates Industriels - Ceramic Science and Technology, 2005, 70, [7-8], 109-117.

[11] J. Poirier, M.L. Bouchetou, F. Qafssaoui, J.P. Ildefonse, Analysis and interpretation of refractories microstructures in studies of corrosion mechanisms by liquid oxides, Journal of European Ceramic Society, 28 [8] 1557 - 1568 (2008).

DOI: 10.1016/j.jeurceramsoc.2007.10.012

[12] J. Berjonneau, P. Prigent, J. Poirier, Thermodynamic modelling of the corrosion of Al2O3-MgO refractory castables by secondary metallurgy slags in the steel ladles Ceramics International, 35 [2] 623-635 (2009).

DOI: 10.1016/j.ceramint.2008.04.002

[13] Gibbs, J.W., Equilibrium of heterogeneous substances Trans. Conn. Acad. Sci., 3, 1874, 108-248, and Trans. Conn. Acad. Sci., 3, 1878, 343-524.

[14] F. Qafssaoui, J. Poirier, J.P. Ildefonse, P. Hubert, Influence of liquid phase on corrosion behaviour of andalusite-based refractories, Refractories Applications Transactions, 1 [1] 2-8 (2005).

[15] Urbain G., Viscosity estimation of slags. Steel Res., 1987, 58, [3], 111-116.
