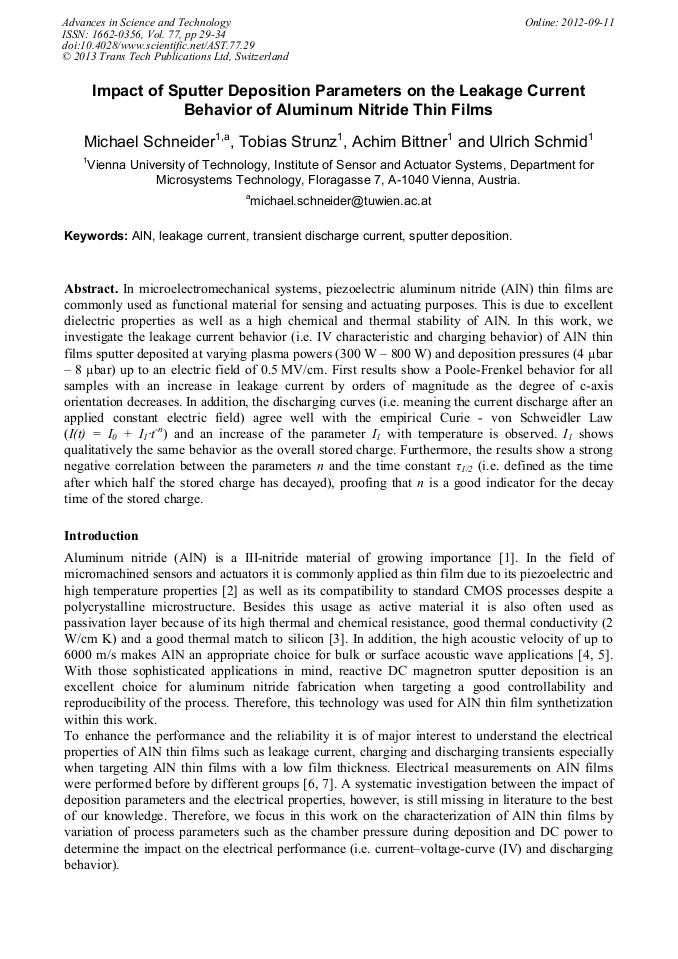

Impact of Sputter Deposition Parameters on the Leakage Current Behavior of Aluminum Nitride Thin Films

Abstract:

In microelectromechanical systems, piezoelectric aluminum nitride (AlN) thin films are commonly used as functional material for sensing and actuating purposes. This is due to excellent dielectric properties as well as a high chemical and thermal stability of AlN. In this work, we investigate the leakage current behavior (i.e. IV characteristic and charging behavior) of AlN thin films sputter deposited at varying plasma powers (300 W – 800 W) and deposition pressures (4 µbar – 8 µbar) up to an electric field of 0.5 MV/cm. First results show a Poole-Frenkel behavior for all samples with an increase in leakage current by orders of magnitude as the degree of c-axis orientation decreases. In addition, the discharging curves (i.e. meaning the current discharge after an applied constant electric field) agree well with the empirical Curie - von Schweidler Law (I(t) = I₀ + I₁t^-n) and an increase of the parameter I₁ with temperature is observed. I₁ shows qualitatively the same behavior as the overall stored charge. Furthermore, the results show a strong negative correlation between the parameters n and the time constant τ_1/2 (i.e. defined as the time after which half the stored charge has decayed), proofing that n is a good indicator for the decay time of the stored charge.

You might also be interested in these eBooks

Adaptive, Active and Multifunctional Smart Materials Systems

View Preview

Info:

Periodical:

Advances in Science and Technology (Volume 77)

Pages:

29-34

DOI:

https://doi.org/10.4028/www.scientific.net/AST.77.29

Citation:

Cite this paper

Online since:

September 2012

Authors:

Michael Schneider, Tobias Strunz, Achim Bittner, Ulrich Schmid

Keywords:

Aluminum Nitride (AlN), Leakage Current, Sputter Deposition, Transient Discharge Current

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Tadigadapa, and K. Mateti, Piezoelectric MEMS sensors: state-of-the-art and perspectives, Measurement Science and Technology 20 (2009) 092001.

DOI: 10.1088/0957-0233/20/9/092001

Google Scholar

[2] O. Ambacher, Growth and applications of Group III-nitrides, Journal of Physics D: Applied Physics 31 (1998) 2653.

Google Scholar

[3] S. Strite, and H. Morkoc, GaN, AlN, and InN: A review, Journal of Vacuum Science & Technology B: Microelectronics and Nanometer Structures 10 (1992) 1237-1266.

DOI: 10.1116/1.585897

Google Scholar

[4] M. B. Assouar, M. El Hakiki, O. Elmazria et al., Synthesis and microstructural characterisation of reactive RF magnetron sputtering AlN films for surface acoustic wave filters, Diamond and Related Materials 13 (2004) 1111-1115.

DOI: 10.1016/j.diamond.2003.11.064

Google Scholar

[5] H. P. Loebl, C. Metzmacher, R. F. Milsom et al., RF Bulk Acoustic Wave Resonators and Filters, Journal of Electroceramics 12 (2004) 109-118.

DOI: 10.1023/b:jecr.0000034005.21609.91

Google Scholar

[6] F. Engelmark, J. Westlinder, G. F. Iriarte et al., Electrical characterization of AlN MIS and MIM structures, Electron Devices, IEEE Transactions on 50 (2003) 1214-1219.

DOI: 10.1109/ted.2003.813231

Google Scholar

[7] N. B. Hassine, D. Mercier, P. Renaux et al., Dielectrical properties of metal-insulator-metal aluminum nitride structures: Measurement and modeling, Journal of Applied Physics 105 (2009) 044111.

DOI: 10.1063/1.3081977

Google Scholar

[8] A. Ababneh, U. Schmid, J. Hernando et al., The influence of sputter deposition parameters on piezoelectric and mechanical properties of AlN thin films, Materials Science and Engineering: B 172 (2010) 253-258.

DOI: 10.1016/j.mseb.2010.05.026

Google Scholar

[9] A. V. Singh, S. Chandra, and G. Bose, Deposition and characterization of c-axis oriented aluminum nitride films by radio frequency magnetron sputtering without external substrate heating, Thin Solid Films 519 (2011) 5846-5853.

DOI: 10.1016/j.tsf.2011.02.074

Google Scholar

[10] S. M. Sze, and K. K. Ng, Physics of Semiconductor Devices, 3 ed.: Wiley-Blackwell, (2006).

Google Scholar

[11] T. C. Guo, and W. W. Guo, A transient-state theory of dielectric relaxation and the Curie-von Schweidler law, Journal of Physics C: Solid State Physics 16 (1983) (1955).

DOI: 10.1088/0022-3719/16/10/024

Google Scholar

[12] M. Schumacher, and R. Waser, Curie - Von Schweidler behaviour observed in ferroelectric thin films and comparison to superparaelectric thin film materials, Integrated Ferroelectrics 22 (1998) 109-121.

DOI: 10.1080/10584589808208034

Google Scholar
