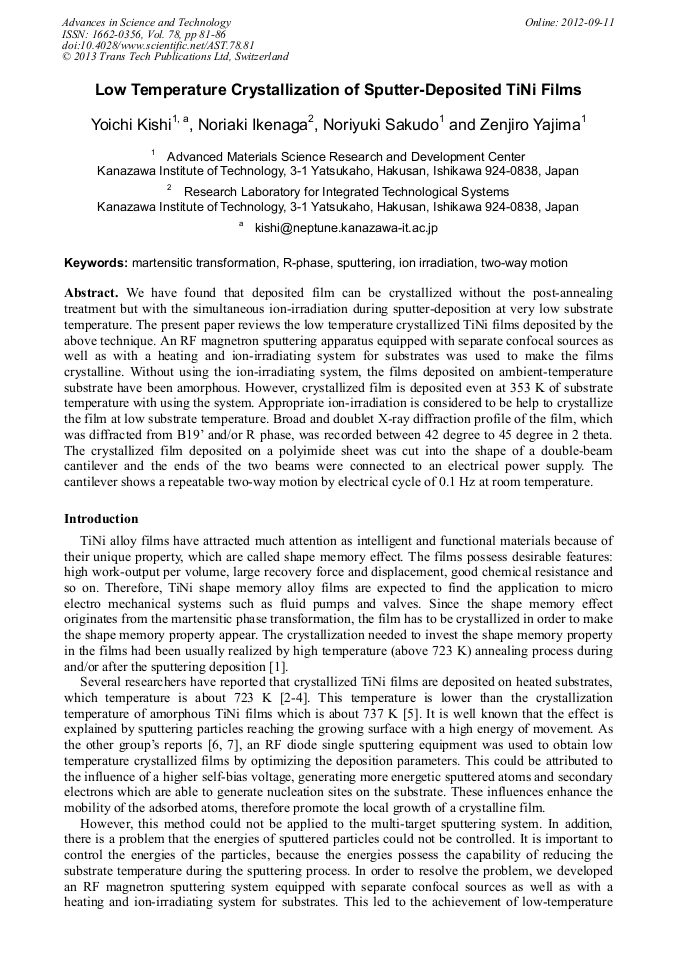

Low Temperature Crystallization of Sputter-Deposited TiNi Films

Abstract:

We have found that deposited film can be crystallized without the post-annealing treatment but with the simultaneous ion-irradiation during sputter-deposition at very low substrate temperature. The present paper reviews the low temperature crystallized TiNi films deposited by the above technique. An RF magnetron sputtering apparatus equipped with separate confocal sources as well as with a heating and ion-irradiating system for substrates was used to make the films crystalline. Without using the ion-irradiating system, the films deposited on ambient-temperature substrate have been amorphous. However, crystallized film is deposited even at 353 K of substrate temperature with using the system. Appropriate ion-irradiation is considered to be help to crystallize the film at low substrate temperature. Broad and doublet X-ray diffraction profile of the film, which was diffracted from B19’ and/or R phase, was recorded between 42 degree to 45 degree in 2 theta. The crystallized film deposited on a polyimide sheet was cut into the shape of a double-beam cantilever and the ends of the two beams were connected to an electrical power supply. The cantilever shows a repeatable two-way motion by electrical cycle of 0.1 Hz at room temperature.

• Periodical: Advances in Science and Technology (Volume 78)
• Pages: 81-86
• DOI: https://doi.org/10.4028/www.scientific.net/AST.78.81
• Online since: September 2012
• Authors: Yoichi Kishi, Noriaki Ikenaga, Noriyuki Sakudo, Zenjiro Yajima
• Keywords: Ion Irradiation, Martensitic Transformation (MT), R-Phase, Sputtering, Two-Way Motion

References

[1] S. Miyazaki and A. Ishida, Martensitic transformation and shape memory behavior in sputter-deposited TiNi-base thin films, Materials Science and Engineering A273–275 (1999) 106-133.

DOI: 10.1016/s0921-5093(99)00292-0

[2] Kathleen R. C. Gisser, John D. Busch, A. David Johnson and Arthur B. Ellis, Oriented nickel‐titanium shape memory alloy films prepared by annealing during deposition, Applied Physics Letters, 61 (1992) 61-63.

DOI: 10.1063/1.108434

[3] C. M. Craciunescu, J. Li and M. Wuttig, Constrained martensitic transformations in TiNiCu films, Thin Solid Films, 434 (2003) 271-275.

DOI: 10.1016/s0040-6090(03)00531-5

[4] A. Ishida and M. Sato, Ti–Ni–Cu shape-memory alloy thin film formed on polyimide substrate, Thin Solid Films, 516 (2008) 7836-7839.

DOI: 10.1016/j.tsf.2008.04.091

[5] S. Kajiwara, K. Ogawa, T. Kikuchi, T. Matsunaga and S. Miyazaki, Formation of nanocrystals with an identical orientation in sputter-deposited Ti-Ni thin films, Philosophical Magazine Letters, 74 (1996) 395- 404.

DOI: 10.1080/095008396179922

[6] M. Bendahan, J. -L. Seguin, P. Canet and H. Carchano, NiTi shape memory alloy thin films: composition control using optical emission spectroscopy, Thin Solid Films, 283 (1996) 61-66.

DOI: 10.1016/0040-6090(95)08254-9

[7] J. -L. Seguin, M. Bendahan, A. Isalgue, V. Esteve-Cano, H. Carchano and V. Torra, Low temperature crystallised Ti-rich NiTi shape memory alloy films for microactuators, Sensors and Actuators A: Physical, 74 (1999) 65-69.

DOI: 10.1016/s0924-4247(98)00304-5

[8] Y. Kishi, N. Ikenaga, N. Sakudo and Z. Yajima, Transforamation Behavior of Low Temperature Crystallized TiNi Shape Memory Alloy Films, in ESOMAT 2009 - The 8th European Symposium on Martensitic Transformations, 02012, 2009, edited by P. Šittner, L. Heller and V. Paidar, published by EDP Sciences (www. esomat. org), DOI: 10. 1051/esomat/200902012, (2009).

DOI: 10.1051/esomat/200902012

[9] N. Sakudo, N. Ikenaga, F. Ikeda, Y. Nakayama, Y. Kishi and Z. Yajima, Simultaneous Sterilization with Surface Modification of Plastic Bottle by Plasma-Based Ion Implantation, AIP Conference Proceedings (ION IMPLANTATION TECHNOLOGY 2010), 1321 (2010).

DOI: 10.1063/1.3548369

[10] N. Sakudo, T. Shinohara, S. Amaya, H. Endo, S. Okuji and N. Ikenaga, Ion implantation into concave polymer surface, Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 242 (2006) 349-352.

DOI: 10.1016/j.nimb.2005.08.082

[11] N. Ikenaga, K. Awazu, N. Sakudo, H. Yasui and T. Kawabata, Effect of electron temperature on the DLC film properties, Surface and Coatings Technology, 196 (2005) 226-230.

DOI: 10.1016/j.surfcoat.2004.08.081

[12] N. Ikenaga, Y. Kishi, Z. Yajima, N. Sakudo, In-Situ Crystallization of Sputter-Deposited TiNi by Ion Irradiation, Journal of Alloys and Compounds (in press), (2012).

DOI: 10.1016/j.jallcom.2012.02.139

[13] A. Gyobu, Y. Kawamura, H. Horikawa and T. Saburi, Martensitic Transformations in Sputter-Deposited Shape Memory Ti-Ni Films, Materials Transactions, JIM, 37 (1996) 697-702.

DOI: 10.2320/matertrans1989.37.697

[14] N. Ikenaga, Y. Kishi, Z. Yajima, N. Sakudo, S. Nakano, H. Ogiso, Microstructure of ion-implanted region in TiNi alloy, Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 267 (2009).

DOI: 10.1016/j.nimb.2009.01.077
