Indian Test Blanket Module in ITER - Development of RAFM Steel and Fabrication Technology

Abstract:

A detailed and comprehensive programme is undertaken in India to fabricate Indian Test Blanket Module (TBM) to be tested in ITER. Development of India-specific Reduced Activation Ferritic/Martensitic (RAFM) steel has been realized through melting and physical and mechanical properties characterization of several heats of 9Cr-RAFM steel with varying tungsten and tantalum contents. The RAFM steel having 1.4 wt. % tungsten and 0.06 wt. % tantalum is found to possess better combination of strength and toughness and is considered as India-specific RAFM steel. Different joining processes for fabrication of TBM have been assessed. Hot Isostatic Pressing (HIP) has been demonstrated to fabricate the first wall of TBM. To avoid channel collapse during HIPing, leachable ceramic cores were inserted in the channels. Electron Beam (EB) and Laser Welding processes are used for fabrication of breeder cassettes and hence, these welding procedures have been developed. Tungsten Inert Gas (TIG), Narrow Gap TIG (NG-TIG) and Laser Hybrid welding processes are being considered for integration of the various components such as first wall, back plate, bottom plate, breeder assembly and flow dividers into TBM. RAFM steel welding consumables have also been developed and qualified. Procedure for laser hybrid welding has also been developed. Necessary technologies for inspection and quality assurance of the fabricated TBM are also being developed. Use of ultrasonic C-Scan imaging to examine the bond integrity of the HIP joint has been demonstrated. Phased Array technique that would enable inspection of welds by longitudinal movement of the probe from an optimised lateral distance of the weld without the requirement of lateral movement has also been developed. The challenges in developing the India-specific RAFM steel and the fabrication and inspection technologies for fabrication of Indian TBM are presented.

You might also be interested in these eBooks

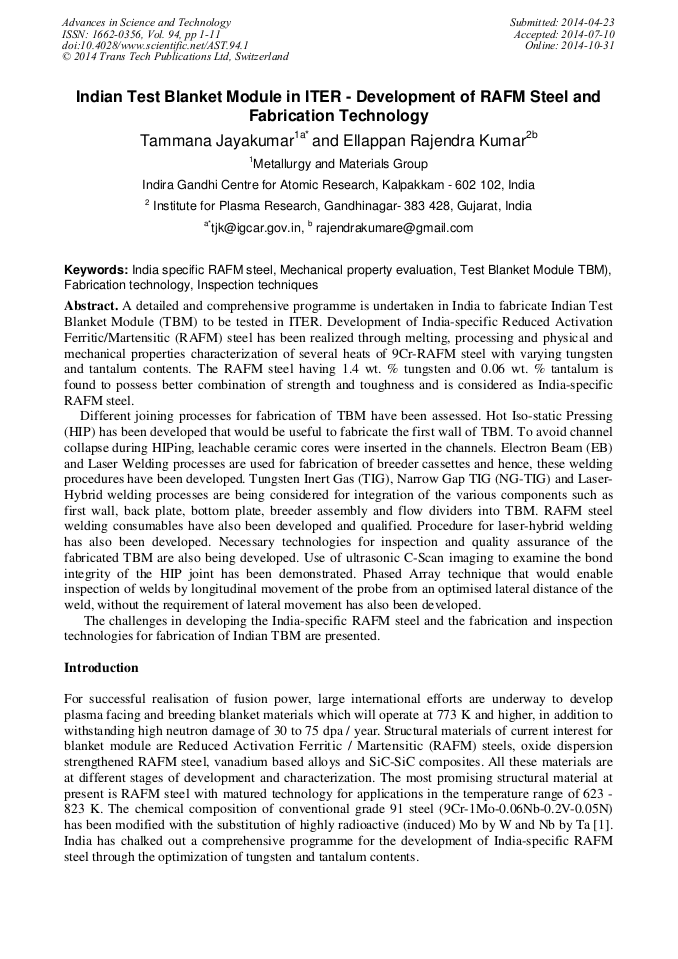

View Preview

Info:

Periodical:

Advances in Science and Technology (Volume 94)

Pages:

1-11

DOI:

https://doi.org/10.4028/www.scientific.net/AST.94.1

Citation:

Cite this paper

Online since:

October 2014

Authors:

Tammana Jayakumar*, Ellappan Rajendra Kumar

Keywords:

Fabrication Technology, India Specific RAFM Steel, Inspection Techniques, Mechanical Property Evaluation, Test Blanket Module (TBM)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Kohyama, Y. Kohno, K. Asakura and H. Kayano, R&D of low activation ferritic steels for fusion in Japanese universities, J. Nucl Mater., 212-215(1994) 684-689.

DOI: 10.1016/0022-3115(94)90145-7

Google Scholar

[2] M. Reith, M. Schirra, A. Falkenstein, P. Grof, S. Heger, H. Kempe, R. Lindau and H. Zimmermann, EUROFER 97 Tensile, Charpy, Creep and Structural Tests, Forschungszentrum Karlsruhe, Germany, KZKA 6911 report, (2003).

Google Scholar

[3] J. Vanaja, K. Laha, M. Nandagopal, Shiju Sam, M. D. Mathew, T. Jayakumar and E. Rajendra Kumar, Influence of strain rate and temperature on tensile properties and flow behaviour of a reduced activation ferritic–martensitic steel, J. Nucl. Mater., 424 (2012).

DOI: 10.1016/j.jnucmat.2012.02.020

Google Scholar

[4] Vani Shankar, K. Mariappan, A. Nagesha, G. V. Prasad Reddy, R. Sandhya, M. D. Mathew and T. Jayakumar, Effect of tungsten and tantalum on the low cycle fatigue behavior of reduced activation ferritic/martensitic steels, Fus. Eng. Des., 87 (2012).

DOI: 10.1016/j.fusengdes.2012.01.020

Google Scholar

[5] F. Abe, Coarsening behavior of lath and its effect on creep rates in tempered martensitic 9Cr–W steels, Mater. Sci. Engg. A, 387-389 (2004) 565-569.

DOI: 10.1016/j.msea.2004.01.057

Google Scholar

[6] E. Rajendra Kumar, C. Danani, I. Sandeep, Ch. Chakrapani, N. Ravi Pragash, V. Chaudhari, C. Rotti, P.M. Raole, J. Alphonsa, S.P. Deshpande, Preliminary design of Indian Test Blanket Module for ITER, Fusion Engg. and Design 83 (2008) 1169-1172.

DOI: 10.1016/j.fusengdes.2008.07.030

Google Scholar

[7] G. Srinivasan, B. Arivazhagan, S.K. Albert, A.K. Bhaduri, Development of Filler Wires for Welding of Reduced Activation Ferritic Martenistic Steel for India's Test Blanket Module of ITERFusion Eng. Des. 86 (2011) 446-451.

DOI: 10.1016/j.fusengdes.2011.04.003

Google Scholar

[8] Zuber, S.K. Albert, S. Mahadevan, M. Vasudevan, and V. Chaudhari, Prediction of distortion in autogenous gas tungsten arc welding of Modified 9Cr-1Mo steel plates, communicated to J. of Mech. Sci. Techno.

Google Scholar
