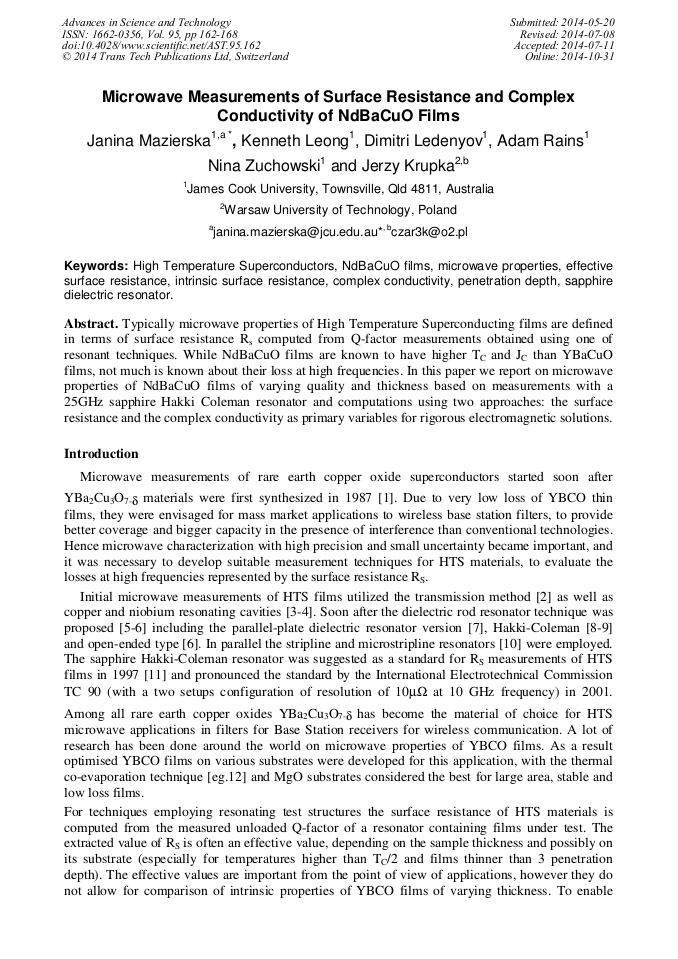

Microwave Measurements of Surface Resistance and Complex Conductivity of NdBaCuO Films

Abstract:

Typically microwave properties of High Temperature Superconducting films are defined in terms of surface resistance R_s computed from Q-factor measurements obtained using one of resonant techniques. While NdBaCuO films are known to have higher T_C and J_C than YBaCuO films, not much is known about their loss at high frequencies. In this paper we report on microwave properties of NdBaCuO films of varying quality and thickness based on measurements with a 25GHz sapphire Hakki Coleman resonator and computations using two approaches: the surface resistance and the complex conductivity as primary variables for rigorous electromagnetic solutions.

• Periodical: Advances in Science and Technology (Volume 95)
• Pages: 162-168
• DOI: https://doi.org/10.4028/www.scientific.net/AST.95.162
• Online since: October 2014
• Authors: Janina Mazierska*, Kenneth Leong, Dimitri Ledenyov, Adam Rains, Nina Zuchowski, Jerzy Krupka
• Keywords: Complex Conductivity, Effective Surface Resistance, High Temperature Superconductors, Intrinsic Surface Resistance, Microwave Properties, NdBaCuO Films, Penetration Depth, Sapphire Dielectric Resonator

References

[1] M. K. Wu et al, Superconductivity at 93 K in a New Mixed –Phase Y-Ba-Cu-O Compound System at Ambient Pressure, Physical Review Letters, 58 (1987) 908-910.

DOI: 10.1103/physrevlett.58.908

[2] H. Piel et al, Superconducting Perovskites in Microwave Fields, Physica C Superconductivity, 153 (1988) 1604-1609.

DOI: 10.1016/0921-4534(88)90430-3

[3] S. Sridhar and W. L. Kennedy, Novel Technique to Measure the Microwave Response of High-TC Superconductors between 4 and 200K, Rev. Sci. Instrum. 59 (1988) 531-536.

[4] C. S. Nichols et al., Microwave transmission through films of YBa2Cu3O7−δ, Phys. Rev. B 38 (1988) 11970.

[5] J. Fiedziuszko and P. D. Heidmann, Dielectric Resonator Used as a Probe for High TC Superconductor Measurements, IEEE MTT-S Int. Microwave Symp. Digest, (1989) 555-558.

DOI: 10.1109/mwsym.1989.38788

[6] J-C. Mage and D. Dieumegard, High TC superconductors for Microwave Filters, AGARD Conf. Proc, 481(1990) 1-10.

[7] R. C. Taber, A Parallel Plate Resonator Technique for Microwave Loss Measurements on Superconductors, Rev. Sci. Instrum. 61 (1990) 2200.

DOI: 10.1063/1.1141389

[8] J. Krupka et al., Surface resistance measurements of HTS films by means of sapphire dielectric resonators, IEEE Trans. on Applied Superonductivity, 3 (1993) 3043-3048.

DOI: 10.1109/77.234839

[9] C. Wilker et al., A sapphire resonator for microwave characterization of superconducting thin films, 41st ARFTG Conference Digest 23 (1993) 38-47.

DOI: 10.1109/arftg.1993.327018

[10] D. E. Oates, A. C. Anderson, and P. M. Mankiewich, Measurement of the Surface Resistance of YBa2Cu3O7− x Thin Films using Stripline Resonators, J. Superconductivity, 3 (1990) 251-259.

DOI: 10.1007/bf00625265

[11] J. Mazierska, Dielectric Resonator as a Possible Standard for Characterisation of High Temperature Superconducting Films for Microwave Applications, J. Superconductivity, 10 (1997) 73-85.

DOI: 10.1007/bf02763176

[12] R. Semerad, J. Knauf, K. Irgmaier, W. Prusseit, RE-123 thin films for microwave applications, Physica C, 378 (2002) 1414–1418.

DOI: 10.1016/s0921-4534(02)01735-5

[13] J. Krupka et al, Complex Conductivity of YBCO Films in Normal and Superconducting States Probed by Microwave Measurements, IEEE Trans. Appl. Superconductivity, 23 (2013) 64501232, 11 pp.

DOI: 10.1109/tasc.2012.2237515

[14] K. Leong, J. Mazierska, Precise Measurements of the Q-factor of Dielectric Resonators in the Transmission Mode: Accounting for Noise, Crosstalk, Uncalibrated Lines, Coupling Loss and Coupling Reactance", IEEE Trans. MTT, 50 (2002) 2115-2127.

DOI: 10.1109/tmtt.2002.802324
