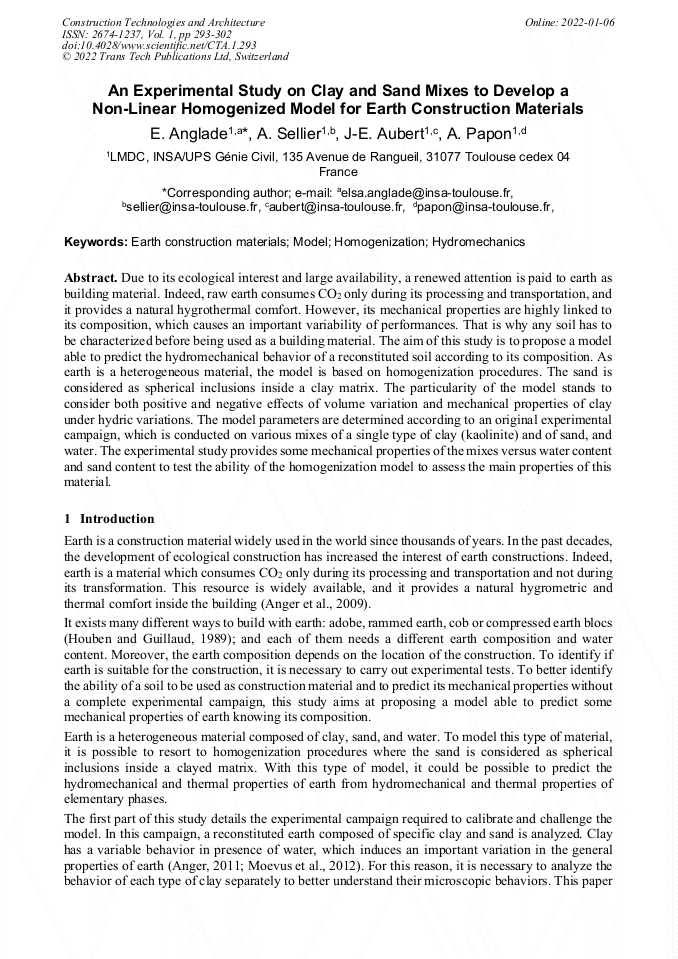

An Experimental Study on Clay and Sand Mixes to Develop a Non-Linear Homogenized Model for Earth Construction Materials

Abstract:

Due to its ecological interest and large availability, a renewed attention is paid to earth as building material. Indeed, raw earth consumes CO₂ only during its processing and transportation, and it provides a natural hygrothermal comfort. However, its mechanical properties are highly linked to its composition, which causes an important variability of performances. That is why any soil has to be characterized before being used as a building material. The aim of this study is to propose a model able to predict the hydromechanical behavior of a reconstituted soil according to its composition. As earth is a heterogeneous material, the model is based on homogenization procedures. The sand is considered as spherical inclusions inside a clay matrix. The particularity of the model stands to consider both positive and negative effects of volume variation and mechanical properties of clay under hydric variations. The model parameters are determined according to an original experimental campaign, which is conducted on various mixes of a single type of clay (kaolinite) and of sand, and water. The experimental study provides some mechanical properties of the mixes versus water content and sand content to test the ability of the homogenization model to assess the main properties of this material.

• Periodical: Construction Technologies and Architecture (Volume 1)
• Pages: 293-302
• DOI: https://doi.org/10.4028/www.scientific.net/CTA.1.293
• Online since: January 2022
• Authors: Elsa Anglade*, Alain Sellier, Jean-Emmanuel Aubert, Aurélie Papon
• Keywords: Earth Construction Materials, Homogenization, Hydromechanics, Model

References

[1] Anger, R., 2011. Approche granulaire et colloïdale du matériau terre pour la construction.

[2] Anger, R., Fontaine, L., Joffroy, T., Eric, E.T., 2009. Construire en terre, une autre voie pour loger la planète. Grenoble.

[3] Biot, M.A., 1955. Theory of elasticity and considation for a porous anisotropic solid. J. Appl. Phys. 26, 182–185.

[4] Castañeda, P.P., 1991. The effective mechanical properties of nonlinear isotropic composites. J. Mech. Phys. Solids 39, 45–71.

[5] Coussy, O., Dormieux, L., Detournay, E., 1998. From mixture theory to Biot's appraoch for porous media. Int. J. Solids Struct. 35, 4619–4635.

DOI: 10.1016/s0020-7683(98)00087-0

[6] Dewey, J.M., 1947. The Elastic Constants of Materials Loaded with Non-Rigid Fillers. J. Appl. Phys. 18, 578–581.

DOI: 10.1063/1.1697691

[7] Eshelby, J.D., 1957. The determination of the elastic field of an ellipsoidal inclusion, and related problems. Proc. R. Soc. London 376–396.

[8] Houben, H., Guillaud, H., 1989. Traité de construction en terre, Editions P. ed. Grenoble. https://doi.org/10.1192/bjp.112.483.211-a.

[9] Leblond, J.B., Perrin, G., Suquet, P., 1994. Exact results and approximate models for porous viscoplastic solids. Int. J. Plast 10, 213–235. https://doi.org/10.1016/0749-6419(94)90001-9.

DOI: 10.1016/0749-6419(94)90001-9

[10] Maghous, S., Dormieux, L., Barthélémy, J.F., 2009. Micromechanical approach to the strength properties of frictional geomaterials. Eur. J. Mech 28, 179–188.

DOI: 10.1016/j.euromechsol.2008.03.002

[11] Moevus, M., Fontaine, L., Anger, R., 2012. Caractéristiques mécaniques, thermiques et hygrométriques du matériau terre crue : bilan de la littérature. Grenoble.

[12] Sellier, A., Vidal, T., Verdier, J., Bucher, R., 2018. Un nouveau critère de fissuration pour les matériaux hétérogènes soumis à des sollicitations multi-physiques, in: 36èmes Rencontres de l'AUGC. ENISE/LTDS, Saint Etienne.

[13] van Genuchten, M.T., 1980. A closed-form equation for predicting the hydraulic conductivity of unsaturated soil. Soil Sci. Soc. Am 44, 892–898.

DOI: 10.2136/sssaj1980.03615995004400050002x
