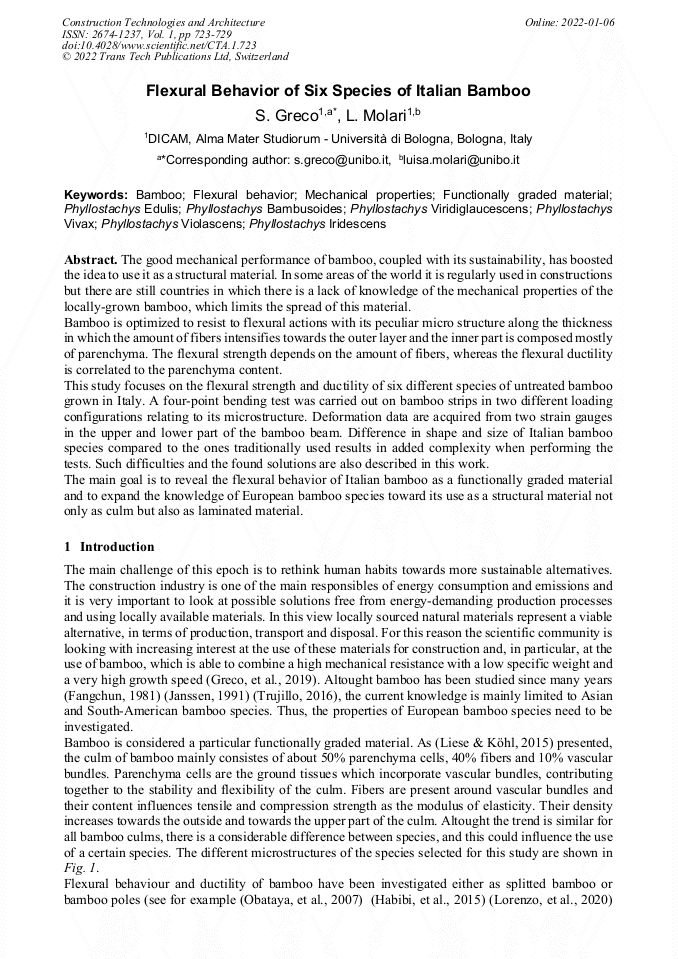

Flexural Behavior of Six Species of Italian Bamboo

Abstract:

The good mechanical performance of bamboo, coupled with its sustainability, has boosted the idea to use it as a structural material. In some areas of the world it is regularly used in constructions but there are still countries in which there is a lack of knowledge of the mechanical properties of the locally-grown bamboo, which limits the spread of this material. Bamboo is optimized to resist to flexural actions with its peculiar micro structure along the thickness in which the amount of fibers intensifies towards the outer layer and the inner part is composed mostly of parenchyma. The flexural strength depends on the amount of fibers, whereas the flexural ductility is correlated to the parenchyma content. This study focuses on the flexural strength and ductility of six different species of untreated bamboo grown in Italy. A four-point bending test was carried out on bamboo strips in two different loading configurations relating to its microstructure. Deformation data are acquired from two strain gauges in the upper and lower part of the bamboo beam. Difference in shape and size of Italian bamboo species compared to the ones traditionally used results in added complexity when performing the tests. Such difficulties and the found solutions are also described in this work. The main goal is to reveal the flexural behavior of Italian bamboo as a functionally graded material and to expand the knowledge of European bamboo species toward its use as a structural material not only as culm but also as laminated material.

• Periodical: Construction Technologies and Architecture (Volume 1)
• Pages: 723-729
• DOI: https://doi.org/10.4028/www.scientific.net/CTA.1.723
• Online since: January 2022
• Authors: Silvia Greco*, Luisa Molari
• Keywords: Bamboo, Flexural Behavior, Functionally Graded Material, Mechanical Properties, Phyllostachys bambusoides, Phyllostachys edulis, Phyllostachys iridescens, Phyllostachys violascens, Phyllostachys viridiglaucescens, Phyllostachys vivax

References

[1] Azadeh, et al., 2020. Static Flexural Behavior of Bamboo as a Functionally Graded Material and the Effect of. Journal of Building Engineering.

[2] Chen, G. et al., 2018. Flexural deformation and fracture behaviors of bamboo with gradient hierarchical fibrous structure and water content. Composites Science and Technology, pp.126-133.

DOI: 10.1016/j.compscitech.2018.01.034

[3] Chen, M., 2020. Flexural strength and ductility of moso bamboo. Construction and Building Materials.

[4] Chen, M. et al., 2020. In-situ investigation of deformation behaviors of moso bamboo cells pertaining to flexural ductility. Cellulose.

DOI: 10.1007/s10570-020-03414-0

[5] Fangchun, Z., 1981. Studies on Physical and Mecanical Properties of Bamboo wood. Journal of Nanjing Techn.

[6] Greco, S., Molari, L. & Maraldi, M., 2019. Assessing the mechanical properties of bamboo cultivated in Italy. Nairoby, Kenya, s.n.

[7] Habibi, M. et al., 2015. Asymmetric flexural behavior from bamboo's functionally graded hierarchical structure: Underlying mechanisms. Acta Biomateralia, February.

DOI: 10.1016/j.actbio.2015.01.038

[8] Janssen, J., 1991. Mechanical Properties of Bamboo. Dordecht, Nederlands: Kluwer Academic Publishers.

[9] Liese, W. & Köhl, M., 2015. Bamboo, the Plant and its Uses. Hamburg: Tropical Forestry.

DOI: 10.1007/978-3-319-14133-6

[10] Lorenzo, R., Mimendi, L., Li, H. & Yang, D., 2020. Bimodulus bending model for bamboo poles. Construction and building materials, Issue 262.

DOI: 10.1016/j.conbuildmat.2020.120876

[11] Molari, L., Mentrasti, L. & Fabiani, M., 2020. Mechanical characterization of five species of Italian bamboo. Structures, pp.59-72.

DOI: 10.1016/j.istruc.2019.12.022

[12] Obataya, E., Kitin, P. & Yamauchi, H., 2007. Bending characteristics of bamboo (Phyllostachys pubescens) with respect to its fiber-foam composite structure. June, Issue 41, pp.385-400.

DOI: 10.1007/s00226-007-0127-8

[13] Trujillo, L., 2016. Bamboo material characterisation. Nonconventional and Vernacular Construction Materials, pp.365-392.

DOI: 10.1016/b978-0-08-100038-0.00013-5

[14] Wei, X., Zhou, H., Chen, F. & Wang, G., 2019. Bending Flexibility of Moso Bamboo (Phyllostachys Edulis) with Functionally Graded Structure. Materials, 12(12).

DOI: 10.3390/ma12122007
