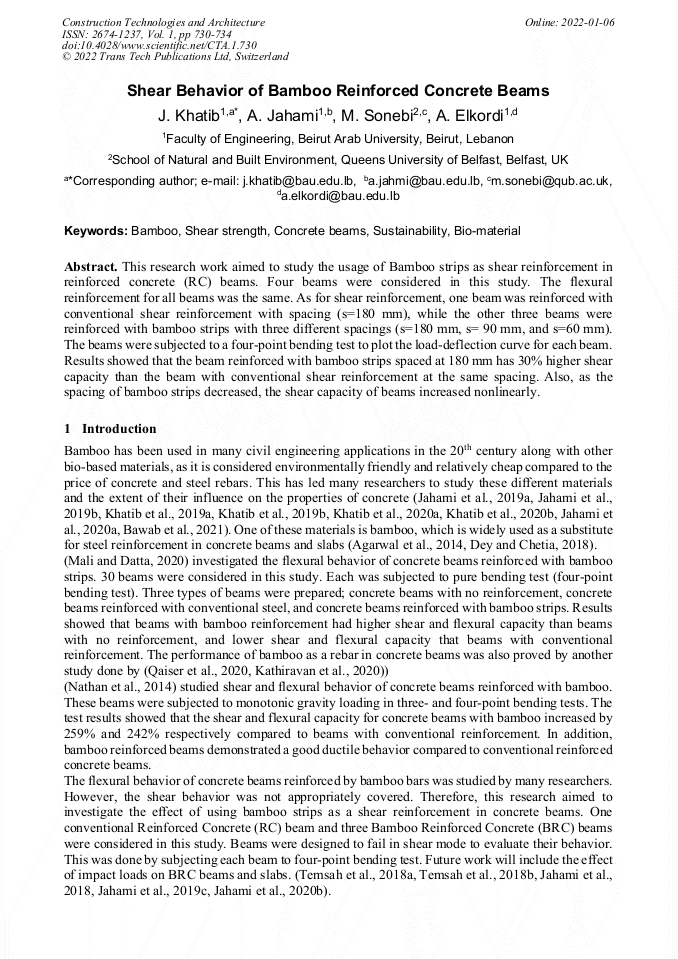

Shear Behavior of Bamboo Reinforced Concrete Beams

Abstract:

This research work aimed to study the usage of Bamboo strips as shear reinforcement in reinforced concrete (RC) beams. Four beams were considered in this study. The flexural reinforcement for all beams was the same. As for shear reinforcement, one beam was reinforced with conventional shear reinforcement with spacing (s=180 mm), while the other three beams were reinforced with bamboo strips with three different spacings (s=180 mm, s= 90 mm, and s=60 mm). The beams were subjected to a four-point bending test to plot the load-deflection curve for each beam. Results showed that the beam reinforced with bamboo strips spaced at 180 mm has 30% higher shear capacity than the beam with conventional shear reinforcement at the same spacing. Also, as the spacing of bamboo strips decreased, the shear capacity of beams increased nonlinearly.

• Periodical: Construction Technologies and Architecture (Volume 1)
• Pages: 730-734
• DOI: https://doi.org/10.4028/www.scientific.net/CTA.1.730
• Online since: January 2022
• Authors: J. Khatib*, Ali Hussein Jahami, Mohammed Sonebi, Adel Elkordi
• Keywords: Bamboo, Bio-Material, Concrete Beams, Shear Strength, Sustainability

References

[1] Agarwal, A., Nanda, B. and Maity, D., 2014. Experimental investigation on chemically treated bamboo reinforced concrete beams and columns. Construction and Building Materials, 71, pp.610-617.

DOI: 10.1016/j.conbuildmat.2014.09.011

[2] Bawab, J., Khatib, J., Jahami, A., Elkordi, A., Ghorbel, E., 2021. Structural Performance of Reinforced Concrete Beams Incorporating Cathode-Ray Tube (CRT) Glass Waste. Buildings. 11(2), 67. https://doi.org/10.3390/buildings11020067.

DOI: 10.3390/buildings11020067

[3] Dey, A. and Chetia, N., 2018. Experimental study of Bamboo Reinforced Concrete beams having various frictional properties. Materials Today: Proceedings, 5(1), pp.436-444.

DOI: 10.1016/j.matpr.2017.11.103

[4] Jahami, A., Khatib, J., Baalbaki, O. & Sonebi, M., 2019. Prediction of deflection in reinforced concrete beams containing plastic waste. 3rd International Conference on Bio-Based Building Materials pp.551-555. Belfast, UK.

DOI: 10.2139/ssrn.3510113

[5] Jahami, A., Khatib, J., & Firat, S., 2019. Load deflection characteristics of reinforced concrete beams incorporating fibers made of waste plastic straw. In 2nd International Turkish World Engineering and Science Congress (pp.326-332). Antalya.

[6] Jahami, A., Khatib, J., Bakri, A., Alaina, R., & Lushnikova, N., 2020. Study of the Influence of Waste Plastic Straw Fibers on Concrete Properties. Available at SSRN: https://ssrn.com/abstract=3560342.

DOI: 10.2139/ssrn.3560342

[7] Jahami, A., Temsah, Y., Khatib J., Sonebi M., 2018. Numerical Study For The Effect of Carbon Fiber Reinforced Polymers (CFRP) Sheets on Structural Behavior of Posttensioned Slab Subjected to Impact Loading, Proceedings of the Symposium on Concrete Modelling – CONMOD2018 , RILEM PRO 127, Edited by Erik Schlangen et al., pp.259-267.

[8] Jahami, A., Temsah, Y., & Khatib, J., 2019. The efficiency of using CFRP as a strengthening technique for reinforced concrete beams subjected to blast loading. International Journal Of Advanced Structural Engineering, 11(4), 411-420.

DOI: 10.1007/s40091-019-00242-w

[9] Jahami, A., Temsah, Y., Khatib, J., Baalbaki, O., Darwiche, M., Chaaban, S., 2020. Impact behavior of rehabilitated post-tensioned slabs previously damaged by impact loading. Magazine of Civil Engineering. 93(1). Pp. 134–146.

DOI: 10.1016/j.jobe.2020.101207

[10] Kathiravan, N., Manojkumar, R., Jayakumar, P., Kumaraguru, J. and Jayanthi, V., 2020. State of art of review on bamboo reinforced concrete. Materials Today: Proceedings.

DOI: 10.1016/j.matpr.2020.03.159

[11] Khatib, J., Jahami, A. & Baalbaki, O., 2019. Flexural characteristics of reinforced concrete beams containing lightweight aggregate in the tensile zone. Fifth International Conference on Sustainable Construction Materials and Technologies, Kingston University, London, UK. ISSN 2515-3048 (Print), ISSN 2515-3056 (Online).

DOI: 10.18552/2019/idscmt5170

[12] Khatib, J., Jahami, A., Elkordi, A., Baalbaki, O., 2019. Structural performance of reinforced concrete beams containing plastic waste caps. Magazine of Civil Engineering. 91(7). Pp. 73–79.

DOI: 10.2139/ssrn.3510113

[13] Khatib, J., Jahami, A., Baalbaki, O., Elkordi, A., Bakri, A., & Alaina, R., 2020. Performance of concrete containing waste plastic straw fibers. BAU Journal - Science and Technology: Vol. 1 : Iss. 2 , Article 5. Available at: https://digitalcommons.bau.edu.lb/stjournal/vol1/iss2/5.

DOI: 10.2139/ssrn.3560342

[14] Khatib, J., Jahami, A., Baalbaki, O., Elkordi, A., & Abdelgader, H., 2020. Behavior of reinforced concrete beams containing lightweight aggregate in the tensile zone. BAU Journal - Science and Technology: Vol. 1: Iss. 2, Article 3. Available at: https://digitalcommons.bau.edu.lb/ stjournal/vol1/iss2/3.

DOI: 10.2139/ssrn.3523048

[15] Mali, P. and Datta, D., 2020. Experimental evaluation of bamboo reinforced concrete beams. Journal of Building Engineering, 28, p.101071.

DOI: 10.1016/j.jobe.2019.101071

[16] Nathan, S., Weichiang, P., and MengzheGu, 2014. Application of Bamboo for Flexural and Shear Reinforcement in Concrete Beams, Structures Congress.

[17] Qaiser, S., Hameed, A., Alyousef, R., Aslam, F. and Alabduljabbar, H., 2020. Flexural strength improvement in bamboo reinforced concrete beams subjected to pure bending. Journal of Building Engineering, 31, p.101289.

DOI: 10.1016/j.jobe.2020.101289

[18] Temsah, Y., Jahami, A., Khatib, J., & Sonebi, M., 2018. Numerical analysis of a reinforced concrete beam under blast loading. MATEC Web of Conferences, 149, 02063. doi: 10.1051/ matecconf/201814902063.

DOI: 10.1051/matecconf/201814902063

[19] Temsah, Y., Jahami, A., Khatib, J., & Sonebi, M., 2018. Numerical Derivation of Iso-Damaged Curve for a Reinforced Concrete Beam Subjected to Blast Loading. MATEC Web Of Conferences, 149, 02016.

DOI: 10.1051/matecconf/201814902016
