Effects of Nickel on Interface Morphology during Oxidation of Fe-Cu-Ni Alloys

Abstract:

Article Preview

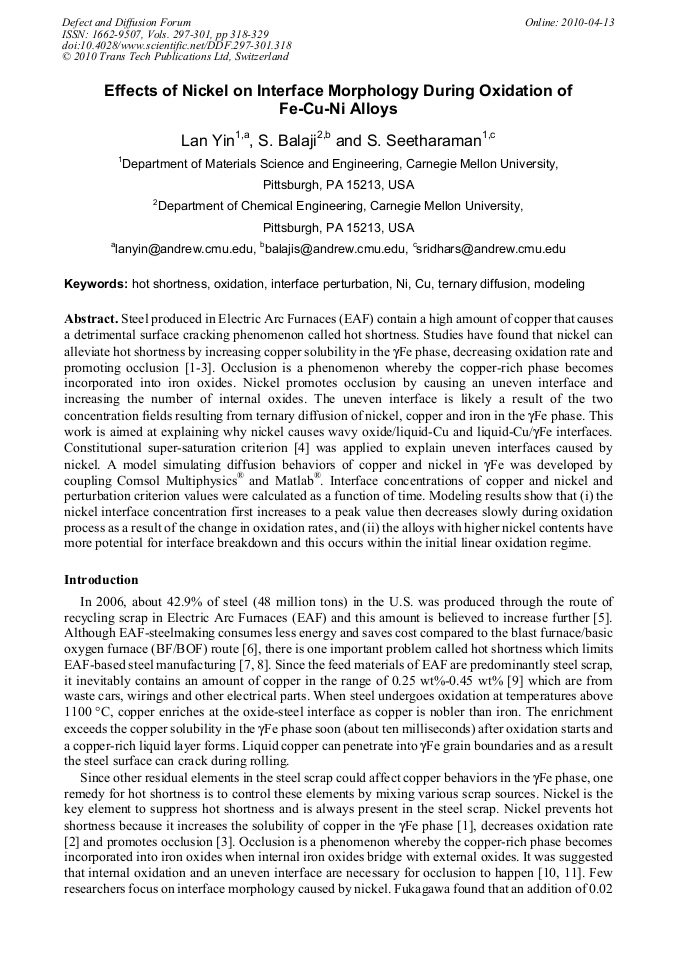

Steel produced in Electric Arc Furnaces (EAF) contain a high amount of copper that causes a detrimental surface cracking phenomenon called hot shortness. Studies have found that nickel can alleviate hot shortness by increasing copper solubility in the Fe phase, decreasing oxidation rate and promoting occlusion [1-3]. Occlusion is a phenomenon whereby the copper-rich phase becomes incorporated into iron oxides. Nickel promotes occlusion by causing an uneven interface and increasing the number of internal oxides. The uneven interface is likely a result of the two concentration fields resulting from ternary diffusion of nickel, copper and iron in the Fe phase. This work is aimed at explaining why nickel causes wavy oxide/liquid-Cu and liquid-Cu/Fe interfaces. Constitutional super-saturation criterion [4] was applied to explain uneven interfaces caused by nickel. A model simulating diffusion behaviors of copper and nickel in Fe was developed by coupling Comsol Multiphysics® and Matlab®. Interface concentrations of copper and nickel and perturbation criterion values were calculated as a function of time. Modeling results show that (i) the nickel interface concentration first increases to a peak value then decreases slowly during oxidation process as a result of the change in oxidation rates, and (ii) the alloys with higher nickel contents have more potential for interface breakdown and this occurs within the initial linear oxidation regime.

Info:

Periodical:

Defect and Diffusion Forum (Volumes 297-301)

Edited by:

Andreas Öchsner, Graeme E. Murch, Ali Shokuhfar and João M.P.Q. Delgado

Pages:

318-329

DOI:

10.4028/www.scientific.net/DDF.297-301.318

Citation:

L. Yin et al., "Effects of Nickel on Interface Morphology during Oxidation of Fe-Cu-Ni Alloys", Defect and Diffusion Forum, Vols. 297-301, pp. 318-329, 2010

Online since:

April 2010

Export:

Price:

$35.00

In order to see related information, you need to Login.

In order to see related information, you need to Login.
