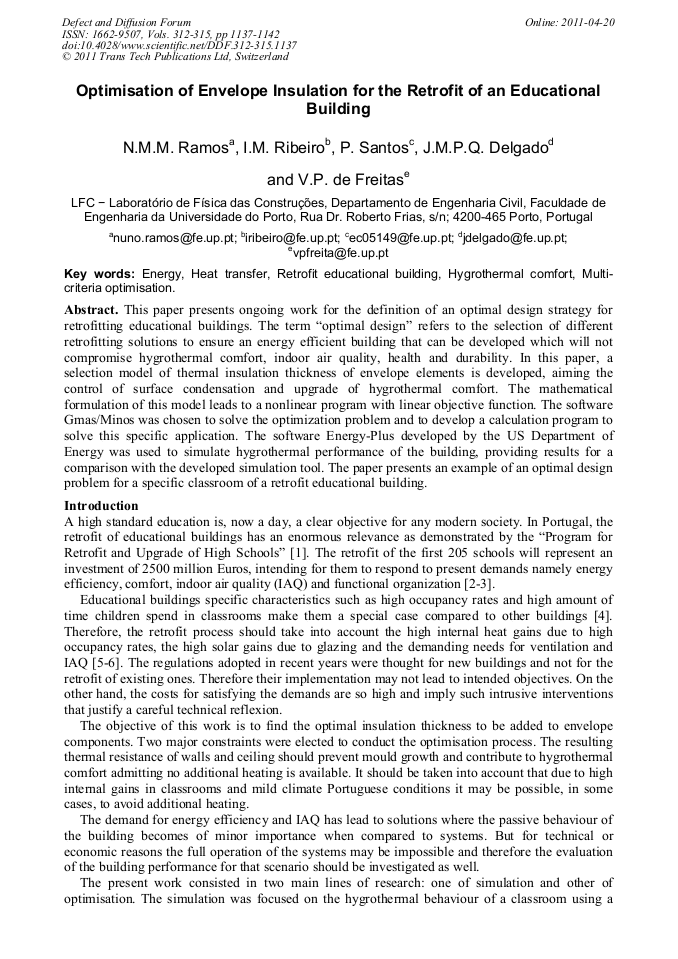

Optimisation of Envelope Insulation for the Retrofit of an Educational Building

Abstract:

This paper presents ongoing work for the definition of an optimal design strategy for retrofitting educational buildings. The term “optimal design” refers to the selection of different retrofitting solutions to ensure an energy efficient building that can be developed which will not compromise hygrothermal comfort, indoor air quality, health and durability. In this paper, a selection model of thermal insulation thickness of envelope elements is developed, aiming the control of surface condensation and upgrade of hygrothermal comfort. The mathematical formulation of this model leads to a nonlinear program with linear objective function. The software Gmas/Minos was chosen to solve the optimization problem and to develop a calculation program to solve this specific application. The software Energy-Plus developed by the US Department of Energy was used to simulate hygrothermal performance of the building, providing results for a comparison with the developed simulation tool. The paper presents an example of an optimal design problem for a specific classroom of a retrofit educational building.

• Periodical: Defect and Diffusion Forum (Volumes 312-315)
• Pages: 1137-1142
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.312-315.1137
• Online since: April 2011
• Authors: N.M.M. Ramos, I.M. Ribeiro, P. Santos, João M.P.Q. Delgado, V.P. de Freitas
• Keywords: Energy, Heat Transfer, Hygrothermal Comfort, Multi-Criteria Optimisation, Retrofit Educational Building

References

[1] Programa de Modernização das Escolas do Ensino Secundário: Resolução do Conselho de Ministros nº1/2007. (in Portuguese).

[2] DL nº 78/2006: Sistema nacional de certificação energética e da qualidade do ar interior nos edifícios (Diário da República, I Série-A, Abril, Lisboa, 2006). (in Portuguese).

DOI: 10.26537/neutroaterra.v0i1.275

[3] DL nº 79/200: Regulamento dos sistemas energéticos de climatização dos edifícios (RSECE) (Diário da República, I Série-A, Abril, Lisboa, 2006). (in Portuguese).

[4] D. Grimsrud, B. Bridges and R. Schlte: Build. Res. Inf. Vol. 24 (2006), p.447.

[5] A. Holm, R. Hellwig and K. Sedlbauer: Retrofitting of a school with an integral aspect (Proceedings of the 8th Nordic symposium of Building Physics, 2008).

[6] V.P. Freitas: Educational building retrofitting (Proceedings of the 3rd International Symposium on Building Pathology, Durability and Rehabilitation-PATORREB 2009, Portugal, 2009).

[7] Energy-Plus: Engineering reference (in EnergyPlus Documentation Main Menu, 2009).

[8] D.B. Crawley, L.K. Lawrie, F.C. Winkelmann and C.O. Pedersen: ASHRAE J. Vol. 42 (2000), p.49.

[9] International Standard Organization: Ergonomics of the thermal environment analytical determination and interpretation of thermal comfort using calculation of the PMV and PPD indices and local thermal comfort criteria (ISO 7730, Switzerland, 2005).

DOI: 10.3403/30046382

[10] A. Broke, D. Kendrick, A. Meeraus and R. Raman: GAMS a User's Guide (GAMS Development Corporation. New York, 1998).

[11] S.M. Robinson: Mathematic. Program. Vol. 3 (1972), p.145.
