The Lateral Photovoltaic Effect in the Fe/SiO₂/ Si Structure with Different Silicon Conductivity Type

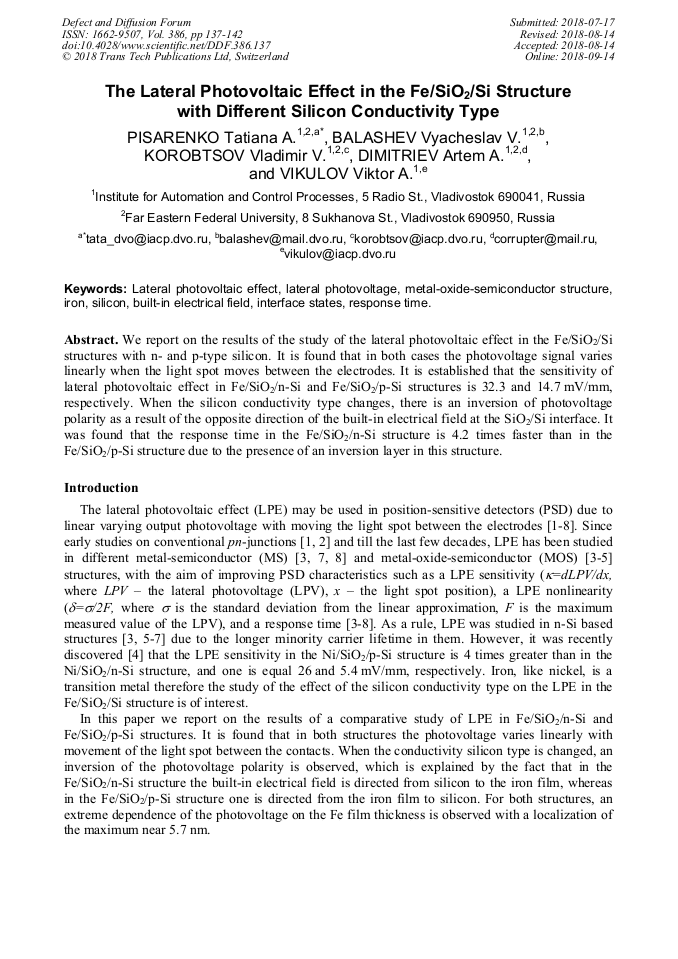

Article Preview

Abstract:

We report on the results of the study of the lateral photovoltaic effect in the Fe/SiO₂/Si structures with n-and p-type silicon. It is found that in both cases the photovoltage signal varies linearly when the light spot moves between the electrodes. It is established that the sensitivity of lateral photovoltaic effect in Fe/SiO₂/n-Si and Fe/SiO₂/р-Si structures is 32.3 and 14.7 mV/mm, respectively. When the silicon conductivity type changes, there is an inversion of photovoltage polarity as a result of the opposite direction of the built-in electrical field at the SiO₂/Si interface. It was found that the response time in the Fe/SiO₂/n-Si structure is 4.2 times faster than in the Fe/SiO₂/p-Si structure due to the presence of an inversion layer in this structure.

You might also be interested in these eBooks

Physics and Technology of Nanostructured Materials IV

Info:

Periodical:

Defect and Diffusion Forum (Volume 386)

Pages:

137-142

DOI:

https://doi.org/10.4028/www.scientific.net/DDF.386.137

Citation:

Cite this paper

Online since:

September 2018

Authors:

Tatiana A. Pisarenko*, Vyacheslav V. Balashev, Vladimir V. Korobtsov, Artem A. Dimitriev, Victor A. Vikulov

Keywords:

Built-In Electrical Field, Interface States, Iron, Lateral Photovoltage, Lateral Photovoltaic Effect, Metal-Oxide-Semiconductor Structure, Response Time, Silicon

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2018 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J.T. Wallmark, A new semiconductor photocell using lateral photoeffect, Proc. IRE. 45 (1957) 474-483.

DOI: 10.1109/jrproc.1957.278435

[2] G. Lucovsky, Photoefiects in nonuniformly irradiated p-n junctions, J. Appl. Phys. 31 (1960) 1088-1095.

[3] C. Yu, H. Wang, Large lateral photovoltaic effect in metal-(oxide-) semiconductor structures, Sensors 10 (2010) 10155-10180.

DOI: 10.3390/s101110155

[4] X. Huang, C. Mei, J. Hu, D. Zheng, Z. Gan, P. Zhou, H. Wang, Potential superiority of p-type silicon based metal-oxide-semiconductor structures over n-type for lateral photovoltaic effects, IEEE Electron Device Lett. 37 (2016) 1018-1022.

DOI: 10.1109/led.2016.2577700

[5] X. Wang, B. Song, M. Huo, Y. Song, Z. Lv, Y. Zhang, Y. Wang, Y. Song, J. Wen, Y. Sui, J. Tang, Fast and sensitive lateral photovoltaic effects in Fe3O4/Si Schottky junction, RSC Adv. 5 (2015) 65048-65051.

DOI: 10.1039/c5ra11872g

[6] B. Song, X. Wang, B. Li, L. Zhang, Z. Lv, Y. Zhang, Y. Wang, J. Tang, P. Xu, B. Li, Y. Yang, Y. Sui, B. Song, Near-ultraviolet lateral photovoltaic effect in Fe3O4/3C-SiC Schottky junctions, Opt. Express 24 (2016) 23755-23764.

DOI: 10.1364/oe.24.023755

[7] X. Wang, X. Zhao, C. Hu, Y. Zhang, B. Song, L. Zhang, W. Liu, Z. Lv, Y. Zhang, J. Tang, Y. Sui, B. Song, Large lateral photovoltaic effect with ultrafast relaxation time in SnSe/Si junction, Appl. Phys. Lett. 109 (2016) 23502-23507.

DOI: 10.1063/1.4955480

[8] G. Prestopino, M. Marinelli, E. Mitani, C. Verona, G. Verona-Rinati, Transient lateral photovoltaic effect in synthetic single crystal diamond, Appl. Phys. Lett. 111 (2017) 143504-143509.

DOI: 10.1063/1.4994120

[9] V.V. Balashev, V.V. Korobtsov, Structure of ultrathin polycrystalline iron films grown on SiO2/Si(001), Tech. Phys. 88 (2018) 73-77.

DOI: 10.1134/s106378421801005x

[10] S.M. Sze, Physics of Semiconductor Devices, third ed., Wiley, New York, (2007).

[11] H. B. Michaelson, The work function of the elements and its periodicity, J. Appl. Phys. 48, (1977) 4729-4733.

[12] H. Angermann, Conditioning of Si-interfaces by wet-chemical oxidation: Electronic interface properties study by surface photovoltage measurements, Appl. Surf. Sci. 312 (2014) 3-16.

DOI: 10.1016/j.apsusc.2014.05.087

[13] H. Kobayashi, A. Asuha, O. Maida, M. Takahashi, H. Iwasa, Nitric acid oxidation of Si to form ultrathin silicon dioxide layers with a low leakage current density, J. Appl. Phys. 94 (2003) 7328.

DOI: 10.1063/1.1621720

[14] A.M. Cowley, S.M. Sze, Surface states and barrier height of metal-semiconductor systems, J. Appl. Phys. 36 (1965) 3212-3220.

DOI: 10.1063/1.1702952

[15] C.R. Wronski, D.E. Carlson, Surface states and barrier heights of metal-amorphous silicon Schottky barriers, Solid State Commun. 23 (1977) 421-424.

DOI: 10.1016/0038-1098(77)90999-1

[16] E. Fortunato, G. Lavareda, R. Martins, F. Soares, L. Fernandes, Large-area 1D thin-film position-sensitive detector with high detection resolution, Sens. Actuat. A 51 (1996) 135-142.

DOI: 10.1016/0924-4247(95)01214-1
