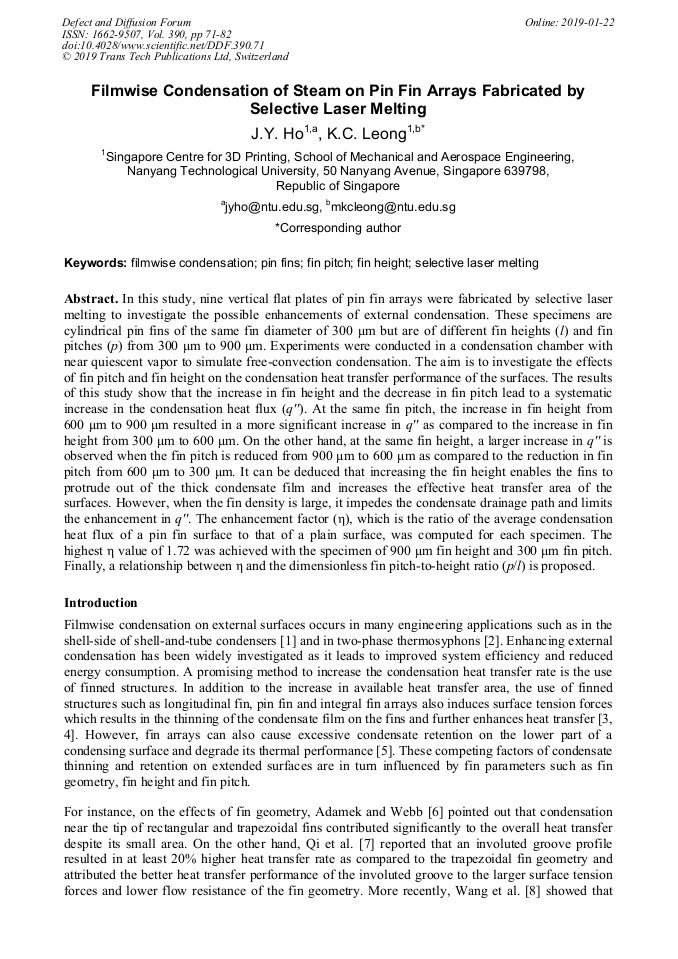

Filmwise Condensation of Steam on Pin Fin Arrays Fabricated by Selective Laser Melting

Abstract:

In this study, nine vertical flat plates of pin fin arrays were fabricated by selective laser melting to investigate the possible enhancements of external condensation. These specimens are cylindrical pin fins of the same fin diameter of 300 μm but are of different fin heights (l) and fin pitches (p) from 300 μm to 900 μm. Experiments were conducted in a condensation chamber with near quiescent vapor to simulate free-convection condensation. The aim is to investigate the effects of fin pitch and fin height on the condensation heat transfer performance of the surfaces. The results of this study show that the increase in fin height and the decrease in fin pitch lead to a systematic increase in the condensation heat flux (q''). At the same fin pitch, the increase in fin height from 600 μm to 900 μm resulted in a more significant increase in q'' as compared to the increase in fin height from 300 μm to 600 μm. On the other hand, at the same fin height, a larger increase in q'' is observed when the fin pitch is reduced from 900 μm to 600 μm as compared to the reduction in fin pitch from 600 μm to 300 μm. It can be deduced that increasing the fin height enables the fins to protrude out of the thick condensate film and increases the effective heat transfer area of the surfaces. However, when the fin density is large, it impedes the condensate drainage path and limits the enhancement in q''. The enhancement factor (η), which is the ratio of the average condensation heat flux of a pin fin surface to that of a plain surface, was computed for each specimen. The highest η value of 1.72 was achieved with the specimen of 900 μm fin height and 300 μm fin pitch. Finally, a relationship between η and the dimensionless fin pitch-to-height ratio (p/l) is proposed.

• Periodical: Defect and Diffusion Forum (Volume 390)
• Pages: 71-82
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.390.71
• Online since: January 2019
• Authors: J.Y. Ho, K.C. Leong
• Keywords: Filmwise Condensation, Fin Height, Fin Pitch, Pin Fins, Selective Laser Melting

References

[1] H. Honda, B. Uchima, S. Nozu, E. Torigoe, S. Imai, Film condensation of R-113 on staggered bundles of horizontal finned tubes, J. Heat Transf. 114 (1992) 442-449.

DOI: 10.1115/1.2911293

[2] L.W. Jin, K.C. Leong, I. Pranoto, H.Y. Li, J.C. Chai, Experimental study of a two-phase thermosyphon with porous graphite foam insert, J. Therm. Sci. Eng. Appl. 3 (2011) 024502-1-024502-6.

DOI: 10.1115/1.4003885

[3] R. Gregorig, Hautkondensation an feingewellten Oberflächen bei Berücksich-tigung der Oberflächenspannungen, Zeitschrift für angewandte Mathematik und Physik 5 (1954) 36-49 (in German).

DOI: 10.1007/bf01600263

[4] S. Hirasawa, K. Hijikata, Y. Mori, W. Nakayama, Effect of surface tension on condensate motion in laminar film condensation (study of liquid film in a small trough), Int. J. Heat Mass Transf. 23 (1980) 1471-1478.

DOI: 10.1016/0017-9310(80)90151-9

[5] H.M. Ali, An analytical model for prediction of condensate flooding on horizontal pin-fin tubes, Int. J Heat Mass Transf. 106 (2017) 1120-1124.

DOI: 10.1016/j.ijheatmasstransfer.2016.10.088

[6] T. Adamek, R.L. Webb, Prediction of film condensation on horizontal integral fin tubes, Int. J. Heat Mass Transf. 33 (1990) 1721-1735.

DOI: 10.1016/0017-9310(90)90027-r

[7] B. Qi, J. Wei, X. Li, Enhancement of condensation heat transfer on grooved surfaces: Numerical analysis and experimental study, Appl. Therm. Eng. 115 (2017) 1287-1297.

DOI: 10.1016/j.applthermaleng.2016.10.207

[8] X.W. Wang, K.C. Leong, T.N. Wong, Numerical analysis of different fluted fins for condensation on a vertical tube, Int. J. Therm. Sci. 122 (2017) 359-370.

DOI: 10.1016/j.ijthermalsci.2017.09.003

[9] T.M. Rudy, R.L. Webb, An analytical model to predict condensate retention on horizontal integral-fin tubes, J. Heat Transf. 107 (1985) 361-368.

DOI: 10.1115/1.3247423

[10] H.M. Ali, A. Briggs, Condensation of ethylene glycol on pin-fin tubes: Effect of circumferential pin spacing and thickness, Appl. Therm. Eng. 49 (2012) 9-13.

DOI: 10.1016/j.applthermaleng.2011.08.017

[11] H.M. Ali, A. Briggs, Condensation heat transfer on pin-fin tubes: Effect of thermal conductivity and pin height, Appl. Therm. Eng. 60 (2013) 465-471.

DOI: 10.1016/j.applthermaleng.2012.08.020

[12] J.Y. Ho, K.C. Leong, Filmwise condensation on micro-fin surfaces produced by Selective Laser Melting, Proceedings of the 13th International Conference on Heat Transfer, Fluid Mechanics and Thermodynamics (HEFAT2017), Portorož, Slovenia, (2017) 85-90.

[13] R.J. Moffat, Using uncertainty analysis in the planning of an experiment, J. Fluids Eng. 107 (1985) 173-178.

[14] W. Nusselt, Die Oberflachenkondensation des Wasserdampfes, VDI-Z. 60 (1916) 541-546 and 569-575 (in German).
