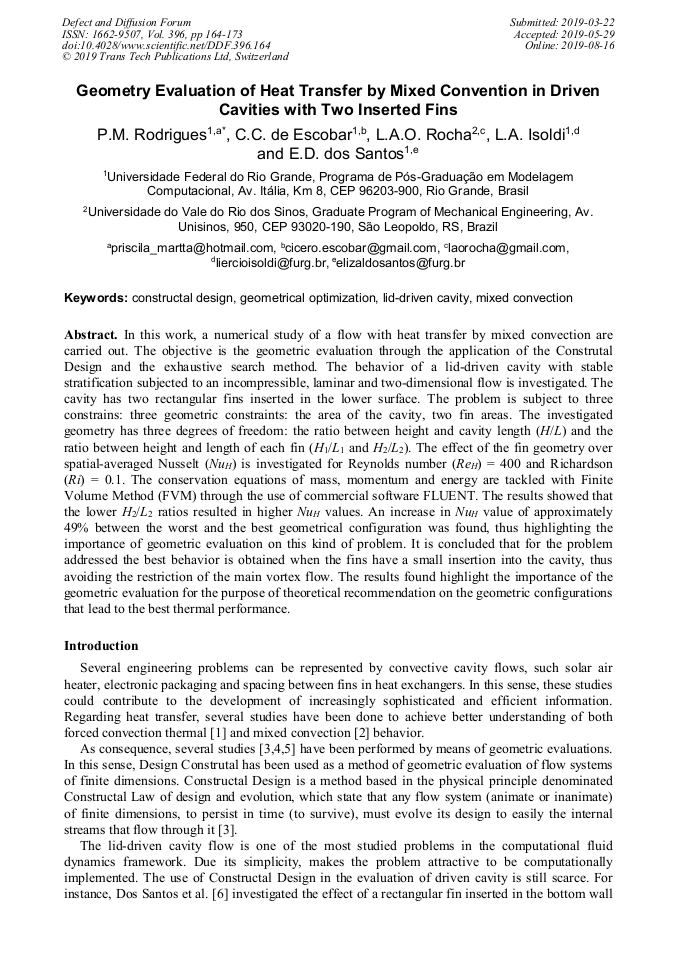

Geometry Evaluation of Heat Transfer by Mixed Convention in Driven Cavities with Two Inserted Fins

Abstract:

In this work, a numerical study of a flow with heat transfer by mixed convection are carried out. The objective is the geometric evaluation through the application of the Construtal Design and the exhaustive search method. The behavior of a lid-driven cavity with stable stratification subjected to an incompressible, laminar and two-dimensional flow is investigated. The cavity has two rectangular fins inserted in the lower surface. The problem is subject to three constrains: three geometric constraints: the area of the cavity, two fin areas. The investigated geometry has three degrees of freedom: the ratio between height and cavity length (H/L) and the ratio between height and length of each fin (H₁/L₁ and H₂/L₂). The effect of the fin geometry over spatial-averaged Nusselt (Nu_H) is investigated for Reynolds number (Re_H) = 400 and Richardson (Ri) = 0.1. The conservation equations of mass, momentum and energy are tackled with Finite Volume Method (FVM) through the use of commercial software FLUENT. The results showed that the lower H₂/L₂ ratios resulted in higher Nu_H values. An increase in Nu_H value of approximately 49% between the worst and the best geometrical configuration was found, thus highlighting the importance of geometric evaluation on this kind of problem. It is concluded that for the problem addressed the best behavior is obtained when the fins have a small insertion into the cavity, thus avoiding the restriction of the main vortex flow. The results found highlight the importance of the geometric evaluation for the purpose of theoretical recommendation on the geometric configurations that lead to the best thermal performance.

• Periodical: Defect and Diffusion Forum (Volume 396)
• Pages: 164-173
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.396.164
• Online since: August 2019
• Authors: Priscila M. Rodrigues*, Cicero C. de Escobar, Luiz Alberto Oliveira Rocha, Liércio André Isoldi, Elizaldo Domingues dos Santos
• Keywords: Constructal Design, Geometric Optimization, Lid-Driven Cavity, Mixed Convection

References

[1] M. Sheikholeslami, S.A. Shehzad, F. M., Abbasi, Z. Li, Nanofluid flow and forced convection heat transfer due to Lorentz forces in a porous lid driven cubic enclosure with hot obstacle. Comput. Methods Appl. Mech. Eng. 338 (2017) 491-505.

DOI: 10.1016/j.cma.2018.04.020

[2] K.M. Gangawane, B. Manikandan, Mixed convection characteristics in lid-driven cavity containing heated triangular block. Chin. J. Chem. Eng. 25 (2017) (10), 1381-1394.

DOI: 10.1016/j.cjche.2017.03.009

[3] A. Bejan, S. Lorente, Design with Constructal Theory. Wiley, Hoboken, (2008).

[4] A. Bejan, J. P Zane, Design in nature: how the constructal law governs evolution in biology, phisics, technology, and social organization (1st ed.) Doubleday, USA. (2012).

[5] J. C. Martins, M.M. Goulart, M. das N. Gomes, J. A. Souza, L. A.O Rocha, L. A. Isoldi, E. D. dos Santos, Geometric evaluation of the main operational principle of an overtopping wave energy converter by means of Constructal Design. Renew Energy 118 (2018) 727-741. doi:https://doi.org/10.1016/j.renene.2017.11.061.

DOI: 10.1016/j.renene.2017.11.061

[6] E. D. dos Santos, L. A. Isoldi, J. A. Souza, M.M. Goulart, M. K. Rodrigues, F.M. Seibt, L.A.O. Rocha, Constructal Design of a Rectangular Fin Intruded into Forced Convective Lid-Driven Cavity Flows. Proc. Construction Law Conference, Nanjing, p.126–134, (2013).

DOI: 10.1115/1.4033378

[7] E.S. Aldrighi, P.M. Rodrigues, A. Rodriguez, B. D., Isoldi, L. A., Rocha, L. A. O., & dos Santos, E. D. Constructal Design of Rectangular Fin Intruded into Different Surfaces of Forced Convective Lid-Driven Cavity Flow. Int. J. Fluid Mech. Research 43 (2016) (5-6), 418-440. doi: https://10.1615/InterJFluidMechRes.v43.i5-6.50.

DOI: 10.1615/interjfluidmechres.v43.i5-6.50

[8] A.L. Razera, R.J.C. da Fonseca, L.A. Isoldi, E.D. dos Santos, L.A.O. Rocha, C. Biserni, Constructal design of a semi-elliptical fin inserted in a lid-driven square cavity with mixed convection. Int. J. Heat Mass Transf. (2016) 126, 81-94. doi:https://doi.org/10.1016/j.ijheatmasstransfer.2018.05.157.

DOI: 10.1016/j.ijheatmasstransfer.2018.05.157

[9] A. Bejan, Convection Heat Transfer, Wiley, Hoboken, NJ, (2013).

[10] H.K. Versteeg, W. Malalasekera, An Introduction to Computational Fluid Dynamics: The Finite Volume Method, Pearson, (2007).

[11] ANSYS. 14.0. – FLUENT User's Guide, ANSYS Inc., (2011).

[12] E. D. Dos Santos, G. L. Piccoli, F.H.R. França, A.P. Petry. Analysis of mixed convection in transient laminar and turbulent flows in driven cavities. Int. J. Heat and Mass Transf. 54 (2011) (21), 4585-4595.

DOI: 10.1016/j.ijheatmasstransfer.2011.06.019

[13] T.H. Ji, S.Y. Kim, J.M. Hyun Transient mixed convection in an enclosure driven by a sliding lid. Heat and Mass Transf. (2007) 43 (7), 629.

DOI: 10.1007/s00231-006-0113-y
