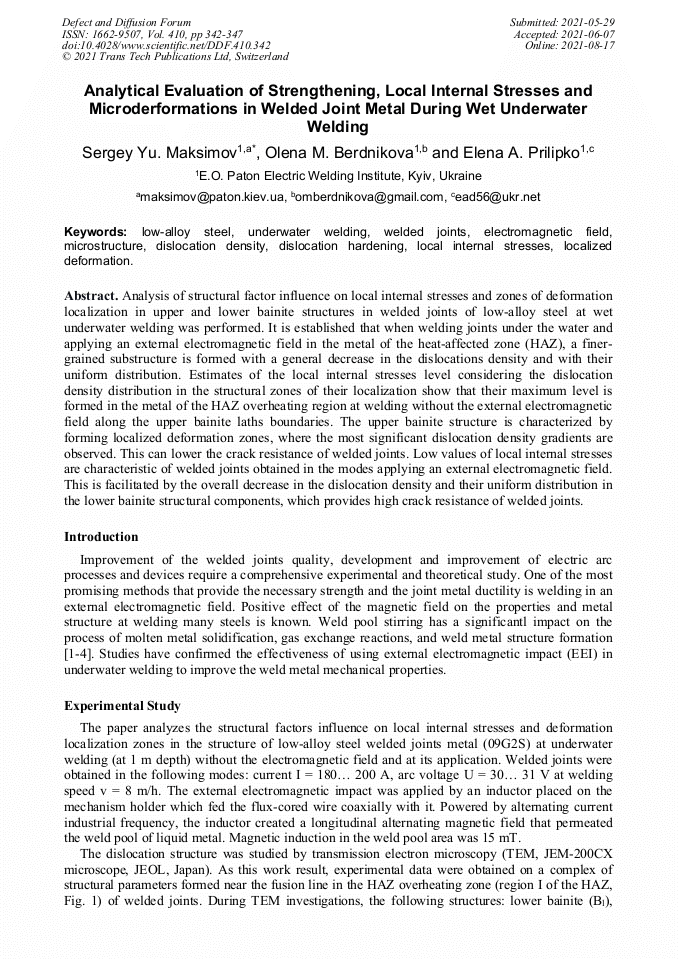

Analytical Evaluation of Strengthening, Local Internal Stresses and Microderformations in Welded Joint Metal during Wet Underwater Welding

Abstract:

Analysis of structural factor influence on local internal stresses and zones of deformation localization in upper and lower bainite structures in welded joints of low-alloy steel at wet underwater welding was performed. It is established that when welding joints under the water and applying an external electromagnetic field in the metal of the heat-affected zone (HAZ), a finer-grained substructure is formed with a general decrease in the dislocations density and with their uniform distribution. Estimates of the local internal stresses level considering the dislocation density distribution in the structural zones of their localization show that their maximum level is formed in the metal of the HAZ overheating region at welding without the external electromagnetic field along the upper bainite laths boundaries. The upper bainite structure is characterized by forming localized deformation zones, where the most significant dislocation density gradients are observed. This can lower the crack resistance of welded joints. Low values of local internal stresses are characteristic of welded joints obtained in the modes applying an external electromagnetic field. This is facilitated by the overall decrease in the dislocation density and their uniform distribution in the lower bainite structural components, which provides high crack resistance of welded joints.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 342-347
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.342
• Online since: August 2021
• Authors: Sergii Maksymov*, Olena M. Berdnikova, Olena A. Prilipko
• Keywords: Dislocation Density, Dislocation Hardening, Electromagnetic Field, Local Internal Stresses, Localized Deformation, Low-Alloy Steel, Microstructure, Underwater Welding, Welded Joint

References

[1] V.P. Chernysh, Electromagnetic Stirring Welding Equipment, Vyshcha Shkola, (1984).

[2] S.Yu. Maksimov, E.A. Prilipko, V.I. Kozhuhar and R.N. Ryzhov, Influence of external electromagnetic influence on hydrogen content in wet underwater welding, Avtomaticheskaya Svarka. 6 (2003) 55-56.

[3] S.Yu. Maksimov, E.A. Prilipko, V.I. Kozhuhar and R.N. Ryzhov, Influence of external electromagnetic influences on the microstructure and chemical composition of welds during underwater wet welding, Avtomaticheskaya Svarka. 11 (2005) 41-42.

[4] N.V. Zaytseva, S.M. Zaharov, S.Yu. Maksimov and E.A. Prilipko, Underwater welding in an alternating magnetic field, Metallofizika I NoveishieTekhnologii. 11 (2009) 1589-1596.

[5] M.I. Goldshtein, V.S. Litvinov and B.M. Bronfin, Metal Physics of High-Strength Alloys, Metallurgy, Moscow, (1986).

[6] E.V. Kozlov, N.A. Koreneva and Y.F. Popova, Grain structure, geometrically necessary dislocations and particles of second phases in micro- and meso-level polycrystals, Physical Mesomechanics. 12(4) (2009) 93-106.

DOI: 10.1016/j.physme.2009.12.010

[7] O.M. Ivasishin, S.V. Akhonin, D.G. Savvakin et al., Effect of microstructure, deformation mode and rate on mechanical behaviour of electron-beam melted Ti-6Al-4V and Ti-1.5Al-6.8Mo-4.5Fe alloys, Progress in Physics of Metals. 19(3) (2018) 309-336.

DOI: 10.15407/ufm.19.03.309

[8] V.M. Faber, B.Z. Belenkiy and V.I. Goldshtan, Evaluation of the strength of low-carbon low-alloy steels from structural data, Physics of Metals and Metal Science. 3(2) (1975) 403-409.

[9] V.S. Ivanova, L.K. Gordienko and V.N. Geminov, The Role of Dislocations in the Strengthening and Destruction of Metals, Science, Moscow, (1965).

[10] O. Berdnikova, V. Pozniakov, A. Bernatskyi et al., Effect of the structure on the mechanical properties and cracking resistance of welded joints of low-alloyed high-strength steels, Procedia Structural Integrity. 16 (2019) 89-96.

DOI: 10.1016/j.prostr.2019.07.026

[11] О.P. Ostash, R.V. Chepil', L.І. Markashova et al., Influence of the modes of heat treatment on the durability of springs made of 65G steel, Materials Science. 53(5) (2018) 684-690.

DOI: 10.1007/s11003-018-0124-0

[12] V.D. Poznyakov, L.I. Markashova, V.D. Shelyagin et al., Cold cracking resistance of butt joints in high-strength steels with different welding techniques, Strength of Materials. 51(6) (2019) 843-851.

DOI: 10.1007/s11223-020-00132-7

[13] A.V. Boiko, L.N. Karpenko, A.A. Lebedev et al., Calculation-experimental method for determining crack resistance of materials under biaxial loading, Engineering Fracture Mechanics. 64(2) (1999) 203-215.

DOI: 10.1016/s0013-7944(99)00064-8

[14] L.I. Markashova, V.D. Poznyakov, A.A. Gaivoronskii et al., Estimation of the strength and crack resistance of the metal of railway wheels after long-term operation, Fiz.-Khim. Mekh. Mater. 47(6) (2011) 73-79.

DOI: 10.1007/s11003-012-9458-1
