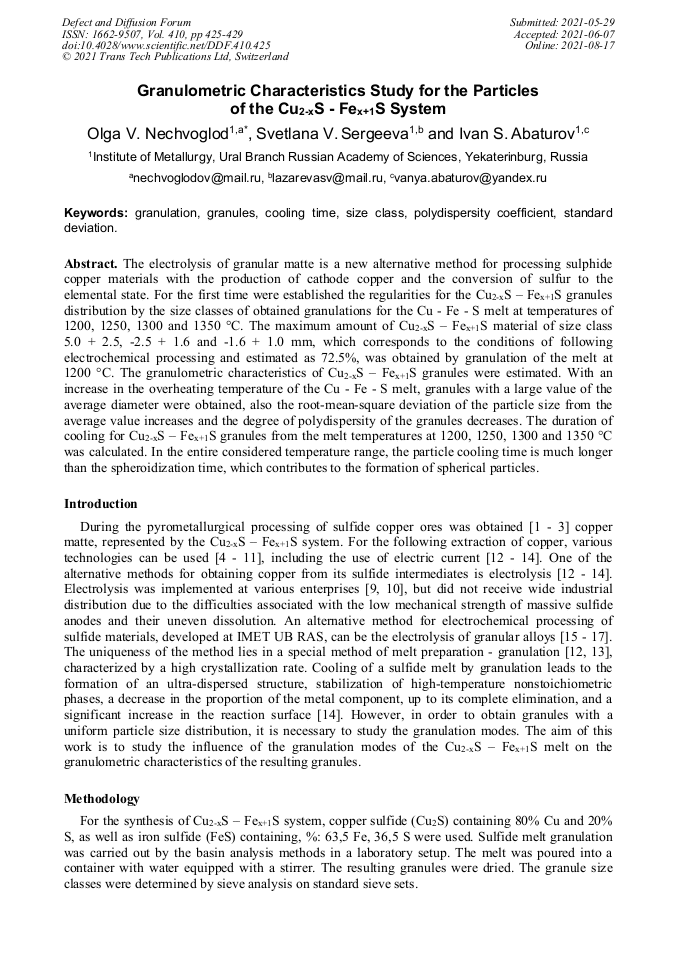

Granulometric Characteristics Study for the Particles of the Cu_2-xS - Fe_x+1S System

Abstract:

The electrolysis of granular matte is a new alternative method for processing sulphide copper materials with the production of cathode copper and the conversion of sulfur to the elemental state. For the first time were established the regularities for the Cu_2-xS – Fe_x+1S granules distribution by the size classes of obtained granulations for the Cu - Fe - S melt at temperatures of 1200, 1250, 1300 and 1350 °C. The maximum amount of Cu_2-xS – Fe_x+1S material of size class 5.0 + 2.5, -2.5 + 1.6 and-1.6 + 1.0 mm, which corresponds to the conditions of following electrochemical processing and estimated as 72.5%, was obtained by granulation of the melt at 1200 °C. The granulometric characteristics of Cu_2-xS – Fe_x+1S granules were estimated. With an increase in the overheating temperature of the Cu - Fe - S melt, granules with a large value of the average diameter were obtained, also the root-mean-square deviation of the particle size from the average value increases and the degree of polydispersity of the granules decreases. The duration of cooling for Cu_2-xS – Fe_x+1S granules from the melt temperatures at 1200, 1250, 1300 and 1350 °C was calculated. In the entire considered temperature range, the particle cooling time is much longer than the spheroidization time, which contributes to the formation of spherical particles.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 425-429
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.425
• Online since: August 2021
• Authors: Olga Vladimirovna Nechvoglod*, Svetlana V. Sergeeva, Ivan S. Abaturov
• Keywords: Cooling Time, Granulation, Granule, Polydispersity Coefficient, Size Class, Standard Deviation

References

[1] R.R. Moskalyk, A.M. Alfantazi, Review of copper pyrometallurgical practice: today and tomorrow, Minerals Engineering. 16 (2003) 893-919.

DOI: 10.1016/j.mineng.2003.08.002

[2] K.B. Pedersen, P.E. Jensen, L.M. Ottosen, A. Evenset, G.N. Christensen, M. Frantzen, Metal speciation of historic and new copper mine tailings from Repparfjorden, Northern Norway, before and after acid, base and electrodialytic extraction, Minerals Engineering. 107 (2017) 100-111.

DOI: 10.1016/j.mineng.2016.10.009

[3] M. Wang, W. Chen, X. Li, Substance flow analysis of copper in production stage in the U.S. from 1974 to 2012, Resources, Conservation and Recycling. 105 (2015) 36-48.

DOI: 10.1016/j.resconrec.2015.10.012

[4] F. Habashi and A.D. Bas, Electrochemistry and mineral dissolution, IMPC 2016: XXVIII International Mineral Processing Congress Proceedings. (2016) 1-10.

[5] T. Mizoguchi, F. Habashi, The aqueous oxidation of complex sulfide concentrates in hydrochloric acid, Int. J. of Mineral Processing. 8 (1981) 177-193.

DOI: 10.1016/0301-7516(81)90036-3

[6] F. Letowski, B. Kolodziej, M. Czernecki, A. Jedrczak, Z. Adamski, A new hydrometallurgical method for the processing of copper concentrates using ferric sulphate, Hydrometallurgy. 4 (1979) 169-184.

DOI: 10.1016/0304-386x(79)90045-8

[7] B. Xu, H. Zhong, T. Jiang, Recovery of valuable metals from Gacun complex copper concentrate by two-stage countercurrent oxygen pressure acid leaching process, Minerals Engineering. 24 (2011) 1082-1083.

DOI: 10.1016/j.mineng.2011.04.022

[8] O. Hyvarinen, M. Hamalainen, HydroCopperTM – a new technology producing copper directly from concentrate, Hydrometallurgy. 77 (2005) 61-65.

DOI: 10.1016/j.hydromet.2004.09.011

[9] D. Dreisinger, Copper leaching from primary sulfides: options for biological and chemical extraction of copper, Hydrometallurgy. 83 (2006) 10-20.

DOI: 10.1016/j.hydromet.2006.03.032

[10] Y. Sheng-hua, W. Ai-xiang, Q. Guan-Zhou, Bioleaching of low-grade copper sulphides, Trans. Nonferrous Met. Soc. China. 18 (2008) 707-713.

DOI: 10.1016/s1003-6326(08)60122-3

[11] B. Jin, X. Yang, Q. Shen, Pressure oxidative leaching of lead-containing copper matte, Hydrometallurgy. 96 (2009) 57-61.

DOI: 10.1016/j.hydromet.2008.08.005

[12] S.M. Abd El Haleem, E.E. Din Abd El Aal, Electrochemical reduction of the corrosion products formed on copper surface in alkaline-sulphide solutions, J. of Alloys and Compounds. 432 (2007) 205-210.

DOI: 10.1016/j.jallcom.2006.05.099

[13] L. Kartal, S. Timur, Electrolytic production of Cu−Ni alloys in CaCl2−Cu2S−NiS molten salt, Trans. Nonferrous Met. Soc. China. 28 (2018) 2143-2150.

DOI: 10.1016/s1003-6326(18)64859-9

[14] Z. Lu, J. Tang, M. de Lourdes Mendosa, D. Chang, L. Cai, L. Zhang, Electrochemical decrease of sulfide in sewage by pulsed power supply, J. of Electroanalitical Chemistry. 745 (2015) 37-43.

DOI: 10.1016/j.jelechem.2015.02.014

[15] E.N. Selivanov, O.V. Nechvoglod, L.Yu. Udoeva and others, RF patent 2,434,065. (2011).

[16] E.N. Selivanov, O.V. Nechvoglod, V.G. Lobanov, The effect of the nickel sulphide alloys structure on their electrochemical oxidation parameters, IFAC Proceedings. (2013) 259-262.

DOI: 10.3182/20130825-4-us-2038.00098

[17] O.V. Nechvoglod, E.N. Selivanov, S.V. Mamyachenkov, The electrolysis of granulated copper-nickel matte. Fray International Symposium. Metals and materials Processing in Clean Environment. Aqueous, Low Temperatures and Electrochemical Processing. (2012) 601-620.

[18] S.S. Naboichenko, Non-Ferrous Metal Powders, Moscow, (1997).

[19] A.V. Vanyukov, V.Ya. Zaitsev, The Theory of Metallurgical Processes, Moscow, (1993).

[20] S.E. Vaysburd, Physicochemical Properties and Structural Features of Sulfide Melts, Moscow, (1996).
