Scaling Methodology for Large Boring Bars with Tuned Mass Dampers

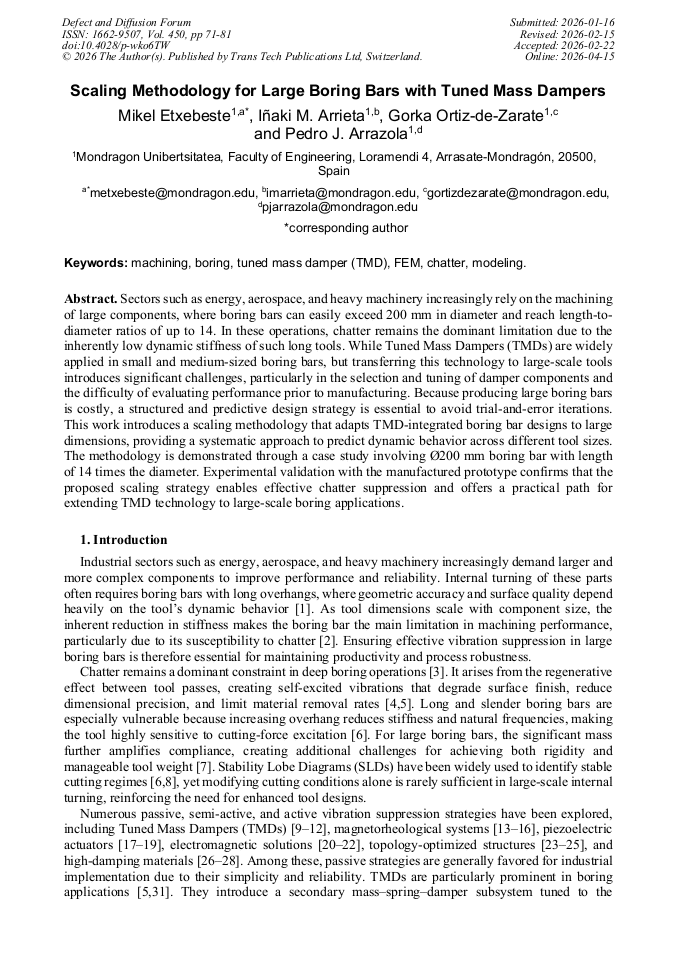

Article Preview

View Pdf By email

Abstract:
