Influence of the Crystal Structure of AlCrN on Tool Coating Properties and Wear in Dry Gear Hobbing

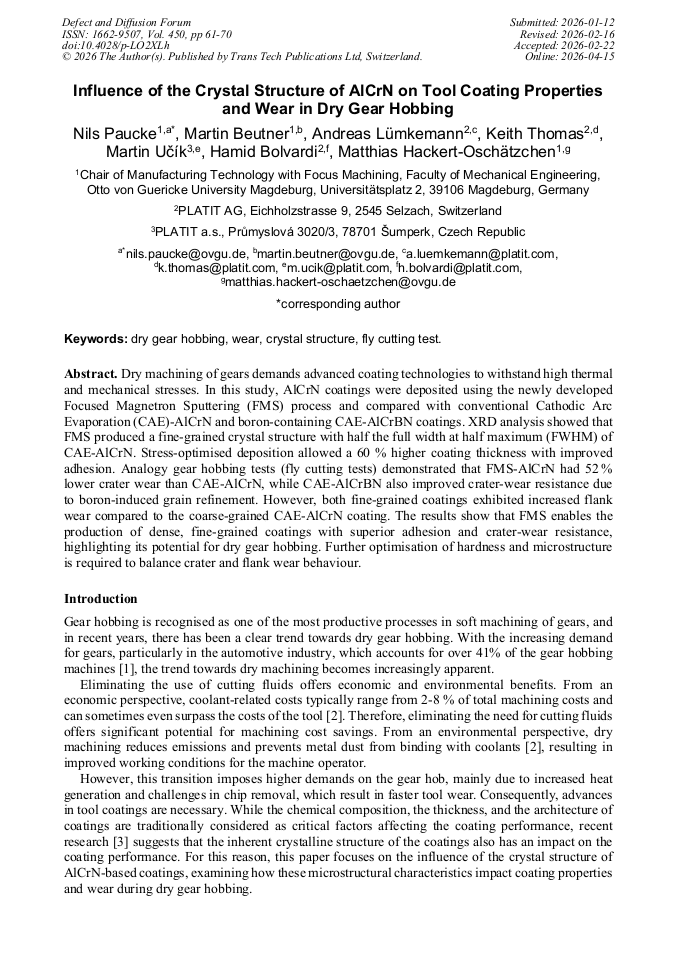

Article Preview
View Pdf By email

Abstract:

Dry machining of gears demands advanced coating technologies to withstand high thermal and mechanical stresses. In this study, AlCrN coatings were deposited using the newly developed Focused Magnetron Sputtering (FMS) process and compared with conventional Cathodic Arc Evaporation (CAE)-AlCrN and boroncontaining CAE-AlCrBN coatings. XRD analysis showed that FMS produced a finegrained crystal structure with half the full width at half maximum (FWHM) of CAE-AlCrN. Stressoptimised deposition allowed a 60 % higher coating thickness with improved adhesion. Analogy gear hobbing tests (fly cutting tests) demonstrated that FMS-AlCrN had 52 % lower crater wear than CAE-AlCrN, while CAE-AlCrBN also improved crater wear resistance due to boroninduced grain refinement. However, both finegrained coatings exhibited increased flank wear compared to the coarse-grained CAE-AlCrN coating. The results show that FMS enables the production of dense, fine-grained coatings with superior adhesion and crater wear resistance, highlighting its potential for dry gear hobbing. Further optimisation of hardness and microstructure is required to balance crater and flank wear behaviour.

You have full access to the following eBook
Machining, Cutting and Severe Plastic Deformation Processes Read eBook

Info:

Periodical:

Defect and Diffusion Forum (Volume 450)

Pages:

61-70

DOI:

https://doi.org/10.4028/p-LO2XLh

Citation:

Cite this paper

Online since:

April 2026

Authors:

Nils Paucke*, Martin Beutner, Andreas Lümkemann, Keith Thomas, Martin Učík, Hamid Bolvardi, Matthias Hackert-Oschätzchen

Keywords:

Crystal Structure, Dry Gear Hobbing, Fly Cutting Test, Wear

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] https://www.industryresearch.biz/market-reports/gear-cutting-machines-market-102160, checked: 08.10.2025.

Google Scholar

[2] R. Schestag, Trockenbearbeitung in der Praxis, Landesgewerbeamt Baden-Württemberg, Stuttgart, 2004.

Google Scholar

[3] F. F. Klimashin, M. Učík, M. Matas, D. Holec, M. Beutner, M. Hackert-Oschätzchen, A. Xomalis, J. J. Schwiedrzik, J. Klusoň, M. Jílek, A. Lümkemann, J. Michler, T. E. J. Edwards, Superstoichiometric (Al,Cr)N: Nitrogen's whereabouts and role in structure-property relationships: submitted to Acta Materialia 294 (2025).

DOI: 10.1016/j.actamat.2025.121158

Google Scholar

[4] W. Kalss, Latest Developments and Applications in Coating Technologies. in: First International HSS Forum Conference, Aachen, 2005.

Google Scholar

[5] A. Baptista, F. J. G. Silva, J. Porteiro, J. L. Miguez, G. Pinto, L. Fernandes, On the Physical Vapour Deposition (PVD): Evolution of Magnetron Sputtering Process for Industrial Applications, in: 28th International Conference on Flexible Automation and Intelligent Manufacturing, 2018.

DOI: 10.1016/j.promfg.2018.10.125

Google Scholar

[6] D. M. Mattox, The foundations of Vacuum Coating Technology, W. Andrew, Noyes Publications, UK, USA, 2003. ISBN: 0-8155-1495-6.

Google Scholar

[7] J. Klusoň, M. Učík, E. Jankes, K. Thomas, H. Bolvardi, A. Lümkemann, Focused magnetron sputtering (FMS): Combining HiPIMS-level plasma density and DCMS deposition rates on large industrial targets, in: Journal of hp tooling, 2025. ISSN 2628-5444.

Google Scholar

[8] F. Klocke, Fertigungsverfahren 1: Zerspanung mit geometrisch bestimmter Schneide, Springer Vieweg, VDI Buch, Berlin, 2018. ISBN: 978-3-662-54207-1.

DOI: 10.1007/978-3-662-54207-1_11

Google Scholar

[9] F. F. Klimashin, J. Klusoň, M. Učík, R. Žemlička, M. Jílek, A. Lümkemann, J. Michler, T. E. J. Edwards, High-power-density sputtering of industrial-scale targets: Case study of (Al,Cr)N: submitted to Materials & Design (237), 2024.

DOI: 10.1016/j.matdes.2023.112553

Google Scholar

[10] J. T. Gudmundsson, N. Brenning, D. Lundin, U. Helmersson, High power impulse magnetron sputtering discharge, in: J. Vaxc. Sci. Technol. A30, 2012.

DOI: 10.1116/1.3691832

Google Scholar

[11] J. E. Greene, Review Article: Tracing the recorded history of thin-film sputter deposition: From the 1800s to 2017, in J. Vac. Sci. Technol. A 35, 2017.

DOI: 10.1116/1.4998940

Google Scholar

[12] R. De Gryse, J. Haemers, W. P. Leroy, D. Depla, Thirty years of rotatable magnetrons, in: Thin Solid Films (520), 2012.

DOI: 10.1016/j.tsf.2012.04.065

Google Scholar

[13] H. Biermann, L. Krüger, Moderne Methoden der Werkstoffprüfung, John Wiley & Sons, 2014. ISBN 978-3-527-67070-3.

Google Scholar

[14] DIN EN ISO 26423: 2016-11: Hochleistungskeramik – Bestimmung der Schichtdicke mit dem Kalottenschleifverfahren (ISO 26423:2009); Deutsche Fassung EN ISO 26423:2016.

DOI: 10.31030/2482914

Google Scholar

[15] DIN 4856: 2018-02: Kohlenstoffschichten und andere Hartstoffschichten – Rockwell-Eindringprüfung zur Bewertung der Haftung.

DOI: 10.31030/2795562

Google Scholar

[16] T. Sato, T. Yamamoto, H. Hasegawa, T. Suzuki, Effects of boron contents on microstructures and microhardness in CrxAlyN films synthesized by cathodic arc method, in: Surface & Coatings Technology (201), 1348-1351, 2006.

DOI: 10.1016/j.surfcoat.2006.01.068

Google Scholar

[17] C. Tritremmel, R. Daniel, M. Lechthaler, H. Rudigier, P. Polcik, C. Mitterer, Microstructure and mechanical properties of nanocrystalline Al–Cr–B–N thin films, in: Surface & Coatings Technology (213), 1-7, 2012.

DOI: 10.1016/j.surfcoat.2012.09.055

Google Scholar

[18] A. Lümkemann, M. Jílek, T. Cselle, D. Blösch, Stress optimized hard coatings for high-perfomance gear hobbing, Seminar: Trends in Gear Soft Manufacturing, Aachen, 2018.

Google Scholar

[19] F. Klocke, C. Brecher, Zahnrad- und Getriebetechnik: Auslegung – Herstellung Untersuchung – Simulation, München, Carl Hanser Verlag, 2017. https://www.hanser-elibrary.com/doi/book/.

DOI: 10.3139/9783446431409

Google Scholar

[20] M. Beutner, Ein Beitrag zum Temperaturverhalten und zur thermischen Belastung beim trockenen Wälzfräsen, Magdeburg, Univ., Diss., 2019.

Google Scholar
