Static Finite Element Modeling of Milling in Flexible Composite Plates

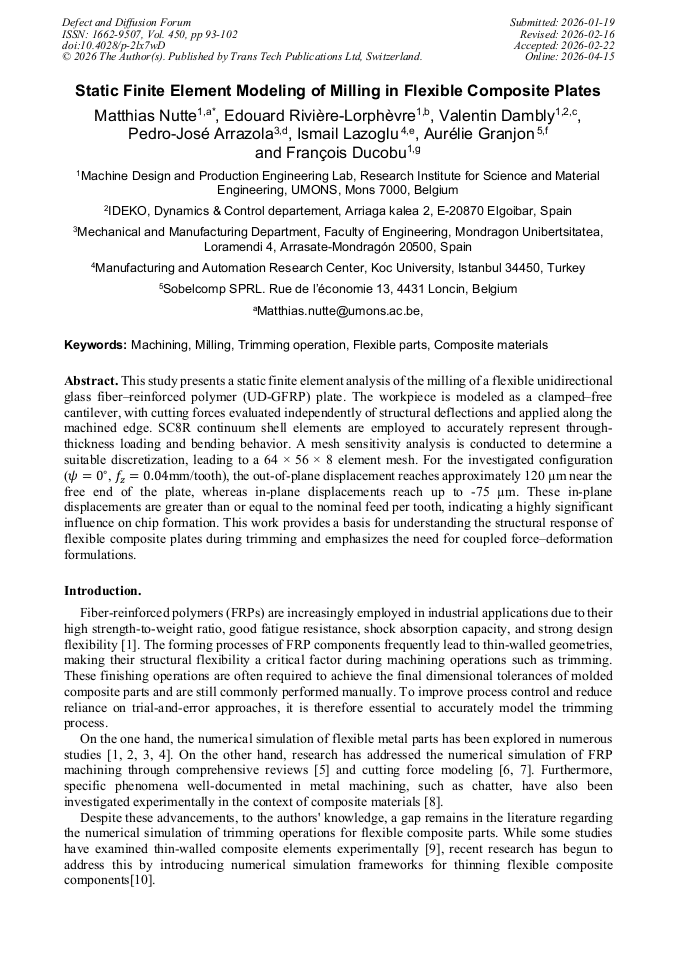

Article Preview
View Pdf By email

Abstract:

This study presents a static finite element analysis of the milling of a flexible unidirectional glass fiber–reinforced polymer (UD-GFRP) plate. The workpiece is modeled as a clamped–free cantilever, with cutting forces evaluated independently of structural deflections and applied along the machined edge. SC8R continuum shell elements are employed to accurately represent through-thickness loading and bending behavior. A mesh sensitivity analysis is conducted to determine a suitable discretization, leading to a 64 × 56 × 8 element mesh. For the investigated configuration (, mm/tooth), the out-of-plane displacement reaches approximately 120 µm near the free end of the plate, whereas in-plane displacements reach up to-75 µm. These in-plane displacements are greater than or equal to the nominal feed per tooth, indicating a highly significant influence on chip formation. This work provides a basis for understanding the structural response of flexible composite plates during trimming and emphasizes the need for coupled force–deformation formulations.

You have full access to the following eBook
Machining, Cutting and Severe Plastic Deformation Processes Read eBook

Info:

Periodical:

Defect and Diffusion Forum (Volume 450)

Pages:

93-102

DOI:

https://doi.org/10.4028/p-2lx7wD

Citation:

Cite this paper

Online since:

April 2026

Authors:

Matthias Nutte*, Edouard Rivière-Lorphèvre, Valentin Dambly, Pedro José Arrazola, Ismail Lazoglu, Aurélie Granjon, François Ducobu

Keywords:

Composite Materials, Flexible Parts, Machining, Milling, Trimming Operation

Funder:

The publication of this article was funded by the Mondragon Goi Eskola Politeknikoa, J.M.A. S.Coop

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
