Development of a New Production Process for Thermally Conductive Resin for Additive Manufacturing Using mSLA Process

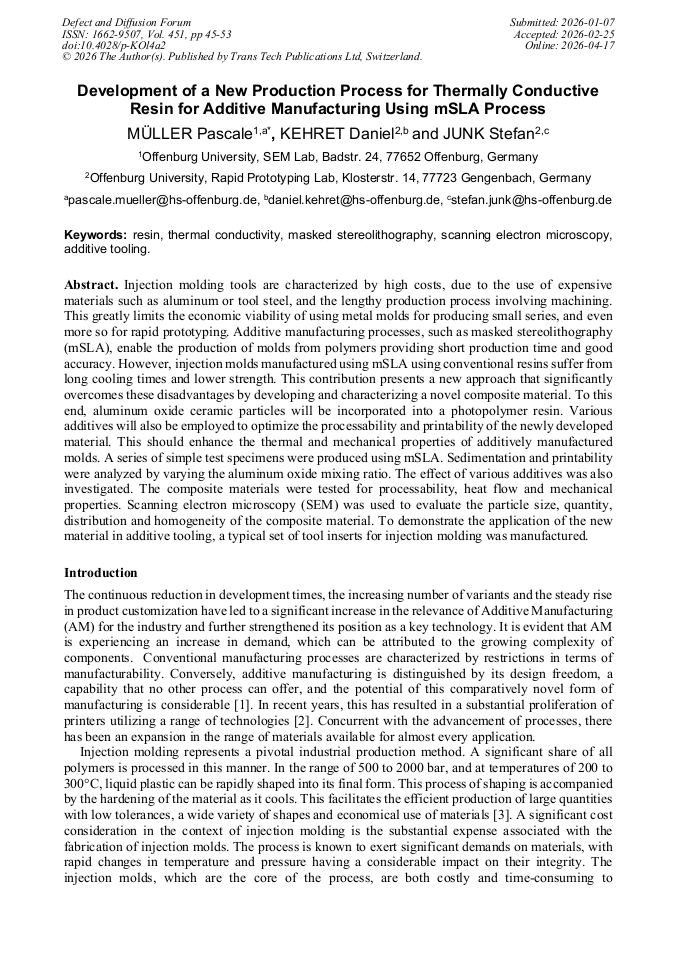

Article Preview
View Pdf By email

Abstract:

Injection molding tools are characterized by high costs, due to the use of expensive materials such as aluminum or tool steel, and the lengthy production process involving machining. This greatly limits the economic viability of using metal molds for producing small series, and even more so for rapid prototyping. Additive manufacturing processes, such as masked stereolithography (mSLA), enable the production of molds from polymers providing short production time and good accuracy. However, injection molds manufactured using mSLA using conventional resins suffer from long cooling times and lower strength. This contribution presents a new approach that significantly overcomes these disadvantages by developing and characterizing a novel composite material. To this end, aluminum oxide ceramic particles will be incorporated into a photopolymer resin. Various additives will also be employed to optimize the processability and printability of the newly developed material. This should enhance the thermal and mechanical properties of additively manufactured molds. A series of simple test specimens were produced using mSLA. Sedimentation and printability were analyzed by varying the aluminum oxide mixing ratio. The effect of various additives was also investigated. The composite materials were tested for processability, heat flow and mechanical properties. Scanning electron microscopy (SEM) was used to evaluate the particle size, quantity, distribution and homogeneity of the composite material. To demonstrate the application of the new material in additive tooling, a typical set of tool inserts for injection molding was manufactured.

You have full access to the following eBook
Polymer Processing and Thermomechanical Properties Read eBook

Info:

Periodical:

Defect and Diffusion Forum (Volume 451)

Pages:

45-53

DOI:

https://doi.org/10.4028/p-KOl4a2

Citation:

Cite this paper

Online since:

April 2026

Authors:

Pascale Müller*, Daniel Kehret, Stefan Junk

Keywords:

Additive Tooling, Masked Stereolithography, Resin, Scanning Electron Microscopy, Thermal Conductivity

Funder:

The publication of this article was funded by the Offenburg University of Applied Sciences

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] I. Gibson, D. Rosen, B. Stucker, M. Khorasani, Additive Manufacturing Technologies, Springer International Publishing, Cham, 2021.

Google Scholar

[2] S. Schrock, S. Junk, A. Albers, Evaluation of a method for the additive tooling of injection mould inserts, RPJ 30 (2024) 161–176.

DOI: 10.1108/rpj-04-2023-0139

Google Scholar

[3] M. Czepiel, M. Bańkosz, A. Sobczak-Kupiec, Advanced Injection Molding Methods: Review, Materials (Basel, Switzerland) 16 (2023).

DOI: 10.3390/ma16175802

Google Scholar

[4] E. Celik, Additive Manufacturing, De Gruyter, 2025.

Google Scholar

[5] S. Junk, F. Bär, Design guidelines for Additive Manufacturing using Masked Stereolithography mSLA, Procedia CIRP 119 (2023) 1122–1127.

DOI: 10.1016/j.procir.2023.01.022

Google Scholar

[6] S. Junk, F. Bär, Comparison of Technical and Economic Properties of Additively Manufactured Components Using Masked Stereolithography and Fused Layer Modeling, ASME Conference Proceedings: International Additive Manufacturing Conference (2022).

DOI: 10.1115/iam2022-94087

Google Scholar

[7] 3D Jake, Technical data sheet Color Mix Resin Basic, https://3d.nice-cdn.com/upload/file/ Color_Mix_Resin_Basic.pdf (2024).

Google Scholar

[8] Advanced Materials (ADMAT), 3D Tough datasheet, https://www.3dm-shop.com/product-page/3DM-TOUGH (2023).

Google Scholar

[9] A. Rodriguez, J.P. Fuertes, A. Oval, G. Perez-Artieda, Experimental Measurement of the Thermal Conductivity of Fused Deposition Modeling Materials with a DTC-25 Conductivity Meter, Materials (Basel, Switzerland) 16 (2023).

DOI: 10.3390/ma16237384

Google Scholar

[10] A.B. Lozano, S.H. Álvarez, C.V. Isaza, W. Montealegre-Rubio, Analysis and Advances in Additive Manufacturing as a New Technology to Make Polymer Injection Molds for World-Class Production Systems, Polymers 14 (2022).

DOI: 10.3390/polym14091646

Google Scholar

[11] G.J. Lauth, J. Kowalczyk, Einführung in die Physik und Chemie der Grenzflächen und Kolloide, Springer Berlin Heidelberg, Berlin, Heidelberg, 2016.

DOI: 10.1007/978-3-662-47018-3

Google Scholar

[12] N. Wang, H. Chang, C. Zhang, Y. Wu, R. Yang, X. Zhang et al., Preparation of High-Stability Ceramic Slurry with Gel Behavior for Stereolithography 3D Printing, Materials (Basel, Switzerland) 16 (2023).

DOI: 10.3390/ma16072816

Google Scholar

[13] I.A. Tsekmes, R. Kochetov, P.H.F. Morshuis, J.J. Smit, Thermal conductivity of polymeric composites: A review, in: 2013 IEEE International Conference on Solid Dielectrics (ICSD), Bologna, Italy, 2013, p.678–681.

DOI: 10.1109/icsd.2013.6619698

Google Scholar
