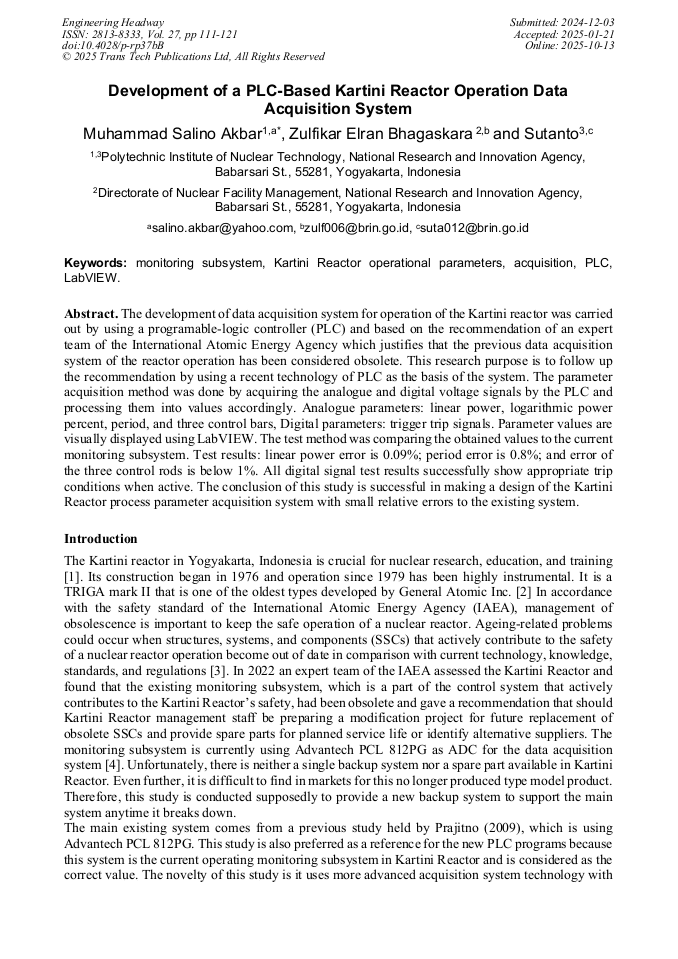

Development of a PLC-Based Kartini Reactor Operation Data Acquisition System

Abstract:

The development of data acquisition system for operation of the Kartini reactor was carried out by using a programable-logic controller (PLC) and based on the recommendation of an expert team of the International Atomic Energy Agency which justifies that the previous data acquisition system of the reactor operation has been considered obsolete. This research purpose is to follow up the recommendation by using a recent technology of PLC as the basis of the system. The parameter acquisition method was done by acquiring the analogue and digital voltage signals by the PLC and processing them into values accordingly. Analogue parameters: linear power, logarithmic power percent, period, and three control bars, Digital parameters: trigger trip signals. Parameter values are visually displayed using LabVIEW. The test method was comparing the obtained values to the current monitoring subsystem. Test results: linear power error is 0.09%; period error is 0.8%; and error of the three control rods is below 1%. All digital signal test results successfully show appropriate trip conditions when active. The conclusion of this study is successful in making a design of the Kartini Reactor process parameter acquisition system with small relative errors to the existing system.

• Periodical: Engineering Headway (Volume 27)
• Pages: 111-121
• DOI: https://doi.org/10.4028/p-rp37bB
• Online since: October 2025
• Authors: Muhammad Salino Akbar*, Zulfikar Elran Bhagaskara, Sutanto Sutanto
• Keywords: Acquisition, Kartini Reactor Operational Parameters, LabVIEW, Monitoring Subsystem, PLC

References

[1] Sutanto, F. R. Iskandar, and P. I. Wahyono, "Design of Power Control System For Automatic Operation of The Kartini Reactor," Journal of Physics: Conference Series, (2020) 1–6.

DOI: 10.1088/1742-6596/1436/1/012066

[2] A. S. Wicaksono, S. Takeda, and T. Kitada, "Feasibility Study on the Initial Kartini Reactor Core Using Plate Type Fuel Elements," Science and Technology of Nuclear Installations, (2022) 1–10.

DOI: 10.1155/2022/9629413

[3] IAEA, Ageing Management for Research Reactors Specific Safety Guide No. SSG-10, IAEA, Vienna, (2010) 30–31.

[4] Prajitno, "Perancangan dan Pengembangan Sistem Akuisisi Data Parameter Proses Reaktor Kartini," PPIPDIPTN, Sleman, (2009) 145–149.

[5] A. Abimanyu, "Pelatihan Operator dan Supervisor Reaktor Kartini," PUSDIKLAT-BATAN, (2020) 8–20.

[6] M. Rosyid, N. Hidayat, and Jumari, "Simulator Reaktor Kartini Sebagai Alat Peraga Operasi Reaktor Penelitian Tipe TRIGA Mark II," Jurnal Forum Nuklir, (2013) 164–170.

DOI: 10.17146/jfn.2013.7.2.3469

[7] Jumari, Nurhidayat, A. Abimanyu, and Mursiti, "Pembuatan Rangkaian Trip dan Periode Kanal Daya Logaritmik Analog untuk SIK Reaktor Kartini," Prosiding Seminar Penelitian dan Pengelolaan Perangkat Nuklir, (2012) 361–366.

[8] S. Yusuf, M. Subchan, I. Shobari, and S. Budiharjo, "Desain Dasar Perangkat Sistem Instrumentasi dan Kendali Reaktor Riset SR4," Aplikasi dan Rekayasa dalam Bidang Iptek Nuklir, Serpong, (2010) 14–18.

[9] D. K. Lee, J. In, and S. Lee, "Standard Deviation and Standard Error of The Mean," Korean Journal of Anesthesiology, (2015) 220–223.

[10] A. Malvino, and D. Bates, Electronics Principles Eighth Edition, (McGraw Hill, New York, 2016), p.692–696, 8th ed.
