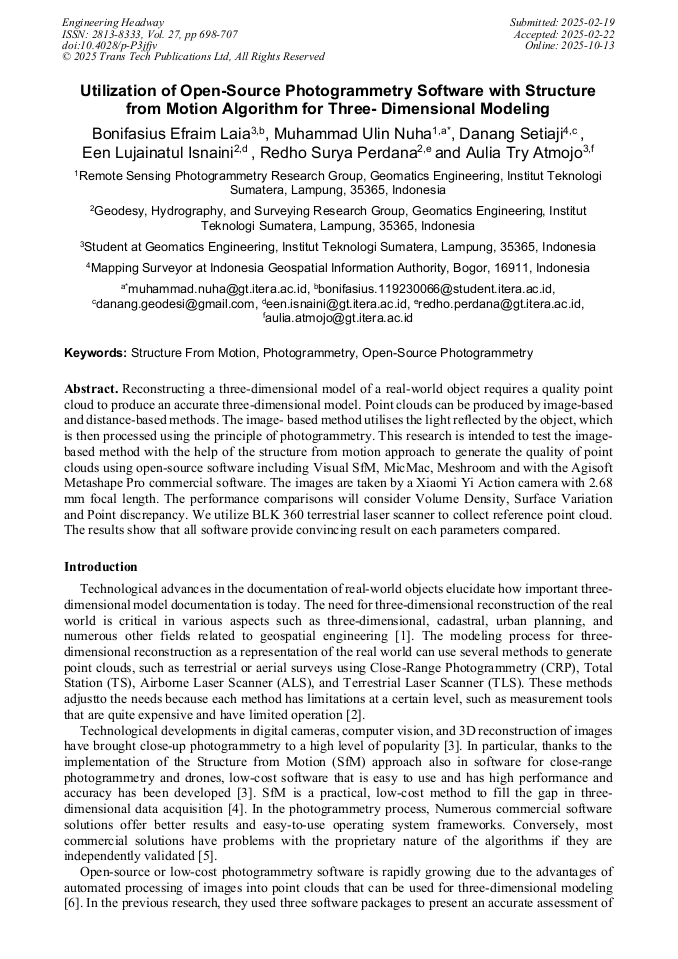

Utilization of Open-Source Photogrammetry Software with Structure from Motion Algorithm for Three- Dimensional Modeling

Abstract:

Reconstructing a three-dimensional model of a real-world object requires a quality point cloud to produce an accurate three-dimensional model. Point clouds can be produced by image-based and distance-based methods. The image-based method utilises the light reflected by the object, which is then processed using the principle of photogrammetry. This research is intended to test the image-based method with the help of the structure from motion approach to generate the quality of point clouds using open-source software including Visual SfM, MicMac, Meshroom and with the Agisoft Metashape Pro commercial software. The images are taken by a Xiaomi Yi Action camera with 2.68 mm focal length. The performance comparisons will consider Volume Density, Surface Variation and Point discrepancy. We utilize BLK 360 terrestrial laser scanner to collect reference point cloud. The results show that all software provide convincing result on each parameters compared.

• Periodical: Engineering Headway (Volume 27)
• Pages: 698-707
• DOI: https://doi.org/10.4028/p-P3jfjv
• Online since: October 2025
• Authors: Bonifasius Efraim Laia*, Muhammad Ulin Nuha, Danang Setiaji, Een Lujainatul Isnaini, Redho Surya Perdana, Aulia Try Atmojo
• Keywords: 3D Modelling, Open-Source Photogrammetry, Photogrammetry, Structure From Motion

References

[1] H. Ledoux et al., "3dfier: automatic reconstruction of 3D city models," J. Open-source Softw., vol. 6, no. 57, 2021.

DOI: 10.21105/joss.02866

[2] S. Peña-Villasenín, M. Gil-Docampo, and J. Ortiz-Sanz, "Professional SfM and TLS vs a simple SfM photogrammetry for 3D modelling of rock art and radiance scaling shading in engraving detection," J. Cult. Herit., vol. 37, no. November, p.238–246, 2019.

DOI: 10.1016/j.culher.2018.10.009

[3] L. Jurjević and M. Gašparović, "3D data acquisition based on opencv for close-range photogrammetry applications," Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. - ISPRS Arch., vol. 42, no. 1W1, p.377– 382, 2017.

DOI: 10.5194/isprs-archives-XLII-1-W1-377-2017

[4] G. Vacca, "Overview of Open-Source Software For Close Range Photogrammetry," in International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences - ISPRS Archives, 2019, vol. 42, no. 4/W14.

DOI: 10.5194/isprs-archives-XLII-4-W14-239-2019

[5] M. J. Westoby, J. Brasington, N. F. Glasser, M. J. Hambrey, and J. M. Reynolds, "'Structure-from-Motion' photogrammetry: A low-cost, effective tool for geoscience applications," Geomorphology, vol. 179, no. March 2014, p.300–314, 2012.

DOI: 10.1016/j.geomorph.2012.08.021

[6] A. Murtiyoso, P. Grussenmeyer, N. Börlin, J. Vandermeerschen, and T. Freville, "Open-source and independent methods for bundle adjustment assessment in close-range UAV photogrammetry," Drones, vol. 2, no. 1, 2018.

DOI: 10.3390/drones2010003

[7] M. I. Firdaus and J. Y. Rau, "Comparisons of the three-dimensional model reconstructed using MicMac, PIX4D mapper and Photoscan Pro," 38th Asian Conf. Remote Sens. - Sp. Appl. Touching Hum. Lives, ACRS 2017, vol. 2017-Octob, no. October 2017, 2017.

[8] E. Rupnik, M. Daakir, and M. P. Deseilligny, "Open Geospatial Data, Software and Standards MicMac-a free, open-source solution for photogrammetry," Open Geospatial Data, Softw. Stand., vol. 2, 2017.

DOI: 10.1186/s40965-017-0027-2

[9] J. Morgan and D. Brogan, How to VisualSFM, no. January. 2016.

[10] I. Đurić, I. Vasiljević, M. Obradović, V. Stojaković, J. Kićanović, and R. Obradović, "Comparative Analysis of Open-Source and Commercial Photogrammetry Software for Cultural Heritage," Proc. Int. Conf. Educ. Res. Comput. Aided Archit. Des. Eur., vol. 2, no. August, p.243–252, 2021.

DOI: 10.52842/conf.ecaade.2021.2.243

[11] D. Girardeau-Montaut, "CloudCompare version 2.6.1. user manual," p.181, 2015, [Online]. Available:http://www.danielgm.net/cc/
