Experimental and Numerical Investigation of Transient Response for the Specific Rubber Compound

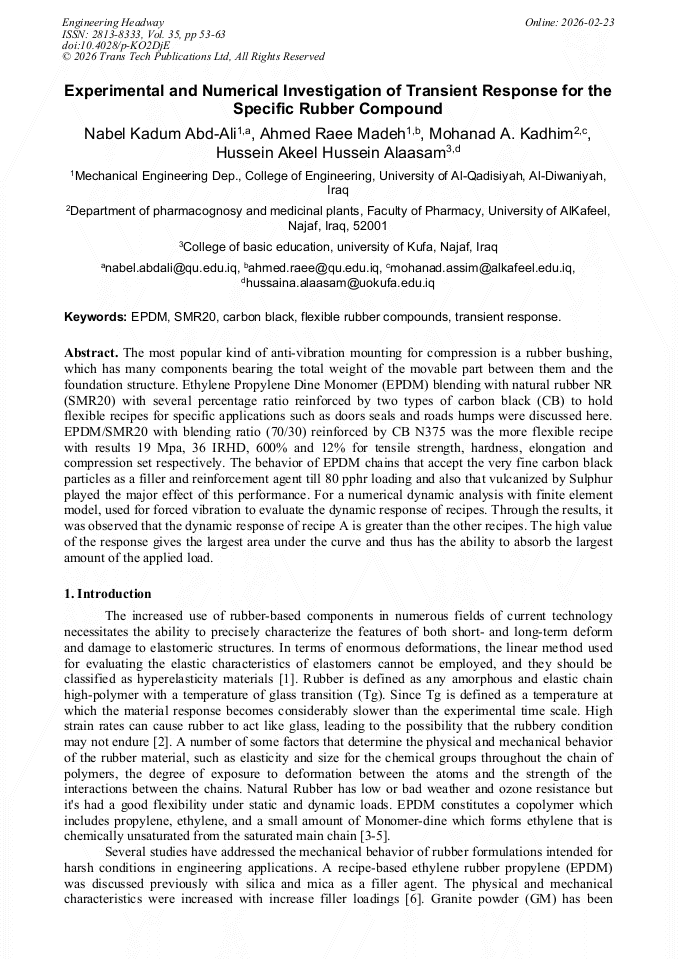

Article Preview

Abstract:

The most popular kind of anti-vibration mounting for compression is a rubber bushing, which has many components bearing the total weight of the movable part between them and the foundation structure. Ethylene Propylene Dine Monomer (EPDM) blending with natural rubber NR (SMR20) with several percentage ratio reinforced by two types of carbon black (CB) to hold flexible recipes for specific applications such as doors seals and roads humps were discussed here. EPDM/SMR20 with blending ratio (70/30) reinforced by CB N375 was the more flexible recipe with results 19 Mpa, 36 IRHD, 600% and 12% for tensile strength, hardness, elongation and compression set respectively. The behavior of EPDM chains that accept the very fine carbon black particles as a filler and reinforcement agent till 80 pphr loading and also that vulcanized by Sulphur played the major effect of this performance. For a numerical dynamic analysis with finite element model, used for forced vibration to evaluate the dynamic response of recipes. Through the results, it was observed that the dynamic response of recipe A is greater than the other recipes. The high value of the response gives the largest area under the curve and thus has the ability to absorb the largest amount of the applied load.

You might also be interested in these eBooks
The 6th International Scientific Conference of Alkafeel University (ISCKU) View Preview

Info:

Periodical:

Engineering Headway (Volume 35)

Pages:

53-63

DOI:

https://doi.org/10.4028/p-KO2DjE

Citation:

Cite this paper

Online since:

February 2026

Authors:

Nabel Kadum Abd-Ali, Ahmed Raee Madeh, Mohanad A. Kadhim, Hussein Akeel Hussein Alaasam

Keywords:

Carbon Black, EPDM, Flexible Rubber Compounds, SMR20, Transient Response

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Askarbekov, R., Herak, D., & Mizera, C. (2016). Mechanical behavior of rubber samples under relaxation. Engineering Rural Development, 25, 745-749.‏

Google Scholar

[2] Roland, C. M. (2006). Mechanical behavior of rubber at high strain rates. Rubber chemistry and technology, 79(3), 429-459.‏

DOI: 10.5254/1.3547945

Google Scholar

[3] Gary R. Hanted, Materials and Compounds Department of Polymer Science, The University of Akron, Akron, Ohio 44325-3909, USA.

Google Scholar

[4] Abd-Ali, N. K., Farhan, M. M., & Hassan, N. Y. (2021). Improvement of mechanical properties of the rubbery part in cement packing system using new rubber materials. Journal of Engineering Science and Technology, 16(2), 1601-1613.‏

Google Scholar

[5] Abd-Ali, N. K. (2020). The effect of cure activator zinc oxide nanoparticles on the mechanical behavior of polyisoprene rubber. Journal of Engineering Science and Technology, 15(3), 2051-2061.‏

Google Scholar

[6] Akpınar Borazan, A. (2017). Preparation and characterization of Epdm rubber mixture for a heat resistant Conveyor Belt cover. Anadolu Üniversitesi Bilim Ve Teknoloji Dergisi A-Uygulamalı Bilimler ve Mühendislik.‏

DOI: 10.18038/aubtda.296523

Google Scholar

[7] Mousa, B. H., El Gamsy, R., & Abdel Latif, M. H. (2019, April). Mechanical behaviour of rubber hybrid composites. In International Conference on Aerospace Sciences and Aviation Technology (Vol. 18, No. 18, pp.1-8). The Military Technical College.‏

Google Scholar

[8] Golbakhshi, H., & Namjoo, M. (2014). Investigating temperature effects on mechanical behavior of rubber compounds embedded in composite structure of pneumatic tires. Int. J. Adv. Manuf. Technol, 7, 19-25.‏

Google Scholar

[9] Huang, L., Zhang, S., Liu, Y., & Sha, Z. (2023). Mechanical Characteristics Analysis of Composite Rubber Elements in Elastic Cam of Large Coal Cake Tamper. Applied Sciences, 13(16), 9247.‏

DOI: 10.3390/app13169247

Google Scholar

[10] Abd Ali, N. K. (2018, January). A new reinforcement material for rubber compounds (Sediment dust nanoparticles and white cement). In 2018 1st International Scientific Conference of Engineering Sciences-3rd Scientific Conference of Engineering Science (ISCES) (pp.163-168). IEEE.‏

DOI: 10.1109/isces.2018.8340547

Google Scholar

[11] Abd-Ali, N. K. (2022). The effect of adding nanoparticles on the mechanical properties of acrylic removable denture. Journal of Engineering Science and Technology, 17(4), 2983-2996.‏

Google Scholar

[12] Yang, Z., Huang, Y., & Xiong, Y. (2020). A functional modified graphene oxide/nanodiamond/nano zinc oxide composite for excellent vulcanization properties of natural rubber. RSC advances, 10(68), 41857-41870.‏

DOI: 10.1039/d0ra07404g

Google Scholar

[13] Anidha, S., Mozhuguan Sekar, S., Natarajan, E., Muthukkumar, M., Markandan, K., Ang, C. K., & Franz, G. (2024). Preliminary Investigations and Support for the Mechanical and Dynamic Characteristics of a Natural Rubber Reinforcement in E-Glass/CNT/Epoxy Composite. Journal of Composites Science, 8(4), 140.‏

DOI: 10.3390/jcs8040140

Google Scholar

[14] Mahdi, R. A., & Abd-Ali, N. K. (2023, April). Performance characteristics of some rubber recipes reinforced with scrap fibers and crumb rubber. In AIP Conference Proceedings (Vol. 2776, No. 1). AIP Publishing.‏

DOI: 10.1063/5.0136287

Google Scholar

[15] Mahdi, R. A., & Abd-Ali, N. K. (2023). Design improvement of rolling barriers safety using tire recycling process waste. Journal of Engineering Science and Technology, 18(2), 1124-1136.‏

Google Scholar

[16] Luangchuang, P., Sornanankul, T., & Nakaramontri, Y. (2023). Effects of Modifying Agent and Conductive Hybrid Filler on Butyl Rubber Properties: Mechanical, Thermo-Mechanical, Dynamical and Re-Crosslinking Properties. Polymers, 15(19), 4023.‏

DOI: 10.3390/polym15194023

Google Scholar

[17] Abd-Ali, N. K., & Madeh, A. R. (2021). Structural analysis of functionally graded material using sigmioadal and power law. Diagnostyka, 22.‏

DOI: 10.29354/diag/144171

Google Scholar

[18] Madeh, A. R., & Abd-Ali, N. K. (2022). The stress analysis effect on structural health monitoring in functionally graded shell. Diagnostyka, 23.‏

DOI: 10.29354/diag/152180

Google Scholar

[19] Abd-Ali, N. K., & Madeh, A. R. (2018, October). Experimental and numerical investigation of factors that affecting in frictional welding of mild steel and Al alloy A356. In 2018 International Conference on Advanced Science and Engineering (ICOASE) (pp.456-461). IEEE.‏

DOI: 10.1109/icoase.2018.8548940

Google Scholar

[20] Madeh, A. R., & Abd-Ali, N. K. (2023). Health monitoring of composite car roof failure under effect of different impact velocity. Diagnostyka, 24(4).‏

DOI: 10.29354/diag/174100

Google Scholar

[21] Njom, A. E., Mewoli, A., Ndengue, M. J., Ebanda, F. B., Nitidem, A. D., Otiti, S. B., & Ateba, A. (2022). Hybrid composite based on natural rubber reinforced with short fibers of the triumfetta cordifolia/saccharum officinarum L.: performance evaluation. Journal of Minerals and Materials Characterization and Engineering, 10(5), 385-399.‏

DOI: 10.4236/jmmce.2022.105027

Google Scholar

[22] Mostafa, A., Abouel-Kasem, A., Bayoumi, M. R., & El-Sebaie, M. G. (2010). Rubber-filler interactions and its effect in rheological and mechanical properties of filled compounds. Journal of Testing and Evaluation, 38(3), 347-359.‏

DOI: 10.1520/jte101942

Google Scholar

[23] Madeh, A. R., & Majeed, W. I. (2021). Effect of boundary conditions on thermal buckling of laminated composite shallow shell. Materials Today: Proceedings, 42, 2397-2404.‏

DOI: 10.1016/j.matpr.2020.12.501

Google Scholar

[24] Madeh, A. R., & Majeed, W. I. (2022). Effect of thermal environment on transient response of laminated shallow shells with different boundary conditions. Journal of Engineering Science and Technology, 17(5), 3160-3173.‏

Google Scholar

[25] Maciejewska, M., & Siwek, M. (2020). The influence of curing systems on the cure characteristics and physical properties of styrene–butadiene elastomer. Materials, 13(23), 5329.‏

DOI: 10.3390/ma13235329

Google Scholar

[26] Aprem, A. S., Thomas, S., Joseph, K., Barkoula, N. M., & Kocsis, J. K. (2003). Sulphur vulcanisation of styrene butadiene rubber using new binary accelerator systems. Journal of Elastomers & Plastics, 35(1), 29-55.‏

DOI: 10.1177/009524403031095

Google Scholar

[27] Luo, R. K. (2016). Impact simulation and experiment on rubber anti-vibration systems. Polymer Testing, 50, 335-342.‏

DOI: 10.1016/j.polymertesting.2016.02.001

Google Scholar

[28] Carleo, F., Plagge, J., Whear, R., Busfield, J., & Klüppel, M. (2020). Modeling the full time-dependent phenomenology of filled rubber for use in anti-vibration design. Polymers, 12(4), 841.‏

DOI: 10.3390/polym12040841

Google Scholar

[29] Danko, J., Nemec, T., Milesich, T., & Magdolen, Ľ. (2022). Dynamic Stiffness Determination of the Rubber Bushing Fem Modelwith Viscoelastic Material Behaviour. Strojnícky časopis-Journal of Mechanical Engineering, 72(3), 121-128.‏

DOI: 10.2478/scjme-2022-0046

Google Scholar

[30] Hussein, M. H. A., & Abd-Ali, N. K. (2023, November). Investigation Study of Impact-Absorbed Energy and Flexural Strength of Multi-layer Composite Materials. In International Conference on Environment and Sustainability (pp.419-430). Cham: Springer Nature Switzerland.‏

DOI: 10.1007/978-3-031-57054-4_31

Google Scholar
