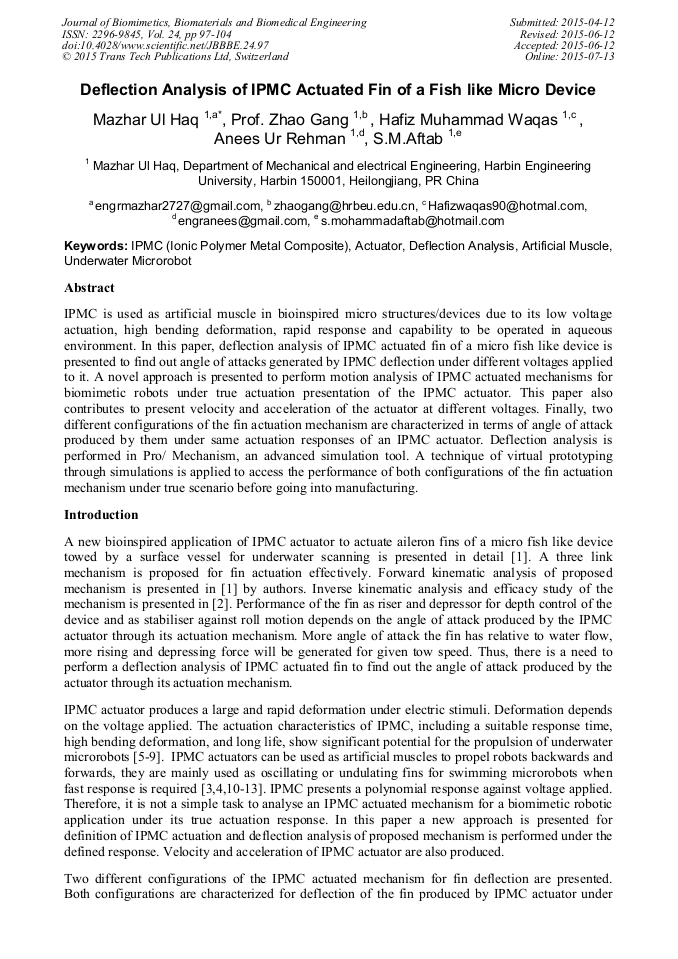

Deflection Analysis of IPMC Actuated Fin of a Fish Like Micro Device

Abstract:

IPMC is used as artificial muscle in bioinspired micro structures/devices due to its low voltage actuation, high bending deformation, rapid response and capability to be operated in aqueous environment. In this paper, deflection analysis of IPMC actuated fin of a micro fish like device is presented to find out angle of attacks generated by IPMC deflection under different voltages applied to it. A novel approach is presented to perform motion analysis of IPMC actuated mechanisms for biomimetic robots under true actuation presentation of the IPMC actuator. This paper also contributes to present velocity and acceleration of the actuator at different voltages. Finally, two different configurations of the fin actuation mechanism are characterized in terms of angle of attack produced by them under same actuation responses of an IPMC actuator. Deflection analysis is performed in Pro/ Mechanism, an advanced simulation tool. A technique of virtual prototyping through simulations is applied to access the performance of both configurations of the fin actuation mechanism under true scenario before going into manufacturing.

• Periodical: Journal of Biomimetics, Biomaterials and Biomedical Engineering (Volume 24)
• Pages: 97-104
• DOI: https://doi.org/10.4028/www.scientific.net/JBBBE.24.97
• Online since: July 2015
• Authors: Mazhar Ul Haq*, Zhao Gang, Hafiz Muhammad Waqas, Anees Ur Rehman, S.M. Aftab
• Keywords: Actuator, Artificial Muscle, Deflection Analysis, IPMC (Ionic Polymer Metal Composite), Underwater Microrobot

References

[1] Mazhar Ul Haq, Prof. Zhao Gang, Shaban Usman , Anees Ur Rehman, S.M. Aftab, 2015, Forward Kinematic Analysis of IPMC Actuated Three Link Mechanism for Fin Actuation of Fish like Micro Device, Journal of Biomimetics, Biomaterials, and Biomedical Engineering Vol. 23 pp.67-75.

DOI: 10.4028/www.scientific.net/jbbbe.23.67

[2] Mazhar Ul Haq , Prof. Zhao Gang , Fazl E Ahad, Anees Ur Rehman, Muhammad Hussain, Inverse Kinematic Analysis of Three Link Mechanism for Fin Actuation of Fish like Micro Device, Journal of Biomimetics, Biomaterials, and Biomedical Engineering 2015 (Accepted to Vol. 24 (2015).

DOI: 10.4028/www.scientific.net/jbbbe.24.77

[3] W. Zhang, S. Guo, K. Asaka, A new type of hybrid fish-like microrobot, International Journal of Automation and Computing 3 (4) (2006)358–365.

DOI: 10.1007/s11633-006-0358-4

[4] L.N. Hao, S. Xu, B. Liu, A miniature fish-like robot with infrared remote receiver and IPMC actuator, Journal of Northeastern University (Natural ScienceEdition)30(2009)773–776(inChinese).

[5] Q. He, M. Yu, L. Song, H. Ding, X. Zhang, Z. Dai, Experimental study and model analysis of the performance of IPMC membranes with various thickness, Journal of Bionic Engineering 8 (1) (2011)77–85.

DOI: 10.1016/s1672-6529(11)60001-2

[6] S. Lee, K. Kim, I. Park, Modeling and experiment of a muscle-like linear actuator using an ionic polymer–metal composite and its actuation characteristics, Journal of Smart Materials and Structures 16 (3) (2007) 583–588.

DOI: 10.1088/0964-1726/16/3/005

[7] S. Liu, M. Lin, Q. Zhang, Extensional ionomeric polymer conductor composite actuators with ionic liquids, Electroactive Polymer Actuators and Devices (EAPAD), Proceedings of SPIE 6927 (2008) 69270H.

DOI: 10.1117/12.787597

[8] H. Nakadoi, A. Sera, M. Yamakita, K. Asaka, Z. Luo, K. Ito, Integrated actuator-sensor system on patterned IPMC film: consideration of electric interference, in: Proceedings of the 2007 4th IEEE International Conference onMechatronics, Kumamoto, Japan, 2006, p.4280007.

DOI: 10.1109/icmech.2007.4280007

[9] N. Kamamichi, M. Yamakita, K. Asaka, Z. Luo, A snake-like swimming robot using IPMC actuator/sensor, in: Proceedings of the 2006 IEEE International Conference on Robotics and Automation, Orlando, United States, 2006, p.1812–1817.

DOI: 10.1109/robot.2006.1641969

[10] B. Kim, D. Kim, J. Jung, J. Park, A biomimetic undulatory tadpole robot using ionic polymer–metal composite actuators, Journal of Smart Materials and Structures14(2005)1579–1585.

DOI: 10.1088/0964-1726/14/6/051

[11] B. Gao, S. Guo, X. Ye, Motion-control analysis of ICPF—actuated underwater biomimetic microrobots, International Journal of Mechatronics and Automation1(2)(2011)79–89.

DOI: 10.1504/ijma.2011.040038

[12] S.T. McGovern, G.M. Spinks, B. Xi, G. Alici, V. Truong, G.G. Wallace, Fast bender actuators for fish-like aquatic robots, Proceedings of SPIE 6927 (2008) 69271L.

DOI: 10.1117/12.784977

[13] W. Yim,J. Lee K.J. Kim, An artificial muscle actuator for biomimetic underwater propulsors, Journal of Bio inspiration and Biomimetics 2 (2) (2007) S31–S41.

DOI: 10.1088/1748-3182/2/2/s04

[14] A licensed simulation software tool purchased from PTC Corporation USA.
