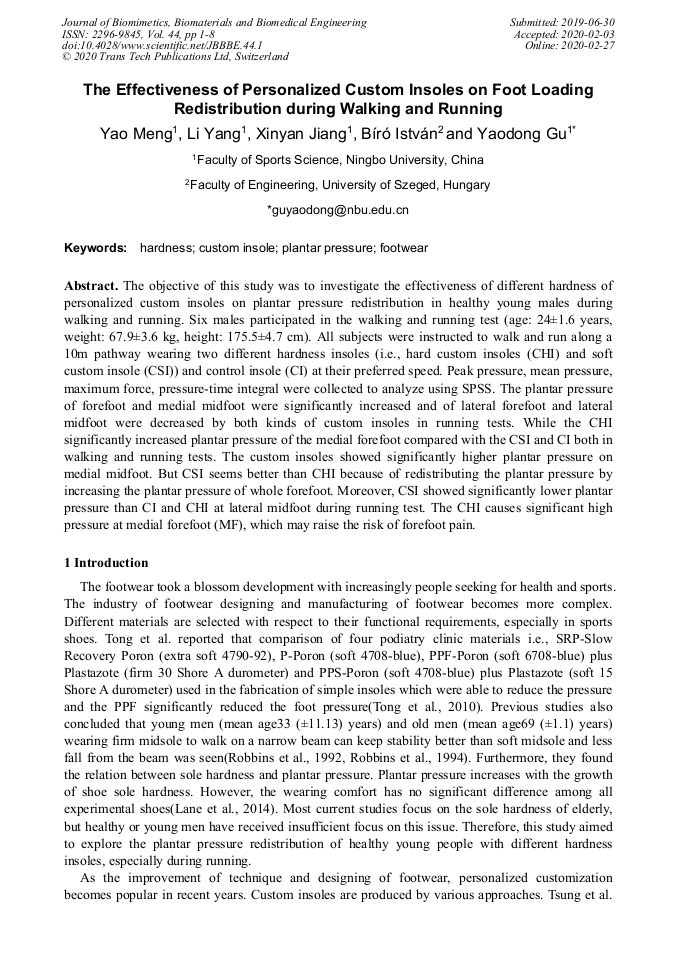

The Effectiveness of Personalized Custom Insoles on Foot Loading Redistribution during Walking and Running

Abstract:

The objective of this study was to investigate the effectiveness of different hardness of personalized custom insoles on plantar pressure redistribution in healthy young males during walking and running. Six males participated in the walking and running test (age: 24±1.6 years, weight: 67.9±3.6 kg, height: 175.5±4.7 cm). All subjects were instructed to walk and run along a 10m pathway wearing two different hardness insoles (i.e., hard custom insoles (CHI) and soft custom insole (CSI)) and control insole (CI) at their preferred speed. Peak pressure, mean pressure, maximum force, pressure-time integral were collected to analyze using SPSS. The plantar pressure of forefoot and medial midfoot were significantly increased and of lateral forefoot and lateral midfoot were decreased by both kinds of custom insoles in running tests. While the CHI significantly increased plantar pressure of the medial forefoot compared with the CSI and CI both in walking and running tests. The custom insoles showed significantly higher plantar pressure on medial midfoot. But CSI seems better than CHI because of redistributing the plantar pressure by increasing the plantar pressure of whole forefoot. Moreover, CSI showed significantly lower plantar pressure than CI and CHI at lateral midfoot during running test. The CHI causes significant high pressure at medial forefoot (MF), which may raise the risk of forefoot pain.

• Periodical: Journal of Biomimetics, Biomaterials and Biomedical Engineering (Volume 44)
• Pages: 1-8
• DOI: https://doi.org/10.4028/www.scientific.net/JBBBE.44.1
• Online since: February 2020
• Authors: Yao Meng, Li Yang, Xin Yan Jiang, Andy Wu, Yao Dong Gu*
• Keywords: Custom Insole, Footwear, Hardness, Plantar Pressure

References

[1] Tong, J.W., Ng, E.Y. 2010. Preliminary Investigation on the Reduction of Plantar Loading Pressure with Different Insole Materials (Srp–Slow Recovery Poron®, P–Poron®, Ppf–Poron®+ Plastazote, Firm and Pps–Poron®+ Plastazote, Soft). The Foot, 20, 1-6.

DOI: 10.1016/j.foot.2009.12.004

[2] Robbins, S., Waked, E., Gouw, G.J., McClaran, J. 1994. Athletic Footwear Affects Balance in Men. British journal of sports medicine, 28, 117-122.

DOI: 10.1136/bjsm.28.2.117

[3] Robbins, S., Gouw, G.J., McClaran, J. 1992. Shoe Sole Thickness and Hardness Influence Balance in Older Men. Journal of the American Geriatrics Society, 40, 1089-1094.

DOI: 10.1111/j.1532-5415.1992.tb01795.x

[4] Lane, T.J., Landorf, K.B., Bonanno, D.R., Raspovic, A., Menz, H. B. 2014. Effects of Shoe Sole Hardness on Plantar Pressure and Comfort in Older People with Forefoot Pain. Gait & Posture, 39, 247-251.

DOI: 10.1016/j.gaitpost.2013.07.116

[5] Tsung, B.Y., Zhang, M., Mak, A.F., Wong, M.W. 2004. Effectiveness of Insoles on Plantar Pressure Redistribution. Journal of Rehabilitation Research & Development, 41 767.

DOI: 10.1682/jrrd.2003.09.0139

[6] Ki, S.W., Leung, A.K., Li, A.N. 2008. Comparison of Plantar Pressure Distribution Patterns between Foot Orthoses Provided by the Cad-Cam and Foam Impression Methods. Prosthetics & Orthotics International, 32, 356.

DOI: 10.1080/03093640802016159

[7] Cheung, J.T., Zhang, M. 2008. Parametric Design of Pressure-Relieving Foot Orthosis Using Statistics-Based Finite Element Method. Medical Engineering & Physics, 30, 269-277.

DOI: 10.1016/j.medengphy.2007.05.002

[8] Caravaggi, P., Giangrande, A., Lullini, G., Padula, G., Berti, L., Leardini, A. 2016. In Shoe Pressure Measurements During Different Motor Tasks While Wearing Safety Shoes: The Effect of Custom Made Insoles Vs. Prefabricated and Off-the-Shelf. Gait & Posture, 50, 232-238.

DOI: 10.1016/j.gaitpost.2016.09.013

[9] Lee, Y.C., Lin, G., Wang, M,J. 2012. Evaluating insole design with joint motion, plantar pressure and rating of perceived exertion measures. Work, 41 Suppl 1, 1114-7.

DOI: 10.3233/wor-2012-0290-1114

[10] Chen, W.P., Ju, C.W., Tang, F.T. 2003. Effects of Total Contact Insoles on the Plantar Stress Redistribution: A Finite Element Analysis. Clinical Biomechanics, 18, S17-S24.

DOI: 10.1016/s0268-0033(03)00080-9

[11] Waldecker, U. 2002. Metatarsalgia in Hallux Valgus Deformity: A Pedographic Analysis. Journal of Foot & Ankle Surgery, 41, 300-308.

DOI: 10.1016/s1067-2516(02)80048-5

[12] Menz, H.B., Fotoohabadi, M.R., Munteanu, S.E., Zammit, G.V., Gilheany, M.F. 2013. Plantar Pressures and Relative Lesser Metatarsal Lengths in Older People with and without Forefoot Pain. Journal of Orthopaedic Research, 31, 427-433.

DOI: 10.1002/jor.22229

[13] Hirschmuller, A., Baur, H., Muller, S., Helwig, P., Dickhuth, H.H., Mayer, F. 2009. Clinical Effectiveness of Customised Sport Shoe Orthoses for Overuse Injuries in Runners: A Randomised Controlled Study. British Journal of Sports Medicine, 45, 959-965.

DOI: 10.1136/bjsm.2008.055830

[14] Gijonnogueron, G., Cortesjeronimo, E., Cerveramarin, J.A., Garcíadelapeña, R., Benhamubenhamu, S., Luquesuarez, A. 2013. Foot orthoses custom-made by vacuum forming on the non-load-bearing foot: preliminary results in male children with calcaneal apophysitis (Sever's disease). Prosthetics & Orthotics International, 37, 495-498.

DOI: 10.1177/0309364613482844

[15] Witana, C.P., Goonetilleke, R.S., Xiong, S., Au, EYL. 2009. Effects of Surface Characteristics on the Plantar Shape of Feet and Subjects' Perceived Sensations. Applied Ergonomics, 40, 267-279.

DOI: 10.1016/j.apergo.2008.04.014

[16] Menant, J.C., Perry, S.D., Steele, J.R., Menz, H.B., Munro, B.J., Lord, S.R. 2008 . Effects of Shoe Characteristics on Dynamic Stability When Walking on Even and Uneven Surfaces in Young and Older People. Archives of physical medicine and rehabilitation, 89, 1970-1976.

DOI: 10.1016/j.apmr.2008.02.031

[17] Menant, J.C., Steele, J.R., Menz, H.B., Munro, B.J., Lord, S.R. 2008. Effects of footwear features on balance and stepping in older people. Gerontology, 54, 18-23.

DOI: 10.1159/000115850
