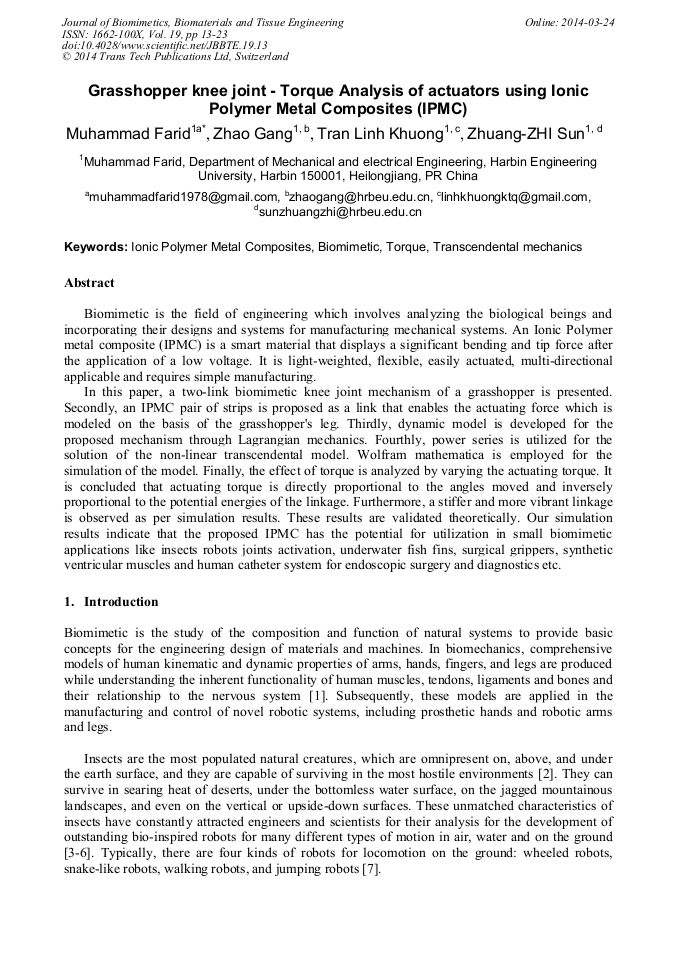

Grasshopper Knee Joint - Torque Analysis of Actuators Using Ionic Polymer Metal Composites (IPMC)

Abstract:

Biomimetic is the field of engineering which involves analyzing the biological beings and incorporating their designs and systems for manufacturing mechanical systems. An Ionic Polymer metal composite (IPMC) is a smart material that displays a significant bending and tip force after the application of a low voltage. It is light-weighted, flexible, easily actuated, multi-directional applicable and requires simple manufacturing. In this paper, a two-link biomimetic knee joint mechanism of a grass hopper is presented. Secondly, an IPMC pair of strips is proposed as a link that enables the actuating force which is modeled on the basis of the grass hopper's leg. Thirdly, dynamic model is developed for the proposed mechanism through Lagrangian mechanics. Fourthly, power series is utilized for the solution of the non-linear transcendental model. Wolfram mathematica is employed for the simulation of the model. Finally, the effect of torque is analyzed by varying the actuating torque. It is concluded that actuating torque is directly proportional to the angles moved and inversely proportional to the potential energies of the linkage. Furthermore, a stiffer and more vibrant linkage is observed as per simulation results. These results are validated theoretically. Our simulation results indicate that the proposed IPMC has the potential for utilization in small biomimetic applications like insects robots joints activation, underwater fish fins, surgical grippers, synthetic ventricular muscles and human catheter system for endoscopic surgery and diagnostics etc.

• Periodical: Journal of Biomimetics, Biomaterials and Tissue Engineering (Volume 19)
• Pages: 13-23
• DOI: https://doi.org/10.4028/www.scientific.net/JBBTE.19.13
• Online since: March 2014
• Authors: Muhammad Farid*, Zhao Gang, Tran Linh Khuong, Zhuang Zhi Sun
• Keywords: Biomimetic, Ionic Polymer Metal Composite (IPMC), Torque, Transcendental Mechanics

References

[1] Information on www. whatis. techtarget. com/definition/biomimetics.

[2] Akle Barber et al; Design and development of Bio-inspired Underwater jellyfish Robot using Ionic polymer metal composites (IPMC) Actuators, Electroactive Polymers actuators and devices, 79 (2011), 11.

DOI: 10.1117/12.881993

[3] Viljar Palmere et al; An IPMC-enabled bio-inspired bending/twisting fin for underwater applications, Smart material and Structures, 22 (2011), 12.

[4] Jaewook Ryu et al; A ciliary motion based 8-legged walking micro-robot using cast IPMC actuators, International Symposium on micro-mechatronics and human science, 78 (2002).

DOI: 10.1109/mhs.2002.1058016

[5] Nguyen Q et al; Characteristics of a beetle's free flight and a flapping-wing system that mimics beetle flight, Journal of Bionic Engineering, 7 (2010), 77–86.

DOI: 10.1016/s1672-6529(09)60195-5

[6] Wood R J., The first takeoff of a biologically inspired at-scale robotic insect, IEEE Transactions on Robotics. 24 (2008), 341–347.

DOI: 10.1109/tro.2008.916997

[7] D, Quinn R., Insect designs for improved robot mobility, Proceedings of 4th International Conference on Climbing and Walking Robots, Karlsruhe, Germany, (2001), 69–76.

[8] Information on www. st-andrews. ac. uk.

[9] Shahinpoor M, Bar-Cohen Y, Simpson J.O., Motion Sensors and Actuators Based on Ionic Polymer-Metal Composites, smart Material and Structure, 7 (1998), 15-30.

[10] Shahinpoor, M. and Kim, J.K., Ionic Polymer metal Composites: Industrial and medical applications IV, Smart Material and Structures, 14 (2005), 197-214.

DOI: 10.1088/0964-1726/14/1/020

[11] KHATTAK Muhammad Farid et al; Dynamic Modeling and Simulation of Ionic Polymer Metal Composites (IPMC) Actuated Manipulator, Journal of Applied Science, (2013), (Accepted and under publication process).

[12] E. Abedi, A. Ahmadi Nadooshan, and S. Salehi, Dynamic Modeling of Tow Flexible Link, World Academy of Science, Engineering and Technology, 22.

[2008] .
