Deflection Analysis of Non Prismatic Beam with Trapezoidal Sectorial Section with Uniformly Perpendicular Loading Condition

Chetankumar M. Patel; Kartik D. Kothari; Ghanshyam D. Acharya

doi:10.4028/www.scientific.net/JERA.26.1

Paper Titles

Deflection Analysis of Non Prismatic Beam with Trapezoidal Sectorial Section with Uniformly Perpendicular Loading Condition
p.1

Numerical Estimation of Rolling Load and Torque for Hot Flat Rolling of HCSS316 at Low Strain Rates Based on Mean Temperature
p.11

Investigation of Functionally Graded Aluminium A356 Alloy and A356-10%SiC_p Composite for Hydro Turbine Bucket Application
p.30

Principles and Baseline Knowledge of Functionally Graded Aluminium Matrix Materials (FGAMMs): Fabrication Techniques and Applications
p.47

Multi Response Optimization by Using the Hybrid Technique in Electro Discharge Machining of AISI 304
p.68

Comparative Study of Solar Water Heating Systems - Flat Plate Collector (FPC) with Evacuated Tube Collector
p.76

Renewable Night Cooled Chill Water Source for Energy Efficient Indoor Radiant Cooling
p.86

Active Vibration Control for Base-Isolated Structures Using a PID Controller against Earthquakes
p.99

Performance Comparison of STBC-OFDM with Maximum Likelihood Detection for Rayleigh Fading Channel
p.111

HomeInternational Journal of Engineering Research in...International Journal of Engineering Research in...Deflection Analysis of Non Prismatic Beam with...

Deflection Analysis of Non Prismatic Beam with Trapezoidal Sectorial Section with Uniformly Perpendicular Loading Condition

Abstract:

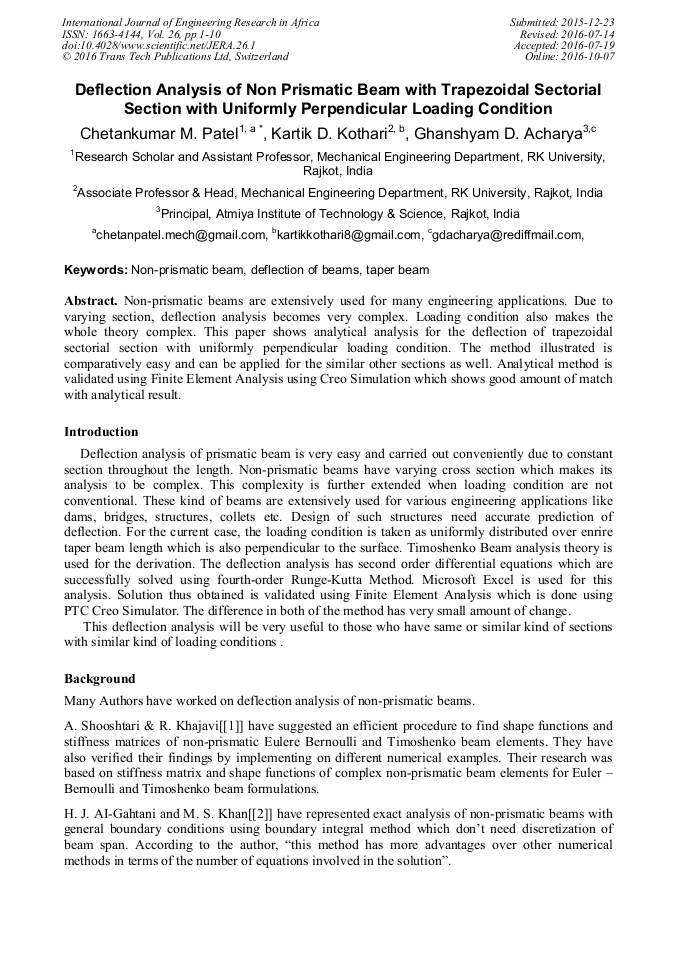

Non-prismatic beams are extensively used for many engineering application. Due to varying section, deflection analysis becomes very complex. Loading condition also makes the whole theory complex. This paper shows analytical analysis for the deflection of trapezoidal sectorial section with uniformly perpendicular loading condition. The method illustrated is comparatively easy and can be applied for the similar other sections as well. Analytical method is validated using Finite Element Analysis using Creo Simulation which shows good amount of match with analytical result.

You might also be interested in these eBooks

International Journal of Engineering Research in Africa Vol. 26

View Preview

Info:

Periodical:

International Journal of Engineering Research in Africa (Volume 26)

Pages:

1-10

DOI:

https://doi.org/10.4028/www.scientific.net/JERA.26.1

Citation:

Cite this paper

Online since:

October 2016

Authors:

Chetankumar M. Patel*, Kartik D. Kothari, Ghanshyam D. Acharya

Keywords:

Deflection of Beam, Non-Prismatic Beam, Taper Beam

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Shooshtari A., Khajavi R., An efficient procedure to find shape functions and stiffness matrices of nonprismatic Eulere Bernoulli and Timoshenko beam elements, European Journal of Mechanics / A Solids, vol. 29, (2010) p.826–836.

DOI: 10.1016/j.euromechsol.2010.04.003

Google Scholar

[2] Ai-Gahtani, H. J., Khan, M. S., Exact Analysis of Nonprismatic Beams, Journal of Engineering Mechanics, 124, (1998), 1290–1293.

DOI: 10.1061/(asce)0733-9399(1998)124:11(1290)

Google Scholar

[3] Shahba, A., Attarnejad, R., Hajilar S. A., Mechanical-Based Solution for Axially Functionally Graded Tapered Euler-Bernoulli Beams, Mechanics of Advanced Materials and Structures, (2013) 20(8), 696–707.

DOI: 10.1080/15376494.2011.640971

Google Scholar

[4] Allahvirdizadeh, R., Attarnejad, R., Rashetnia, R., Mehdipanah, A., Combining Integrated Force Method and Basic Displacement Functions to Solve Nonprismatic Beams, 9th International Congress on Civil Engineering, May 8-10, (2012).

Google Scholar

[5] Irez, Arnulfo Luevanos Rojas, J. M. R., Mathematical model for rectangular beams of variable cross section of symmetrical linear shape for uniformly distributed load, International Journal of Innovative Computing, Information and Control, 10(2), 545–564, (2014).

Google Scholar

[6] Gere M. James, Mechanics of Materials, Sixth edition, Cengage Learning, (2008).

Google Scholar

[7] Tay, Kim Gaik; Kek, Sie Long; and Abdul-Kahar, Rosmila, A Spreadsheet Solution of a System of Ordinary Differential Equations Using the Fourth-Order Runge-Kutta Method, Spreadsheets in Education (eJSiE): Vol. 5: Iss. 2, Article 5(2012).

DOI: 10.1016/j.sbspro.2015.08.145

Google Scholar
