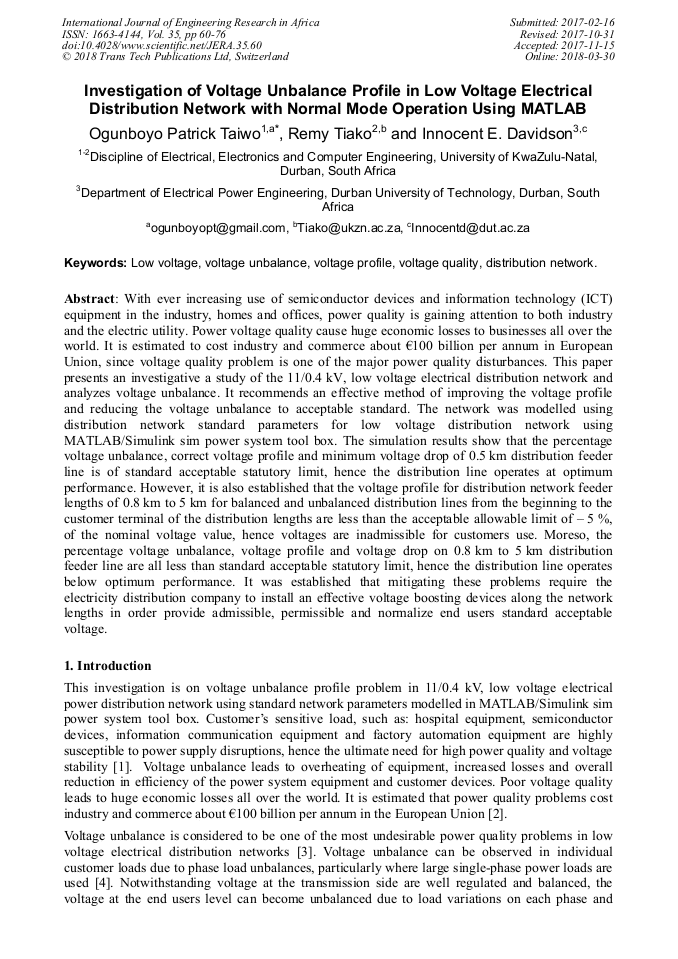

Investigation of Voltage Unbalance Profile in Low Voltage Electrical Distribution Network with Normal Mode Operation Using MATLAB

Abstract:

With ever increasing use of semiconductor devices and information technology (ICT) equipment in the industry, homes and offices, power quality is gaining attention to both industry and the electric utility. Power voltage quality cause huge economic losses to businesses all over the world. It is estimated to cost industry and commerce about €100 billion per annum in European Union, since voltage quality problem is one of the major power quality disturbances. This paper presents an investigative a study of the 11/0.4 kV, low voltage electrical distribution network and analyzes voltage unbalance. It recommends an effective method of improving the voltage profile and reducing the voltage unbalance to acceptable standard. The network was modelled using distribution network standard parameters for low voltage distribution network using MATLAB/Simulink sim power system tool box. The simulation results show that the percentage voltage unbalance, correct voltage profile and minimum voltage drop of 0.5 km distribution feeder line is of standard acceptable statutory limit, hence the distribution line operates at optimum performance. However, it is also established that the voltage profile for distribution network feeder lengths of 0.8 km to 5 km for balanced and unbalanced distribution lines from the beginning to the customer terminal of the distribution lengths are less than the acceptable allowable limit of – 5 %, of the nominal voltage value, hence voltages are inadmissible for customers use. Moreso, the percentage voltage unbalance, voltage profile and voltage drop on 0.8 km to 5 km distribution feeder line are all less than standard acceptable statutory limit, hence the distribution line operates below optimum performance. It was established that mitigating these problems require the electricity distribution company to install an effective voltage boosting devices along the network lengths in order provide admissible, permissible and normalize end users standard acceptable voltage.

• Periodical: International Journal of Engineering Research in Africa (Volume 35)
• Pages: 60-76
• DOI: https://doi.org/10.4028/www.scientific.net/JERA.35.60
• Online since: March 2018
• Authors: Patrick Taiwo Ogunboyo, Remy Tiako, Innocent Davidson
• Keywords: Distribution Network, Low Voltage, Voltage Profile, Voltage Quality, Voltage Unbalance

References

[1] Goswani A et al (2011) Minimization of voltage sag induced financial losses in distribution systems using FACTS devices. Electric Power Systems Research. 81(3): 767-774.

DOI: 10.1016/j.epsr.2010.11.003

[2] De Keulenaer H (2003) The hidden cost of poor power quality. European copper institute.

[3] Ghosh A, Ledwich G (2004) Power quality enhancement using custom power devices, Kluwer Academic Publishers, ISBN: 1402071809.

[4] Short TA (2004) Electric Power Distribution Handbook, CRC Press.

[5] Jouanne AV, Banergee B (2007) Assessment of voltage unbalance," IEEE Trans. On Power Delivery, Vol. 16, No. 4, pp.782-790.

DOI: 10.1109/61.956770

[6] Gnacinski P (2008) windings temperature and loss of life of an induction machine under voltage unbalance combined with over-or undervoltages," IEEE Trans. On Energy Conversion, Vol. 23, No. 2, pp.363-371.

DOI: 10.1109/tec.2008.918596

[7] Pillary P, Manyage M (2006) Loss of life in induction machines operating with unbalanced supplies," IEEE Trans. On Energy Conversion, Vol. 21, No. 4, pp.813-822.

DOI: 10.1109/tec.2005.853724

[8] IEEE Recommended Practice for Monitoring Electric Power Quality,, IEEE Std 1159-1995, p.i, (1995).

[9] Singh AK et al (2007) Some Observation on Definitions of Voltage Unbalance," in Power Symposium. NAPS 07. 39th North American, pp.473-479.

DOI: 10.1109/naps.2007.4402352

[10] Garcia DC et al (2009) Voltage unbalance numerical evaluation and minimization," Electric Power Systems Research, vol. 79, pp.1441-1445, (2009).

DOI: 10.1016/j.epsr.2009.04.016

[11] Kini PG et al (2007) A Novel Approach toward Interpretation and Application of Voltage Unbalance Factor," Industrial Electronics, IEEE Transactions on, vol. 54, pp.2315-2322.

DOI: 10.1109/tie.2007.899935

[12] Gul O (2008) An Assessment of PQ and Electricity. Electrical PQ and Utilisation Journal.

[13] Hansen CW (1995) Power system state estimation using three phase model,".IEEE Transactions on Power Systems, vol. 10, No. 2 pp.818-824.

DOI: 10.1109/59.387922

[14] EN 50160 (1994) Voltage Characteristics in Public Distribution Systems. European Committee for Electro technical Standardization (CENELEC).

[15] Muljadi E, Schiferl R, Lipo TA (1985) Induction machine phase balancing by unsymmetrical thyristor voltage control," IEEE Trans. Industry Applications, vol. IA-21, no. 4, p.669–678.

DOI: 10.1109/tia.1985.349484

[16] Lee CY (1999) Effects of unbalanced voltage on the operation performance of a three-phase induction motor," IEEE Trans. Energy Conversion, vol.14, no. 2, p.202–208.

DOI: 10.1109/60.766984

[17] Broadwater RP, Khan AH, Shaalan HE, Lee RE (1993) Time varying load analysis to reduce distribution losses through reconfiguration , IEEE Trans. Power Delivery, vol. 8,no.1, pp.294-300.

DOI: 10.1109/61.180349
