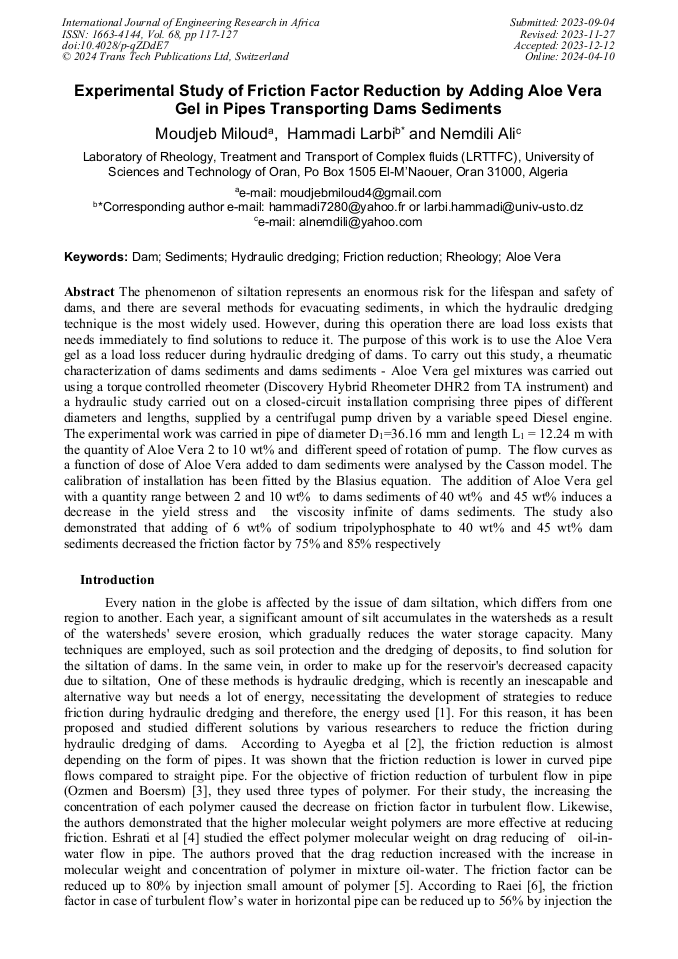

Experimental Study of Friction Factor Reduction by Adding Aloe Vera Gel in Pipes Transporting Dams Sediments

Abstract:

The phenomenon of siltation represents an enormous risk for the lifespan and safety of dams, and there are several methods for evacuating sediments, of which the hydraulic dredging technique is the most widely used. But during this operation there are load loss exists so it is necessary to find solutions to reduce it. The purpose of this work is to use the Aloe Vera gel as a load loss reducer during hydraulic dredging of dams. To carry out this study, a rheumatic characterization of dams sediments and dams sediments - Aloe Vera gel mixtures was carried out using a torque controlled rheometer (Discovery Hybrid Rheometer DHR2 from TA instrument) and a hydraulic study carried out on a closed-circuit installation comprising three pipes of different diameters and lengths, supplied by a centrifugal pump driven by a variable speed Diesel engine. The experimental work was carried in pipe of diameter D₁=36.16 mm and length L₁ = 12.24 m with the quantity of Aloe Vera 2 to 10 wt% and different speed of rotation of pump. The flow curves as a function of dose of Aloe Vera added to dam sediments were analysed by the Casson model. The calibration of installation has been fitted by the Blasius equation. The addition of Aloe Vera gel with a quantity range between 2 and 10 wt% to dams sediments of 40 wt% and 45 wt% induces an decrease in the yield stress and the viscosity infinite of dams sediments. The study also demonstrated that adding of 6 wt% of sodium tripolyphosphate to 40 wt% and 45 wt% dam sediments decreased the friction factor by 75% and 85% respectively

• Periodical: International Journal of Engineering Research in Africa (Volume 68)
• Pages: 117-127
• DOI: https://doi.org/10.4028/p-qZDdE7
• Online since: April 2024
• Authors: Moudjeb Miloud, Hammadi Larbi*, Nemdili Ali
• Keywords: Aloe Vera, Dam, Friction Reduction, Hydraulic Dredging, Rheology, Sediments

References

[1] L. Hammadi, A. Ponton, Rheological investigation of vase of dam: Effects of aging time, shear rate, and temperature, Applied Rheology 27 (2017) 21.

[2] P. O. Ayegba, L.C. Edomwonyi‐Out, N. Yusuf , A. Abubakar , A review of drag reduction by additives in curved pipes for single‐phase liquid and two‐phase flows,  Engineering Reports . 3(2011) 12294.

DOI: 10.20944/preprints202001.0031.v1

[3] Y. Ozmen , B.J. Boersma B. J, An experimental study on friction reducing polymers in turbulent pipe flow, Ocean Engineering. 274 (2003) 114039.

DOI: 10.1016/j.oceaneng.2023.114039

[4] M. Eshrati, T. Al-Wahaibi , A.R. Al-Hashmi , Y. Al-Wahaibi , A. Al-Ajmi, A. Abubakar, Significance of polymer elasticity on drag reduction performance in dispersed oil-in-water pipe flow. Chemical Engineering, Research and Design. 182 (2022) 571.

DOI: 10.1016/j.cherd.2022.04.020

[5] M.A. Asidin, E. , T. Jusnukin , F.A. Lahin , Review on the applications and developments of drag reducing polymer in turbulent pipe flow, Chinese Journal of Chemical Engineering. 27(2019) 1921.

DOI: 10.1016/j.cjche.2019.03.003

[6] B. Raei, The effect of polymeric drag reducing agent on pressure drop reduction in circular pipes: Experimental and statistical investigation, Journal of the Indian Chemical Society . 100(2023) 100905.

DOI: 10.1016/j.jics.2023.100905

[7] P. Treegosol, J. Priyadumkol, W. Kamutavanich, K. Katchasuwanmanee, W.Chaiworapuek, Experimental investigation of the heat transfer and friction loss of turbulent flow in circular pipe under low-frequency ultrasound propagation along the mainstream flow, Ultrasonics. 128 (2023) 106866.

DOI: 10.1016/j.ultras.2022.106866

[8] A. Utomo, A. Riadi, Drag reduction using additives in smooth circular pipes based on experimental approach, Processes.  9(2021) 1596.

DOI: 10.3390/pr9091596

[9] H.A. Abdulbari, Mohd Yunus , K. Letchmanan, Drag Reduction Characteristics Using Aloe Vera Natural Mucilage: An Experimental Study, Journal of Applied Sciences. 11(2011) 1039.

DOI: 10.3923/jas.2011.1039.1043

[10] A.I. Dosumu, L.C. Edomwonyi-Out, A. Abubakar, Y. Nurudeen, Effectiveness of Natural Gums as Drag Reducing Agent in Oil-Water Flows, Nigerian Journal of Materials Science and Engineering (NJMSE). 8(2018)44 .

[11] M.N. Abdallah, L.C. Edomwonyi-, A. Yusuf N, Baba , Aloe Vera mucilage as drag reducing agent in oil-water flow. Arid Zone Journal of Engineering, Technology and Environment. 15(2019) 248.

[12] Q. Quan , S. Wang , L. Wang ,Y. Shi, J. Xie , X. Wang , S. Wang , Experimental study on the effect of high-molecular polymer as drag reducer on drag reduction rate of pipe flow, Journal of Petroleum Science and Engineering. 178(2019) 852.

DOI: 10.1016/j.petrol.2019.04.013

[13] M.M. Gimba, L.C. Edomwonyi-Out , N. Yusuf, A. Abubakar , Drag reduction with polymer mixtures in pipes of different diameters. Arid Zone, Journal of Engineering, Technology and Environment. 15(2019) 792.

[14] L.C. Edomwonyi-Out, A.I. Dosumu, N. Yusuf,) Effect of oil on the performance of biopolymers as drag reducers in fresh water flow, Heliyon. 7(2021) 06535.

DOI: 10.1016/j.heliyon.2021.e06535

[15] X. Zhang, X. Duan, Y. Muzychka, Degradation of flow drag reduction with polymer additives—A new molecular view, Journal of Molecular Liquids. 292(2019) 111360

DOI: 10.1016/j.molliq.2019.111360

[16] T.I. Józsa, E. Balaras, M. Kashtalyan, A.G.L. Borthwick, I.M. Viola, On the friction drag reduction mechanism of streamwise wall fluctuations, International Journal of Heat and Fluid Flow. 86 (2020) 108686.

DOI: 10.1016/j.ijheatfluidflow.2020.108686

[17] T. Tanaka, Y. Oishi, H.J. Park, Y. Tasaka , Y. Murai, C. Kawakita) Frictional drag reduction caused by bubble injection in a turbulent boundary layer beneath a 36-m-long flat-bottom model ship, Ocean Engineering. 252(2022) 111224.

DOI: 10.1016/j.oceaneng.2022.111224

[18] D. Kulmatova, F. Hadri , S. Guillou, D. Bonn , Turbulent viscosity profile of drag reducing rod-like polymers, The European Physical Journal. E 41 (2018) 1

DOI: 10.1140/epje/i2018-11751-3

[19] M.A. Asidin, E. Suali, T. Jusnukin , F.A. Lahin, Observation on the drag reducing effect of low concentration chitosan solution in turbulent pipe flow, In IOP Conference Series: Materials Science and Engineering. 606 (2019) 012008).

DOI: 10.1088/1757-899x/606/1/012008

[20] J.H. Burger, R. Haldenwang , R.P. Chhabra, N.J Alderman, Power law and composite power law friction factor correlations for laminar and turbulent non-Newtonian open channel flow, Journal of the Brazilian Society of Mechanical Sciences and Engineering. 37 (2015) 601-612.

DOI: 10.1007/s40430-014-0188-1

[21] C. Bergane, L. Hammadi, Impact of organophilic clay on rheological properties of gasoil-based drilling muds, Journal of Petroleum Exploration and Production Technology. 10 (2020) 3533-3540.

DOI: 10.1007/s13202-020-01008-x

[22] F.A. Rayhan, R. Rizal, Pressure drop and non-Newtonian behavior of ice slurry in a horizontal pipe, Journal of the Brazilian Society of Mechanical Sciences and Engineering. 44(2022) 200.

DOI: 10.1007/s40430-022-03503-0

[23] V.V. Matabura, L.M. Rweyemamu , Effects of Xanthan gum on rheological properties of Aloe Vera-Moringa leaf juice blends, Tanzania Journal of Science. 47( 2021) 583-596.

DOI: 10.4314/tjs.v47i2.14

[24] N.R. Swami Hulle, K. Patruni, P.S. Rao, Rheological Properties of Aloe Vera (Aloe barbadensis Miller) Juice Concentrates, Journal of Food Process Engineering. 37(2014)375-386.

DOI: 10.1111/jfpe.12093

[25] F. Saad, A.L. Mohamed , M. Mosaad , H.A. Othman, A.G. Hassabo , Enhancing the rheological properties of aloe vera polysaccharide gel for use as an eco-friendly thickening agent in textile printing paste, Carbohydrate Polymer Technologies and Applications. 2(2021) 100132.

DOI: 10.1016/j.carpta.2021.100132

[26] T. Shende, V.J. Niasar, M. Babaei , Effective viscosity and Reynolds number of non-Newtonian fluids using Meter model. Rheologica Acta , 60 (2021) 11-21.

DOI: 10.1007/s00397-020-01248-y

[27] M. Danish, S. Kumar, Approximate explicit analytical expressions of friction factor for flow of Bingham fluids in smooth pipes using Adomian decomposition method, Communications in Nonlinear Science and Numerical Simulation. 16 (2011) 239-251.

DOI: 10.1016/j.cnsns.2010.03.013

[28] P.K. Swamee, N. Aggarwal, Explicit equations for laminar flow of Bingham plastic fluids, Journal of Petroleum Science and Engineerin. 76 (2011) 178-184.

DOI: 10.1016/j.petrol.2011.01.015

[29] S.Nash, D.A.S. Rees The effect of microstructure on models for the flow of a Bingham fluid in porous media: one-dimensional flows, Transport in Porous Media. 116 (2017) 1073-1092.

DOI: 10.1007/s11242-016-0813-9

[30] M.I. Pinzon, O.R. Garcia, C.C. Villa, The influence of Aloe vera gel incorporation on the physicochemical and mechanical properties of banana starch‐chitosan edible films. Journal of the Science of Food and Agriculture, 98(2018), 4042-4049.

DOI: 10.1002/jsfa.8915

[31] B. Bharathan, M. McGuinness, S. Kuhar, M. Kermani, F.P. Hassani, A.P. Sasmito , Pressure loss and friction factor in non-Newtonian mine paste backfill: modelling, loop test and mine field data, Powder technology. 344 (2019) 443-453.

DOI: 10.1016/j.powtec.2018.12.029

[32] P. Kiran, P.S. Rao , Rheological and structural characterization of prepared aqueous Aloe vera dispersions, Food research international. 62(2014)1029-1037.

DOI: 10.1016/j.foodres.2014.05.033

[33] E.J. Soares, R.N. Siqueira, L.M. Leal, K.C. Barbosa, D.F. Cipriano, J.C. Freitas , ) The role played by the aging of aloe vera on its drag reduction properties in turbulent flows, Journal of Non-Newtonian Fluid Mechanics. 265 (2019) 1-10.

DOI: 10.1016/j.jnnfm.2018.12.010

[34] S. Baheri Islami, M. Khezerloo, R. Gharraei, The effect of chaotic advection on mixing degree and pressure drop of non-Newtonian fluids flow in curved micromixers, Journal of the Brazilian Society of Mechanical Sciences and Engineering. 39 (2017) 813-831.

DOI: 10.1007/s40430-016-0689-1

[35] B. Lakhache, L. Hammadi, L. Gaidi, Impact of Sodium Tripolyphosphate on the Rheological Properties of Dams Sediments and Friction Factor during Hydraulic Dredging of Dams. Advanced Materials Research. 1177 (2023) 111-120.

DOI: 10.4028/p-5r18f6

[36] E. J. Soares, R. N. Siqueira, L.M. Leal, K.C. Barbosa, D.F. Cipriano, J.C. Freitas, The role played by the aging of aloe vera on its drag reduction properties in turbulent flows. Journal of Non-Newtonian Fluid Mechanics. 265(2019) 1-10.

DOI: 10.1016/j.jnnfm.2018.12.010

[37] M.Bagum, J.M. Ahammad, T. Husain, M.E Hossain, An experimental study to develop an environmental friendly mud additive of drilling fluid using Aloe Vera. Journal of Petroleum Science and Engineering.211(2022) 110135.

DOI: 10.1016/j.petrol.2022.110135

[38] R.Tariq, Z. Khurshid, W.A Farooqui, N. Adanir, Anti-bacterial efficacy of Aloe vera against E. faecalis as compared to other intracanal medicaments: A systematic review and meta-analysis. The Saudi Dental Journal. (2023)

DOI: 10.1016/j.sdentj.2023.05.007

[39] M. González-Delgado, R. Minjares-Fuentes, M. Mota-Ituarte, A. Pedroza-Sandoval, F. Comas-Serra, J.J. Quezada-Rivera, A. Femenia, Joint water and salinity stresses increase the bioactive compounds of Aloe vera (Aloe barbadensis Miller) gel enhancing its related functional properties. Agricultural Water Management, 285 (2023) 108374.

DOI: 10.1016/j.agwat.2023.108374

[40] J. Yang, EMergy accounting for the Three Gorges Dam project: three scenarios for the estimation of non-renewable sediment cost. Journal of Cleaner Production, 112 (216) 3000-3006.

DOI: 10.1016/j.jclepro.2015.10.110

[41] S.K. Sonawane, J. S. Gokhale, M.Z. Mulla, V.R. Kandu, S. Patil, A comprehensive overview of functional and rheological properties of aloe vera and its application in foods. Journal of Food Science and Technology, 58(2021) 1217-1226.

DOI: 10.1007/s13197-020-04661-6

[42] N. Nikafkar, Y.V. Alroaia, S.A. eydariyeh, A.J. Schleiss, A.J. (2023), Economic and commercial analysis of reusing dam reservoir sediments. Ecological Economics.  204(2023) 107668.

DOI: 10.1016/j.ecolecon.2022.107668

[43] J. Queiroz, P. Gasparinetti, L.B. Bakker, F. Lobo, G. Nagel, Socioeconomic cost of dredge boat gold mining in the Tapajós basin, eastern Amazon. Resources Policy, 79(2022) 103102.

DOI: 10.1016/j.resourpol.2022.103102

[44] N. Svensson, A. Norén, O. Modin, K.K. Fedje, S. Rauch, A.M. Strömvall, Y. Andersson-Sköld, Integrated cost and environmental impact assessment of management options for dredged sediment. Waste Management, 138(2022) 30-40.

DOI: 10.1016/j.wasman.2021.11.031
