Microstructure Evolution and Mossbauer Spectroscopy Research of Nanostructured Ni3 Fe Intermetallic

Abstract:

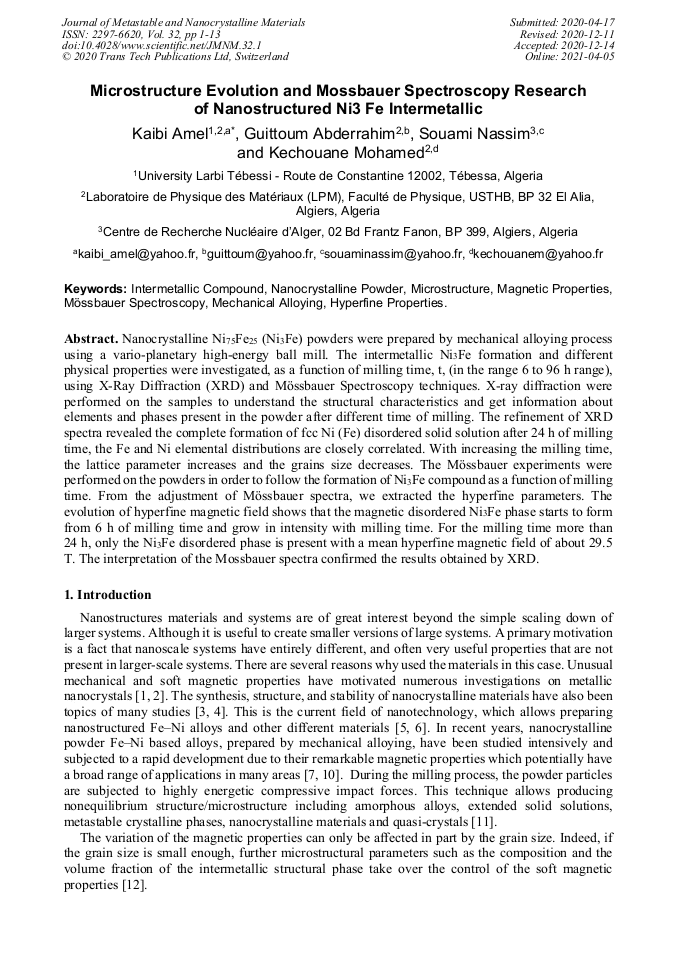

Nanocrystalline Ni₇₅Fe₂₅ (Ni₃Fe) powders were prepared by mechanical alloying process using a vario-planetary high-energy ball mill. The intermetallic Ni₃Fe formation and different physical properties were investigated, as a function of milling time, t, (in the range 6 to 96 h range), using X-Ray Diffraction (XRD) and Mössbauer Spectroscopy techniques. X-ray diffraction were performed on the samples to understand the structural characteristics and get information about elements and phases present in the powder after different time of milling. The refinement of XRD spectra revealed the complete formation of fcc Ni (Fe) disordered solid solution after 24 h of milling time, the Fe and Ni elemental distributions are closely correlated. With increasing the milling time, the lattice parameter increases and the grains size decreases. The Mössbauer experiments were performed on the powders in order to follow the formation of Ni₃Fe compound as a function of milling time. From the adjustment of Mössbauer spectra, we extracted the hyperfine parameters. The evolution of hyperfine magnetic field shows that the magnetic disordered Ni₃Fe phase starts to form from 6 h of milling time and grow in intensity with milling time. For the milling time more than 24 h, only the Ni₃Fe disordered phase is present with a mean hyperfine magnetic field of about 29.5 T. The interpretation of the Mossbauer spectra confirmed the results obtained by XRD.

• Periodical: Journal of Metastable and Nanocrystalline Materials (Volume 32)
• Pages: 1-13
• DOI: https://doi.org/10.4028/www.scientific.net/JMNM.32.1
• Online since: April 2021
• Authors: Amel Kaibi*, Abderrahim Guittoum, Nassim Souami, Mohamed Kechouane
• Keywords: Hyperfine Properties, Intermetallic Compound, Magnetic Properties, Mechanical Alloying, Microstructure, Mössbauer Spectroscopy, Nanocrystalline Powder

References

[1] E. Jartych, J. K. Zurawicz, D. Oleszak, M. Pekala, Xray diffraction, magnetization and Mossbauer studies of nanocrystalline Fe-Ni alloys prepared by low- And high-energy ball milling, J. Magn. Magn. Mater. 208(3) (2000) 221-230.

DOI: 10.1016/s0304-8853(99)00543-0

[2] H. Gleiter, Nanostructured materials basic concepts and microstructure, J. Acta Mater. 48 (2000) 1-29.

[3] H.N. Frase, R.D. Shull, L.B. Hong, T.A. Stephens, Z.Q. Gao, B. Fultz, Soft magnetic properties of nanocrystalline Ni3Fe and Fe75Al12.5Ge12.5, J. Nanostruc. Mater. 11 (1999) 987-993.

DOI: 10.1016/s0965-9773(00)00430-x

[4] C.B. Jiang, M. Venkatesan, J.M.D. Coey, Magnetic and structural properties of SmCo7AxTix magnets, J. Magn. Magn. Mater. 236 (2001) 49-55.

[5] G. Herzer, Nanocrystalline soft magnetic materials, J. Magn. Magn. Mater. 112 (1992) 258.

[6] J. S. Benjamin, Mechanical alloying, J. Sci. Am. 234 (1976) 40.

[7] J.J. Zhong, Y.G. Guo, J.G. Zhu, Z. W. Lin, Characteristics of soft magnetic composite material under rotating magnetic fluxes, J. Magn. Magn. Mater. 299 (2006) 29-34.

DOI: 10.1016/j.jmmm.2005.03.016

[8] B. V. Neamtu, I. Chicinas, O. Isnard, F. Popa, V. Popa, Influence of wet milling conditions on the structural and magnetic properties of Ni3Fe nanocrystalline intermetallic compound, J. Intermet. 19 (2011) 19-25.

DOI: 10.1016/j.intermet.2010.09.004

[9] R. Hamzaoui, O. Elkedim, N. Fenineche, E. Gaffet, J. Craven, Structure and magnetic properties of nanocrystalline mechanically alloyed Fe- 10% Ni and Fe-20% Ni, J. Mater. Sci. Eng. 360 (2003) 299-305.

DOI: 10.1016/s0921-5093(03)00460-x

[10] R. Koohkan, S. Sharafi, H. Shokrollahi, K. Janghorban, Preparation of nanocrystalline Fe-Ni powders by mechanical alloying used in soft magnetic composites, J. Magn. Magn. Mater. 320 (2008) 1089-1094.

DOI: 10.1016/j.jmmm.2007.10.033

[11] I. Chicinaş, V. Pop, O. Isnard, J.M. Le Breton, J. Juraszek, Synthesis and magnetic properties of Ni3Fe intermetallic compound obtained by mechanical alloying, J. All. Comp. 352 (2003) 34-40.

DOI: 10.1016/s0925-8388(02)01135-0

[12] G. Herzer, Nanocrystalline soft magnetic alloys, in: K.H.J. Buschow, first ed., Handbook of Magnetic Materials, vol. 10, Elsevier Science B.V, 1997, p.415.

DOI: 10.1016/s1567-2719(97)10007-5

[13] L. Lutterotti, MAUD CPD Newsletter (IUCr), No. 24 (2000).

[14] D.B. Wiles and R.A. Young, A new computer program for Rietveld analysis of X-ray powder diffraction patterns, J. Appl. Cryst. 14 (1981) 149-151.

DOI: 10.1107/s0021889881008996

[15] L. François, Équations différentielles d'ordre un et applications, PhD thesis, University of Caen, 17 June (2009).

[16] S. Ouhenia, Simulation des diagrammes de diffraction par la méthode combinée : application aux systèmes CaCO3, PhD thesis, University of Caen, 15 December (2008).

[17] JCPDS Card No. 38 0419.

[18] A. Kaibi, A. Guittoum, N. Fenineche, N. Souami and M. Kechouane, Sens. Structural, Microstructural and magnetic properties of nanocrystalline Ni75Fe25 compound produced by mechanical alloying, J. Sens. Lett. 11 (2013) 1-7.

DOI: 10.1166/sl.2013.3069

[19] B. H. Meeves, G. S. Collins, Formation of the Ni3Fe by mechanical alloying, J. Hyperfine Interactions, 92 (1994) 955-958.

DOI: 10.1007/bf02065718

[20] C. N. Chinnasamy, A. Narayanasamy, N. Ponpandian, K. Chattopadhyay, M. Saravana-kumar, Order–disorder studies and magnetic properties of mechanically alloyed nanocrystalline Ni3Fe alloy, J. Mater. Sci. Eng. A304-306 (2001) 408-412.

DOI: 10.1016/s0921-5093(00)01518-5

[21] I. Chicinas, V. Pop, O. Isnard, Magnetic properties of Ni3Fe intermetallic compound obtained by mechanical alloying, J. Magn. Magn. Mater. 242–245 (2) (2002) 885-887.

DOI: 10.1016/s0304-8853(01)01332-4

[22] M. M. L. Castex, J. L. Lebrun, G. Maeder, J. M. Sprauel, Détermination des contraintes résiduelles par diffraction des rayons X, Ecole Nationale Supérieure d'Arts et Métiers, Publication Scientifique et Technique, 22 (1981).

DOI: 10.51257/a-v3-in8

[23] Information on http://www.physiqueindustrie.com/residual_stress.php / consult 1.10.(2007).

[24] C. Janot, L'effet Mössbauer et ses applications, Collection de Monographies de Physique, Masson et Cie (ed.), Paris, (1972).
