Study of Copper Tin Selenide Nanoparticles of Milled Powder and Thin Films

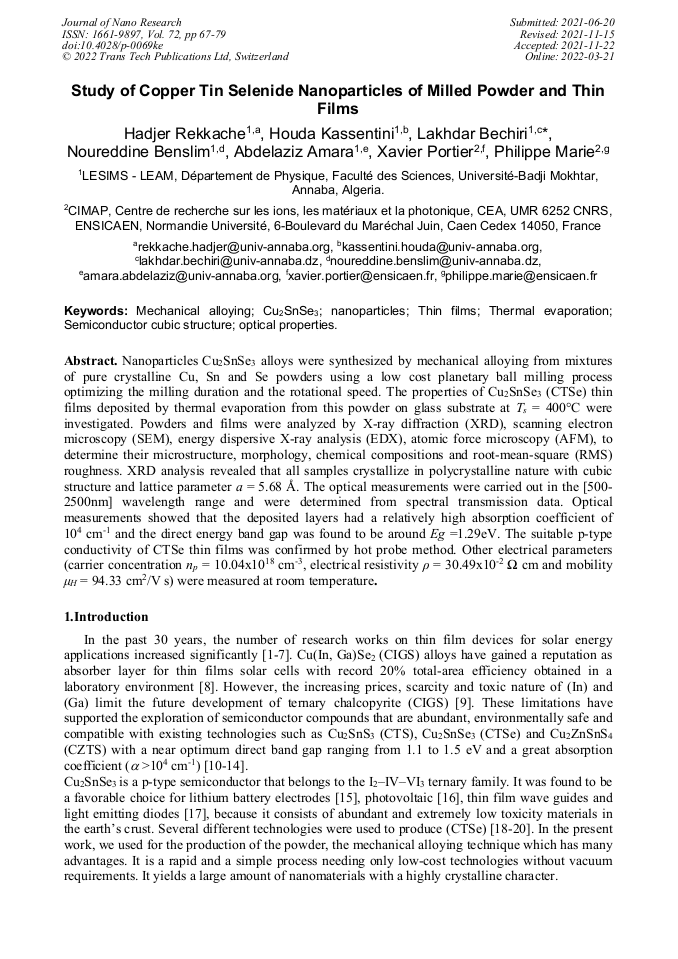

Article Preview

Abstract:

Nanoparticles Cu2SnSe3 alloys were synthesized by mechanical alloying from mixtures of pure crystalline Cu, Sn and Se powders using a low cost planetary ball milling process optimizing the milling duration and the rotational speed. The properties of Cu2SnSe3 (CTSe) thin films deposited by thermal evaporation from this powder on glass substrate at Ts = 400°C were investigated. Powders and films were analyzed by X-ray diffraction (XRD), scanning electron microscopy(SEM), energy dispersive X-ray analysis (EDX), atomic force microscopy (AFM), to determine their microstructure, morphology, chemical compositions and root-mean-square (RMS) roughness. XRD analysis revealed that all samples crystallize in polycrystalline nature with cubic structure and lattice parameter a = 5.68 Å. The optical measurements were carried out in the [500-2500nm] wavelength range and were determined from spectral transmission data. Optical measurements showed that the deposited layers had a relatively high absorption coefficient of 104 cm-1 and the direct energy band gap was found to be around Eg =1.29eV. The suitable p-type conductivity of CTSe thin films was confirmed by hot probe method. Other electrical parameters (carrier concentration np = 10.04x1018 cm-3, electrical resistivity ρ = 30.49x10-2 Ω cm and mobility μH = 94.33 cm2/V s) were measured at room temperature.

You might also be interested in these eBooks
Journal of Nano Research Vol. 72 View Preview

Info:

Periodical:

Journal of Nano Research (Volume 72)

Pages:

67-79

DOI:

https://doi.org/10.4028/p-0069ke

Citation:

Cite this paper

Online since:

March 2022

Authors:

Hadjer Rekkache, Houda Kassentini, Lakhdar Bechiri*, Noureddine Benslim, Abdelaziz Amara, Xavier Portier, Philippe Marie

Keywords:

Cu2SnSe3, Mechanical Alloying, Nanoparticles, Optical Properties, Semiconductor Cubic Structure, Thermal Evaporation, Thin Films

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2022 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author
