Rotational Speed and Torque of Axial-Flux Motor Using Sintered Iron Nano-Polycrystalline Body
p.133

Rotational Speed and Torque of Axial-Flux Motor Using Sintered Iron Nano-Polycrystalline Body

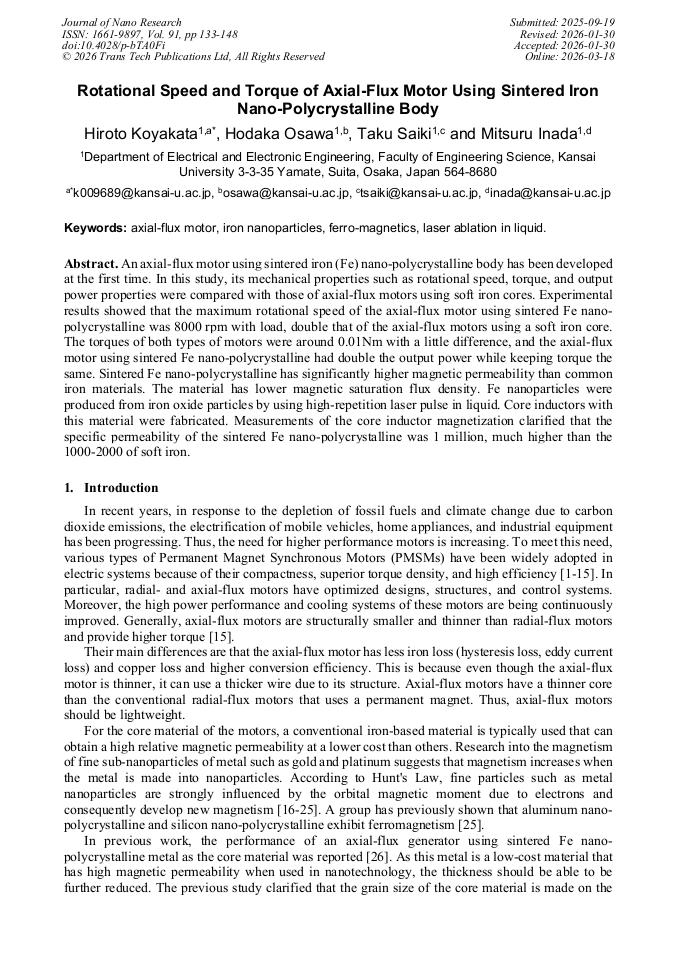

Article Preview

Abstract:

An axial-flux motor using sintered iron (Fe) nano-polycrystalline body has been developed at the first time. In this study, its mechanical properties such as rotational speed, torque, and output power properties were compared with those of axial-flux motors using soft iron cores. Experimental results showed that the maximum rotational speed of the axial-flux motor using sintered Fe nano-polycrystalline was 8000 rpm with load, double that of the axial-flux motors using a soft iron core. The torques of both types of motors were around 0.01Nm with a little difference, and the axial-flux motor using sintered Fe nano-polycrystalline had double the output power while keeping torque the same. Sintered Fe nano-polycrystalline has significantly higher magnetic permeability than common iron materials. The material has lower magnetic saturation flux density. Fe nanoparticles were produced from iron oxide particles by using high-repetition laser pulse in liquid. Core inductors with this material were fabricated. Measurements of the core inductor magnetization clarified that the specific permeability of the sintered Fe nano-polycrystalline was 1 million, much higher than the 1000-2000 of soft iron.

You might also be interested in these eBooks
Journal of Nano Research Vol. 91 View Preview

Info:

Periodical:

Journal of Nano Research (Volume 91)

Pages:

133-148

DOI:

https://doi.org/10.4028/p-bTA0Fi

Citation:

Cite this paper

Online since:

March 2026

Authors:

Hiroto Koyakata*, Hodaka Osawa, Taku Saiki, Mitsuru Inada

Keywords:

Axial-Flux Motor, Ferro-Magnetics, Iron Nanoparticles, Laser Ablation in Liquid

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author
