Engineering of Structural Phase Transition and Electrical Conductivity of Cadmium-Doped CZTS Films via the Direct Isometric Substitution

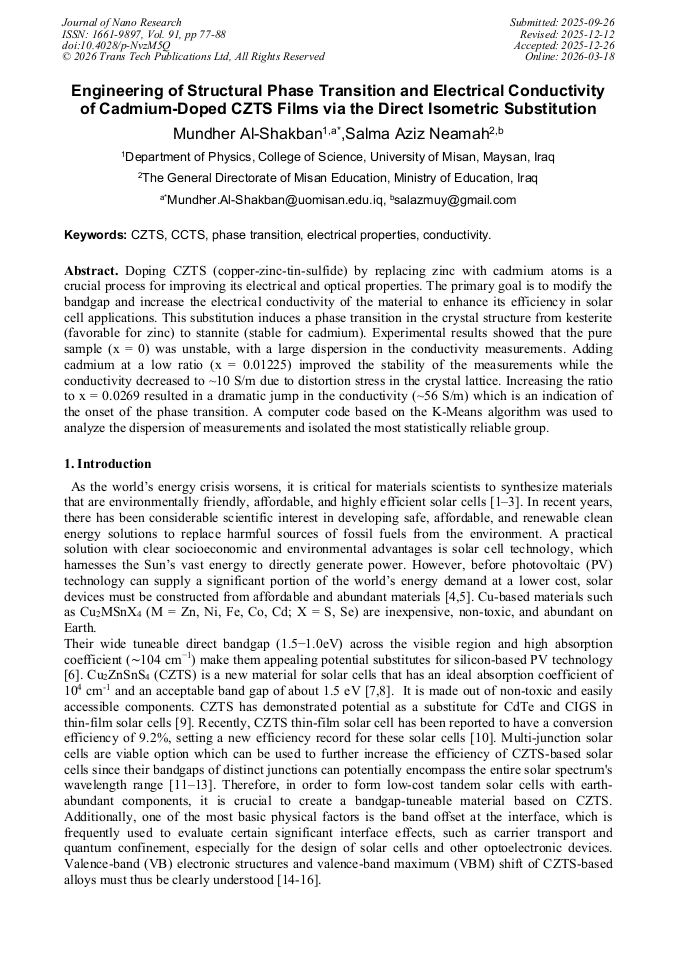

Article Preview

Abstract:

Doping CZTS (copper-zinc-tin-sulfide) by replacing zinc with cadmium atoms is a crucial process for improving its electrical and optical properties. The primary goal is to modify the bandgap and increase the electrical conductivity of the material to enhance its efficiency in solar cell applications. This substitution induces a phase transition in the crystal structure from kesterite (favorable for zinc) to stannite (stable for cadmium). Experimental results showed that the pure sample (x = 0) was unstable, with a large dispersion in the conductivity measurements. Adding cadmium at a low ratio (x = 0.01225) improved the stability of the measurements while the conductivity decreased to ~10 S/m due to distortion stress in the crystal lattice. Increasing the ratio to x = 0.0269 resulted in a dramatic jump in the conductivity (~56 S/m) which is an indication of the onset of the phase transition. A computer code based on the K-Means algorithm was used to analyze the dispersion of measurements and isolated the most statistically reliable group.

You might also be interested in these eBooks
Journal of Nano Research Vol. 91 View Preview

Info:

Periodical:

Journal of Nano Research (Volume 91)

Pages:

77-88

DOI:

https://doi.org/10.4028/p-NvzM5Q

Citation:

Cite this paper

Online since:

March 2026

Authors:

Mundher Al-Shakban*, Salma Aziz Neamah

Keywords:

CCTS, Conductivity, CZTS, Electrical Properties, Phase Transition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Mariotti, N., Bonomo, M., Fagiolari, L., Barbero, N., Gerbaldi, C., Bella, F., and Barolo. Recent advances in eco-friendly and cost-effective materials towards sustainable dye-sensitized solar cells. Green chem. 22 (2020) 7168-7218.‏

DOI: 10.1039/d0gc01148g

Google Scholar

[2] Al-Shakban, M., Matthews, P. D., Savjani, N., Zhong, X. L., Wang, Y., Missous, M., and O'Brien, P.. The synthesis and characterization of Cu2ZnSnS4 thin films from melt reactions using xanthate precursors. J. Mater. Sci. 52 (2017) 12761-12771.‏

DOI: 10.1007/s10853-017-1367-0

Google Scholar

[3] Ratnesh, R. K., Kumar, R., Singh, S., Chandra, R., and Singh, J. Recent advances in solar cell technology: addressing technological challenges, scenarios, and environmental implications in the development of sustainable energy solutions. New J Chem. (2025).

DOI: 10.1039/d5nj00719d/v2/response1

Google Scholar

[4] Akpasi, S. O., Smarte Anekwe, I. M., Tetteh, E. K., Amune, U. O., Mustapha, S. I., and Kiambi, S. L. Hydrogen as a clean energy carrier: Advancements, challenges, and its role in a sustainable energy future. Clean Energy, 9 (2025) 52-88.‏

DOI: 10.1093/ce/zkae112

Google Scholar

[5] Rondiya, S. R., Jadhav, Y., Dzade, N. Y., Ahammed, R., Goswami, T., De Sarkar, A., and Ghosh, H. N.. Experimental and Theoretical Study into Interface Structure and Band Alignment of the Cu2Zn1–xCdxSnS4 Heterointerface for Photovoltaic Applications. ACS Appl. Energy Mater. 3 (2020) 5153-5162.‏

DOI: 10.1021/acsaem.9b02314

Google Scholar

[6] Rondiya, S., Wadnerkar, N., Jadhav, Y., Jadkar, S., Haram, S., and Kabir, M.. Structural, electronic, and optical properties of Cu2NiSnS4: a combined experimental and theoretical study toward photovoltaic applications. Chem. Mater. 29 (2017) 3133-3142.‏

DOI: 10.1021/acs.chemmater.7b00149

Google Scholar

[7] Abdullahi, S., Momoh, M., Moreh, A. U., and Wara, A. M.. Preparation, Characterization, and Performance Optimization of Cu2ZnSnS4 (CZTS) Absorber Layer Deposited by Sol-Gel Spin Coating Technique. UMYU Scientifica, 4(2025), 1-18.‏

DOI: 10.56919/usci.2541.001

Google Scholar

[8] Padmapriyanka, P., Babu, P., and Ramakrishna Reddy, K. T.. Development of CZTS Monograins from Cu2S, ZnS, and SnS2 Nanopowders for Solar Cell Application. Ind. J. Sci. Technol. 18 (2025) 2235-2245.‏

DOI: 10.17485/ijst/v18i28.885

Google Scholar

[9] Sivasankar, S. M., de Oliveira Amorim, C., and da Cunha, A. F.. Progress in thin-film photovoltaics: A review of key strategies to enhance the efficiency of CIGS, CdTe, and CZTSSe solar cells. J. Compos. Sci. 9 (2025) 143.‏

DOI: 10.3390/jcs9030143

Google Scholar

[10] Dhakal, T. P., Peng, C. Y., Tobias, R. R., Dasharathy, R., and Westgate, C. R.. Characterization of a CZTS thin film solar cell grown by sputtering method. Solar Energy, 100(2014), 23-30.‏

DOI: 10.1016/j.solener.2013.11.035

Google Scholar

[11] Muhamad, S. A., and Lafta, M. H.. Strategic Review: The CZTS Thin-Film Using Tandem and Multi-Junction Solar Cell. Advances in Engineering and Intelligence Systems, 1(2022) 89-104.‏

Google Scholar

[12] Shah, U. A., Wang, A., Irfan Ullah, M., Ishaq, M., Shah, I. A., Zeng, Y., ... and Sun, K.. A deep dive into Cu2ZnSnS4 (CZTS) solar cells: a review of exploring roadblocks, breakthroughs, and shaping the future. Small, 20 (2024) 231-584.‏

DOI: 10.1002/smll.202310584

Google Scholar

[13] Jassim, S., Abbas, A., AL-Shakban, M., and Ahmed, L.. Chemical vapour deposition of cds thin films at low temperatures from cadmium ethyl xanthate. Egypt. J. Chem. 64 (2021) 2533-2538.‏

DOI: 10.21608/ejchem.2021.60695.3451

Google Scholar

[14] Xiao, Z. Y., Li, Y. F., Yao, B., Deng, R., Ding, Z. H., Wu, T., ... and Zhao, H. F.. Bandgap engineering of Cu2CdxZn1- xSnS4 alloy for photovoltaic applications: a complementary experimental and first-principles study. J. Appl. Phys. 114 (2013).‏

DOI: 10.1063/1.4829457

Google Scholar

[15] Song, Y., Zheng, X., Yang, Y., Liu, Y., Li, J., Wu, D., ... and Tian, X.. Heterojunction engineering of multinary metal sulfide‐based photocatalysts for efficient photocatalytic hydrogen evolution. Adv. Mater., 36 (2024) 2305835.

DOI: 10.1002/adma.202305835

Google Scholar

[16] Elshafie, A. A., Showahy, A. A., and Shaaban, E. R.. Optoelectronic characteristics for (Cu1− x Agx) 2 ZnSnS4 films. Int. J. Thin. Fil. Sci. Tec, 13 (2024), 249-262.‏

DOI: 10.18576/ijtfst/130309

Google Scholar

[17] Kangsabanik, M., and Gayen, R. N.. A comprehensive review on the recent strategy of cation substitution in CZTS (Se) thin films to achieve highly efficient kesterite solar cells. Solar RRL, 7 (2023) 2300670.‏

DOI: 10.1002/solr.202300670

Google Scholar

[18] Zaki, M. Y., and Velea, A.. Recent progress and challenges in controlling secondary phases in kesterite CZT (S/Se) thin films: A critical review. Energies, 17(2024) 1600.‏

DOI: 10.3390/en17071600

Google Scholar

[19] Ibraheam, A. S., Al-Douri, Y., Hashim, U., Ghezzar, M. R., Addou, A., and Ahmed, W. K.. Cadmium effect on optical properties of Cu2Zn1− xCdxSnS4 quinternary alloys nanostructures. Solar Energy, 114(2015) 39-50.

DOI: 10.1016/j.solener.2015.01.018

Google Scholar

[20] Cao, M., Li, L., Fan, W. Z., Liu, X. Y., Sun, Y., and Shen, Y.. Quaternary Cu2CdSnS4 nanoparticles synthesized by a simple solvothermal method. Chem. Phys. Lett. 534(2012) 34-37.‏

DOI: 10.1016/j.cplett.2012.03.016

Google Scholar

[21] Patel, M., I. Mukhopadhyay, and A. Ray. Structural, optical and electrical properties of spray-deposited CZTS thin films under a non-equilibrium growth condition. J. Phys. D Appl. Phys. 44 (2012) 445103.

DOI: 10.1088/0022-3727/45/44/445103

Google Scholar
